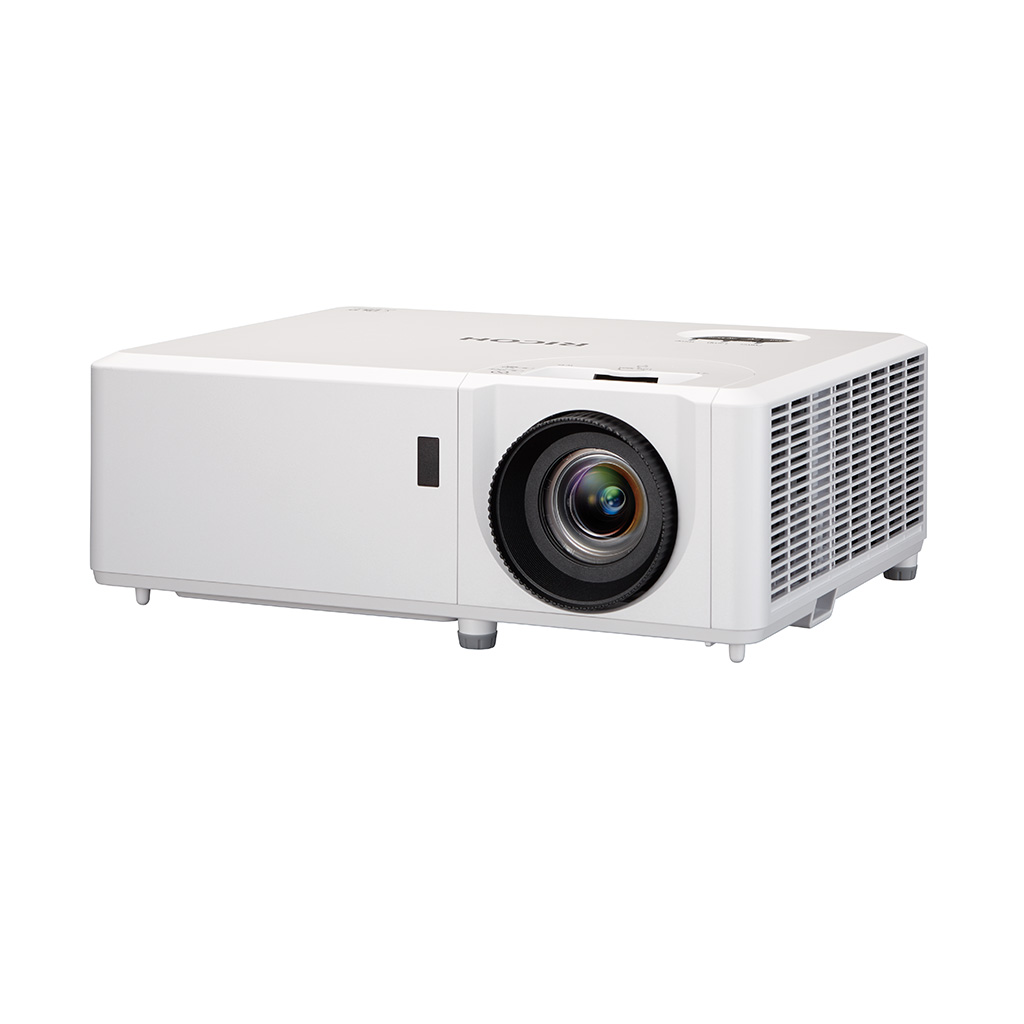

PJ WUL5860 4,000-lumen standard laser projector

  • 1,920 x 1,200 pixels (WUXGA)
  • 20,000-hour laser life
  • Maintenance-free projection
  • HDMI/MHL support
Related Links
Stunning, seamless presentations
Ready in an instant, this portable all-in-one solution brings your ideas to light

Shine a spotlight on your ideas

While the PJ WUL5860 delivers stunning presentations in regular meeting rooms and classrooms, as you would expect, you can also use it to create eye-catching digital signage.

Efficient energy usage

PJ WUL5860 features laser light source that delivers a long life of 20,000 hours. This means maintenance-free for uninterrupted presentations. You can even begin any presentation out of the box with its quick start time of 10 seconds.

  1. Bright, crystal-clear visuals
    4,000 lumens, 16:10 screen aspect ratio supports HD presentations
  2. Maintenance-free
    Laser light source eliminates the need to replace mercury lamps
  3. Superb projection
    Crisp and sharp display every time with vertical and horizontal keystone, vertical lens shift and four corner adjustment
  4. Flexible set-up
    Multi-angle projection allows you to present from any direction

Download PDF Brochure

Specifications

Projector type
Standard laser
What's included

Cables
Power cable—1.8 m
VGA cable—1.8 m

Remote control
Standard

Battery for remote control
2 x AAA size included

Carrier bag
No

Lens cap
Included

Quick Start Guide
6 languages

CD-ROM
User manual (PDF)

Physical dimensions (WxDxH)—mainframe
337 x 265 x 108 mm
Weight—mainframe
4.6 kg
Projection system
Standard laser
Contrast
800:1—Native Mode
50,000:1—High Contrast Mode
Aspect ratio
16:10
Brightness
4,000 lumens
Resolution
1,920 x 1,200 pixels (WUXGA)
Light source
Laser
Light source life
20,000h
Lens focal length
f:12.81–16.74 mm
Lens aperture
F:1.94–2.23
Zoom type
Digital, manual
Zoom ratio
1:3x
Focus method
Manual
Colour reproduction
92%
Projection size
29–303.1 inches
Projection distance
1.0–7.9 m
Projection ratio
1.21–1.59
Tilt angle
6°—mechanical
Lens shift
Vertical—manual
Keystone correction
Vertical ±30 degree—automatic
Horizontal ±30 degree—manual
Four corner adjustment
Supported
Projector modes
Normal, Ceiling, Rear, Rear Ceiling
Input signals
NTSC, PAL, SECAM
3D support
DLP Link, Auto, Side-by-side, Top and bottom, Frame sequential
Control system
PJ Link, Crestron, AMX Device Discovery, Extron
Speaker
2 x 8 W, stereo
Other supported features
Instant ON, Quick Power On, Remote ID up to 99, Dust proof design (IP5X), User logo, High contrast mode, Color Control (HSG, Memory, Memory by picture mode, Memory by input), Power on by AC input, Power on by signal input, Sleep timer, Power save on no signal, Skip input (Auto input search), Digital Zoom, Freeze, Mute, Test pattern (white, black, mesh, colour bar), Portrait Mode, 360-degree projection, 1 x IR receiver, 8 m remote control distance
Interfaces - standard

Computer IN
D-sub 15-pin x 1

Computer OUT
D-sub 15-pin x 1

Composite video terminal
Yes

Power out
USB Type A

Audio input terminal
Mini jack 3.5 mm x 1

Audio output terminal
Mini jack 3.5 mm x 1

Microphone
Mini jack 3.5 mm x 1

Control terminal
RS-232C 9-pin x 1
Mini USB Type B x 1
RJ45 LAN x 1

Digital terminal
HDMI1 x 1
HDMI2/MHL x 1

Kensington lock
Yes
Password protection of device
Yes
Other security features
Security lock
Supported languages

On screen display languages
English, Japanese, Simplified Chinese, German, French, Italian, Spanish, Polish, Swedish, Thai, Portuguese, Traditional Chinese, Arabic, Indonesian, Turkish, Norwegian, Danish, Dutch, Korean, Finnish, Czech, Hungarian, Russian

User manual languages
English, Japanese, Simplified Chinese, German, French, Italian, Spanish, Polish, Swedish, Thai, Portuguese, Traditional Chinese, Norwegian, Danish, Dutch, Russian

Quick Start Guide languages
English, German, French, Italian, Spanish, Portuguese

Power source
100–240 V, 50/60 Hz
Power consumption
300 W—Normal Mode, maximum
236.3 W—Normal Mode, 100 V
236.5 W—Normal Mode, 110 V
227.4 W—Normal Mode, 220 V
227.2 W—Normal Mode, 240 V
230 W—Eco Mode, maximum
187.3 W—Eco Mode, 100 V
186.5 W—Eco Mode, 110 V
179.1 W—Eco Mode, 220 V
178.4 W—Eco Mode, 240 V
Less than 2 W—Network Standby
Less than 0.5 W—Standby
Less than 0.4 W—Standby at 100 V
2.41 Amps rating at 100 V
2.23 Amps rating at 110 V
1.06 Amps rating at 220 V
1.00 Amp rating at 240 V
Sound power level
Normal Mode
34 dB or less—maximum
32 dB or less—typical

Eco Mode
33 dB or less—maximum
31 dB or less—typical
Environmental standards
EU REACH
EU Battery Directive (2006/66/EC)
Packaging and Packaging Waste Directive (94/62/EC) (Europe)
EU WEEE
ErP (Lot6) (Europe)
Safety standards
CE Marking (Europe)
TUV (Europe)
RPC (Taiwan)
DoC (Taiwan)
Electromagnetic Compatibility (EMC) standards
EMC Directive (Europe)
Australia EMC (C-Tick/RCM)
NZ EMC (C-Tick/RCM)
EMF EN62311 (CE) (Europe)
Operating environment
Temperature
0–40ºC—0–762 metres elevation
5–35ºC—763–1,524 metres
5–30ºC—1,525–3,048 metres (with High Altitude Mode)

Humidity
0–85%
Other environmental features
Eco Mode
