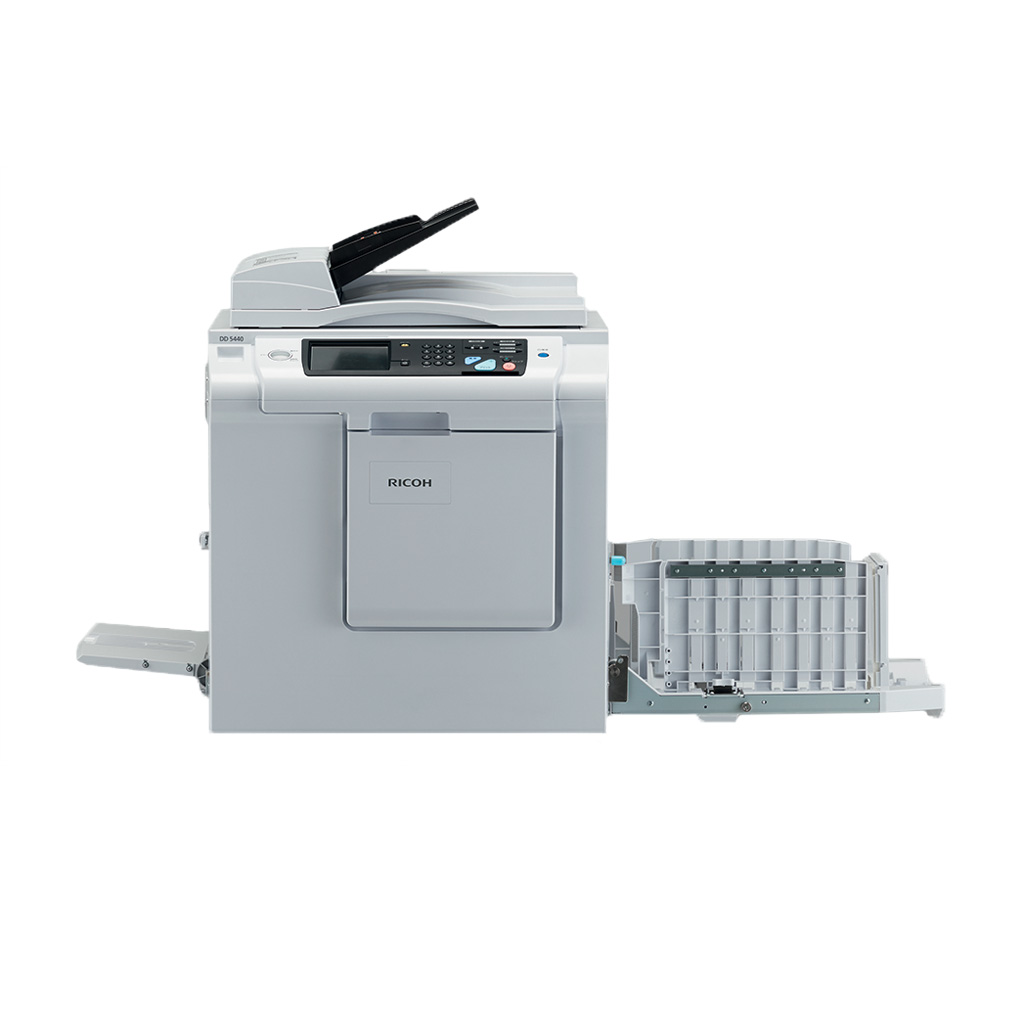

DD 5450 A3 digital duplicator

  • 18-second A3 master processing
  • 150 ppm
  • 300 x 600 dpi
  • 43,000 copies APV

User-friendly & high-speed digital duplicator for higher business efficiency

The DD 5450 is the next-generation digital duplicator that helps increase efficiency while offering simple operability. The high-speed machine prints up to 150 ppm (B4 and smaller) and is equipped with a full-colour LCD touch panel. Moreover, it has a system to feed and deliver up to as many as 1,500 sheets in a stable manner.

  1. Easy-to-use large-sized full-colour panel
    The large 5.7-inch control panel indicates the operation menu and gives guidance to both new and experienced users in an easy-to-understand manner
  2. Output of 150 ppm* for higher operation and efficiency
    The printing speed is 100 ppm in the standard mode and can be increased to 130 ppm in the speedy mode and to 150 ppm* in the top-speed mode
  3. Convenient USB Slot
    Directly print the data* that has been transferred from your PC to a USB memory device
  4. Paper feeding customizable for your workplace
    Feed and deliver up to as many as 1,500 sheets, and meets needs for voluminous outputs

Specifications

Functions

Copy, optional print

Colour printing supported by using optional colour drums

Colour
Yes
Operation panel
5.7-inch QVGA colour touch screen
Physical dimensions (WxDxH)—mainframe
770 x 688 x 715 mm—mainframe with platen cover, stored
Weight—mainframe
102 kg—mainframe with platen cover
Standard input capacity (sheets)
1,500—A4 and A3
Maximum input capacity (sheets)
1,500—A4 and A3
Standard output capacity (sheets)
1,500—A4 and A3
Maximum output capacity (sheets)
1,500—A4 and A3
Paper input configuration - standard
1,500-sheet paper feed tray
Paper output configuration - standard
1,500-sheet paper delivery tray
Maximum paper size
SRA3
Media weight (g/m2)
45–210
Interfaces - optional

10Base-T/100Base-Tx/1000Base-T
USB 2.0

Note: Available with the optional Printer  controller.

Copy speed

150 cpm—maximum for B4 and smaller

Controllable in 5 steps—45–130 cpm

Note: Image quality at maximum speed is not guaranteed.

Copy resolution
300 x 600 dpi—maximum scanning
600 x 600 dpi—master punch density
Zoom range
100%
Enlargement ratios
61%, 70%, 81%, 86%, 115%, 122%, 141%, 163%
Book copy
Supported
Print resolution
300 x 600 dpi
Page description languages (PDLs)
DPL
Windows
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Power source
220–240 V, 50–60 Hz
Power consumption
220 W—maximum top printing speed
85 W—master making, A3
110 W—printing, 45 ppm
160 W—printing, 100 ppm
190 W—printing, 130 ppm
7.4 W–Ready Mode
0 W—Energy Saver Mode, when not connected
Typical Electricity Consumption (TEC)
2.23 kWh
Other environmental features
Energy Saver Mode (LCD off)
