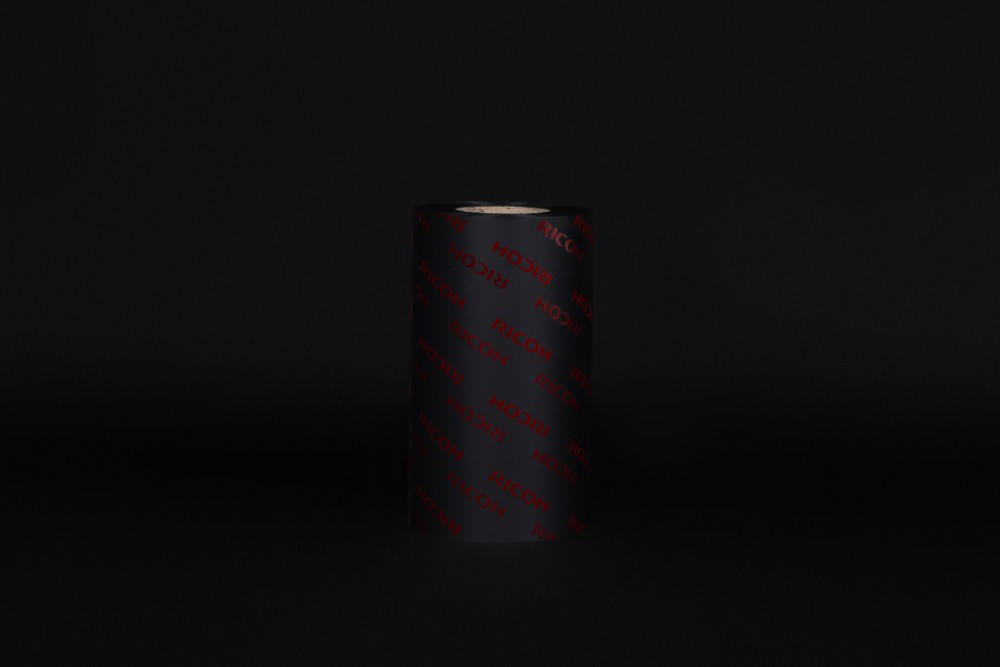

B110CU Harsh Environment Resin

Ideal for automotive, serial no. plates, circuit board labels and pharmaceutical applications
Produce very high resolution even when printing using a 600dpi thermal head
Excellent resistance to heat, chemicals, solvents and scratches
100°C corrugated cardboard scratch resistance

Ribbon Properties

Total ribbon thickness: < 9 μm
Polyester film thickness: 4.5 μm
Friction coefficient: <0.050
Ink melting point: 112°C
Tearing resistance: > 200N/mm²
Transmission density: 0.65 mini

Download Datasheet Request sample roll

Application

B110CU Durability

Storage Condition

Usage conditions: 5 to 35°C at 30 to 85% of relative humidity.

Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight.

Storage life: 24 months after production.

Printed Image Durability

TESTS	RESULT
Smear + heat 100°C Smear with cardboard (weight 1kg - 50 back & forwards)	ANSI A
Heat (250°C) Heat gradient 3.6kgF/cm²	No ink on fabric
Scratch 50 back and forwards with a rubbing tester	ANSI A
Light Xenon lamp at 650 W/m²	ANSI A
Water 24 hours in water	ANSI A

Certificates

Related products

***The above data represents product averages, allowing for industry accepted variances. These products should be tested in the end-use conditions to ensure that they meet the requirements of the specific application. Specifications may change without notice.
