Exceptional output
Produce impressive CAD drawings, from precise line drafts to boldly coloured 3D renders, with the highest accuracy and finest details.
Secure hub

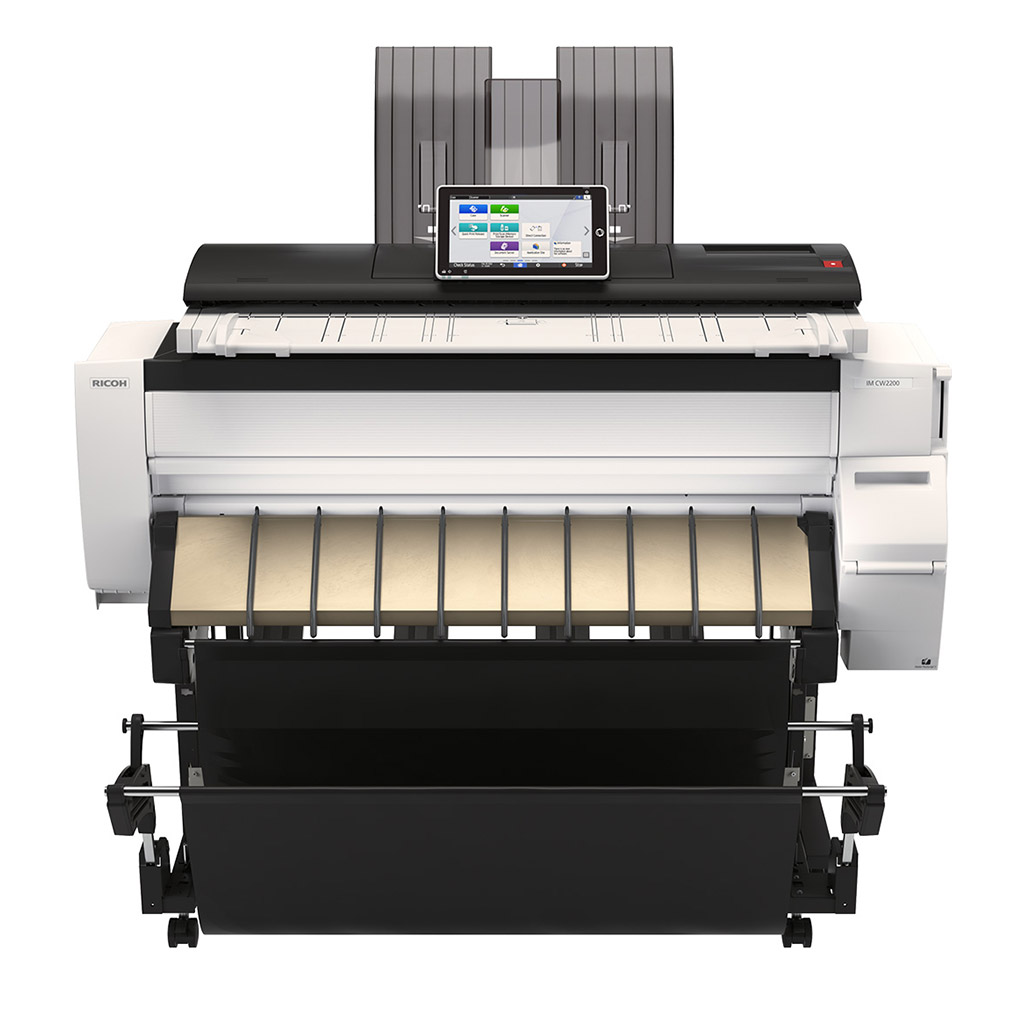

More than just a printing and scanning solution, the IM CW2200 acts as a secure document hub for technical files to share jobs easily and help enhance productivity.
Quick and effortless
Faster scanning speeds as well as new features such as automatic paper roll setting, 10-sheet original stacker, and max 33 m print length make document production a breeze.
- Fast and convenient
New automatic paper roll setting prints documents up to 33 m long and eliminates the need to manually feed the paper. - Integrate seamlessly in mixed fleet environments
Latest generation Smart Operation Panel offers an easy to navigate and intuitive interface, which is consistent with Ricoh's state-of-the-art A3 office devices, so no user training is required. - Professional and durable prints
Ricoh’s unique waterproof GEL-Jet™ technology with inks that are smudge-free and UV-resistant ensure the consistent production of high quality, durable prints. - Fit in anywhere
The small footprint makes the IM CW2200 flexible and ideal for a wide range of environments where space is an issue.
Specifications
- 功用
- Copy, print, scan
- 色彩
- Yes
- 打印機控制器 - 標準
- GWNX
- 存儲
- 320 GB
- 文件伺服器
- Supported
- CPU
- Intel Atom Processor Apollo Lake-I 1.6 GHz
- 記憶體 - 標準
- 4 GB
- 操作板面
- 10.1" Smart Operation Panel (G2.5)
- 實體尺寸（長闊高）—大型機
- 1,384 x 675 x 1,220 mm
- 實體尺寸（長闊高）—其他
- 1,108 x 432 x 398 mm—Roll Unit RU6570
- 重量—大型機
- 120 kg
- 重量—其他
- 14.5 kg—Roll Unit RU6570
- 平均月用打印量
- 120 m
- 平均打印量聲明
- Reliability targets are measured using A1 LEF paper width (841 mm) with 6% black and white/20% colour (5% x 4 colours) coverage, 40% colour ratio, and one page per job.
- 機器壽命
- 72,000 m or 5 years, whichever comes first
- PM循環
- 10,000 m
- 平均無故障影印量
- 3,125 m
- 消耗品量
- Black and white printing
529 copies or 314 m per 200 ml black cartridge
708 copies or 421 m per 100 ml cyan cartridge
699 copies or 415 m per 100 ml magenta cartridge
700 copies or 416 m per 100 ml yellow cartridge
Colour printing
352 copies or 209 m per 200 ml black cartridge
472 copies or 280 m per 100 ml cyan cartridge
466 copies or 277 m per 100 ml magenta and yellow cartridge
Note: All toner yields are measured using A1 LEF paper with 6% black and white/20% colour (5% x 4 colours) coverage, and a 40% colour ratio, 60% black and white ratio.
Waste tank capacity
425 ml or 5 years, whichever comes first
120 m
40% colour ratio
Waste tank use conditions
23 degrees Celcius and 50% humidity
- 標準輸入量（張）
Roll feed
One roll each—297–914 mm wide x unlimited length, or max diameter 176 mm
Bypass
1 sheet—914.4 x 2,000 mm- 標準輸出量（張）
10 sheets—original stacker (rear upper tray)
1 sheet—basketNote: Basket output can't be stacked because the curvature factor is small.
- 紙張輸入配置 - 標準
- 1-sheet bypass tray, 1-roll feeder
- 紙張輸入配置 - 可選
- 1-roll feeder, roll holder
- 紙張輸出配置 - 標準
- 10-sheet original stacker—rear upper tray, 1-sheet output basket
- 支援媒體
Plain paper, recycled paper, inkjet plain paper, tracing paper, matte film, coated paper, coated paper—CAD, special paper
- 最大紙張尺寸
- 914.4 mm x 33,000 mm
- 媒體量
- 51–220
- 介面 - 標準
Mainframe
1000 Base-T/100 Base-TX/10 Base -T (Ethernet)
USB 2.0Smart Operation Panel
IEEE 802.11 b/g/n (Wireless LAN)1
Bluetooth 4.22
SD Card Slot—SDHC memory card
USB Host Type A—USB Flash memory
USB Host Type A—1 port for USB keyboard (optional)2
USB Host Type mini B—for NFC card reader (optional)2
NFC Tag21—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
2—Cannot be used for printing- 介面 - 可選
- IEEE 802.11 a/g/n (Wireless LAN)
- 網路協議 - 標準
- TCP/IP (IPv4, IPv6)
- MIB 支援
- Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)
Private
Ricoh original MIB
- 影印速度
A1 LEF—black and white
2.0 cpm—Standard Mode
3.8 cpm—High Speed ModeA1 LEF—colour
1.2 cpm—Standard Mode
2.1 cpm—High Speed Mode
A0 SEF—black and white
1.1 cpm—Standard Mode
1.9 cpm—High Speed ModeA0 SEF—colour
0.6 cpm—Standard Mode
1.1 cpm—High Speed Mode- 首次影印時間
A1 LEF—black and white
41 seconds—Standard Mode
29 seconds—High Speed ModeA1 LEF—colour
84 seconds—Standard Mode
53 seconds—High Speed Mode
A0 SEF—black and white
71 seconds—Standard Mode
51 seconds—High Speed ModeA0 SEF—colour
155 seconds—Standard Mode
81 seconds—High Speed Mode- 影印解像度
- 600 dpi
- 原稿紙張闊度
- 210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm
- 卷紙闊度
- 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm
- 原稿輸入容量
- Sheet
- 最大尺寸
- 914 x 2,774 mm—colour, without optional File Format Converter
914 x 15,000 mm—with optional File Format Converter - 最小尺寸
- 210 x 210 mm
- 設定位置
- Centre
- 紙張剪裁模式
- Preset size, synchronised cut, variable cut
- 影像移位
- Front, rear, left, right—0 to ±200 mm in 1 mm steps
- 緊急按鈕
- Supported—key
- 數量選擇
- 1–99
- 影印保存
- 8 reservations
- 工作程序
- Up to 25 program modes
- 縮放範圍
- 25%–400% in 0.1% steps
- 放大比例
- 141.4%, 200%, 282.8%, 400%
- 縮放比例
- 25%, 35.4%, 50%, 70.7%
- 影像濃度調節
- 7 levels, black and white, greyscale, full colour—manual ; black and white, greyscale—Auto density selection
- 影像濃度調節
- Automatic, manual—9 steps
- 影印模式
- Black and white
Drawing—default
Text, Generation, Map, Background Line, Pasted Original, Highlighter
Text/Photo, Photo—printed, glossy, copied
Colour
Drawing—default
Text, Generation, Map
Text/Photo, Photo—printed, glossy, copied - 色彩模式
- Full colour, black and white
- 自動紙張選擇
- 1st roll, 2nd roll (optional), bypass tray
- 合併影印
- 2, 4, or 8 into 1 up to A1
- 急件插入影印
- Not supported
- 使用者編碼
- 1,000 user codes, 8 digits in each code
- 插頁
- Supported
- 電子分類
- Rotate sort up to A1
- 邊界／消除調節
- Margin adjustment
0–200 mm in 1 mm steps
Erase border
2–99 mm in 1 mm steps
Erase inside, outside
0–1,220 mm in 0.1 mm steps - 影像調節
- 7 levels—sharpen/soften
9 levels—contrast
9 levels—background density
9 levels—Under Colour Removal (UCR) adjustment
5 levels—colour sensitivity
15 colours—colour program registration - 影像設計
- Repeat, mirror, positive/negative, double copy—up to A1
- 色彩設計
- Colour conversion, colour erase
- 戳記
- 8 stamps, 2 sizes—presets
40 stamps can be registered—user presets
5 styles—date stamp
6 styles—page stamp
9 digits supported, zero suppression not supported—Bates stamping - 影像旋轉
- Supported
- 其他影印功能
- Auto density adjustment, Colour adjustment, Colour balance adjustment, Auto tray switch, Image rotation, Auto start, Job preset, Sample copy, Simplified Display, Login/logout button, Job log data report, NRS option (@Remote), Document server, Unauthorised copy prevention, Partial copy—210–33,000 mm length can be defined as partial, OHP slip sheet—bypass only, Paper type display—standard tray, Image border—3 mm or less all edges (roll paper); 3 mm or less leading edge/18 mm or less training edge/3 mm or less right/left edges (bypass)
- 色彩列印速度
- 2.1 ppm—A1 LEF
- 黑白列印速度
- 3.8 ppm—A1 LEF
- 列印程序
- On demand Piezo inkjet system
- 墨水類型
- Pigment-based ink—all four colours
- 列印解像度
Speed Priority (Drawing) Mode, Speed Priority Mode
600 x 300 dpiStandard Mode
600 x 600 dpiQuality Priority Mode with coated paper, film (matte) and special paper
1,200 x 1,200 dpiQuality Priority Mode with other paper types
600 x 600 dpi- 頁面描述語言
- Adobe PostScript 3, PDF Direct, RP-GL/GL2, RTIFF, Media Print JPEG, Media Print TIFF
- 印表機驅動程式
- Adobe PostScript 3
- 字體
- 136 European fonts—Adobe PostScript 3
- 從USB/SD列印
- Supported—JPEG, TIFF, PDF
- 其他列印功能
- One direction, Unauthorised copy prevention—(Adobe PostScript 3 driver), WSD printer, Colour matching, POP, Colour Universal Design (CUD), Ink Save Mode—save ratio 50%, available with Adobe PostScript 3, Sample print, Encrypted secure print, Hold print, Stored print, Auto job promotion, Bonjour (Rendezvous) support, Barrier-free colour management mode, Scheduled print, Banner page print (Job sheet print), Classification code, Web print tool, Emergency print, Black Over Print, Tray parameter change from Web Image Monitor, Poster print
- 掃瞄速度
- Black and white
26.5 mm/second—2,400 dpi
53.3 mm/second—1,200 dpi
106.7 mm/second—600 dpi
160 mm/second—150, 200, 300, 400 dpiColour8.8 mm/second—2,400 dpi
17.6 mm/second—1,200 dpi
35.3 mm/second—600 dpi
53.3 mm/second—150, 200, 300, 400 dpi - 掃瞄模式
- Scan to USB/SD, Scan to email, Scan to folders (FTP, SMB)
- 色彩掃瞄
- Supported
- 掃瞄類型
- Scan modes
Black and white
Text/Line Art—default, Text, Text/Photo, Photo, Greyscale
Colour
Text/Photo, Photo - 掃瞄程序
- CIS colour scanner
- 掃瞄解像度
- 150, 200 (default), 300, 400, 600 dpi—Scan to email/folder
150–2,400 dpi—TWAIN
Note: 2,400 dpi is only supported using A4 paper. - 自動偵測尺寸
- Auto detect, preset paper size, custom size
- 掃瞄範圍
- 210 x 210 mm—minimum
Black and white—maximum
914.4 x 15,000 mm
Note: Optional file format converter is required when the paper length is greater than 2,774 mm.
Colour—maximum
914.4 x 2,774 mm—600 dpi
914.4 x 4,161 mm—400 dpi
914.4 x 5,548 mm—300 dpi
914.4 x 8,323 mm—200 dpi
914.4 x 11,097 mm—150 dpi
Note: PDF1.4 is supported up to 5,080 mm. - 掃瞄器壓縮模式
- Black and white
MH, MR, MMR—default, JBIG2
Note: JBIG2 supported using PDF file format.
Colour
5 levels—JPEG - 影像濃度調節
- 7 levels, black and white, greyscale, full colour—manual ; black and white, greyscale—Auto density selection
- 掃瞄至電子郵件
- Protocols
POP, SMTP, IMAP4 - 掃瞄至電子郵件—其他功能
Email addresses stored in HDD
Maximum email addresses—2,000
Maximum registered group addresses—500
Maximum email addresses per send
500—from HDD
100—direct input
100—via LDAPScan to email size
100 MB—with restrictions
700 MB—without restrictions- 掃瞄至資料夾—其他功能
Maximum group addresses
50Maximum client folders per send
50Maximum file size
2,000 MB- TWAIN掃瞄—其他功能
Image adjustment
Brightness, Contrast, and Threshold (-100 to 100), Black and White (Text, Photo), Greyscale, 8 Colours, 8 Colours Halftone, 1677 Ten Thousand Colours, Gamma Adjustment (Normal, Soft, Sharp, Linear), Soft, Sharp, Dither (11 levels), Error Diffusion, Positive/Negative, Mirror, Dot EraseSupported operating systems
Windows Server 2008, Windows 7, Windows Server 2008 R2, Windows 8.1, Windows 10, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019- TWAIN掃瞄
- Scan mode
Standard, Photo, OCR, Filing - 其他掃瞄功能
- Gradation—1-bit in black and white, 8-bit in greyscale, 8-bit/24-bit in colour, RGB support—24-bit ,256 levels
- 認證
- User authentication—Windows (via Kerberos), LDAP, basic, user code
802.1x wired authentication
- Windows
- Windows 8.1
Windows 10
Windows Server 2012/2012 R2
Windows Server 2016
Windows Server 2019 - 支援Citrix
- XenApp 7.15 LTSR
VirtualApps/Desktops 2012 and later - Macintosh
- OS X Native 10.14, 10.15, 11—PostScript 3 only
- UNIX
- Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—v6.1, v7.1, v7.2
- 標準
- @Remote Embedded
Web Image Monitor - 可選
- RICOH Streamline NX v3
Global Scan NX
Enhanced Locked Print NX v2
Enhanced Locked Print NX FlexRelease Server v2
Card Authentication Package v2
Card Authentication Package Enterprise Server v2
Device Manager NX Lite
Device Manager NX Accounting
- 電源
- 220–240 V, 50/60 Hz, 1.9 A
- 耗電量
- 113 W—maximum power, mainframe
135 W—maximum power, full configuration
89 W—operating, black and white
86.9 W—operating, colour
48.8 W—Ready Mode
45.7 W—Low Power Mode
0.65 W—Energy Saver Mode (Sleep Mode) - 預熱時間
- 40 seconds or less
- 計時器
- Auto Off, Energy Saver, Panel Off, System Reset
- 聲功率級
- Mainframe
33.8 dB—standby, black and white
66.8 dB—copying, black and white
66.3 dB—copying, colour
Full system
66.2 dB—copying, black and white - 聲壓水平
- Mainframe
22.5 dB—standby, black and white
58.6 dB—copying, black and white
55.6 dB—copying, colour
Full system
58.2 dB—copying, black and white - 排放水平
- 0.02 mg/h or less—benzene
0.1 mg/h or less—styrene - 總揮發性有機化合物
- 0.164 mg/h—ready
10.26 mg/h—printing - 塑膠成分識別
- All plastic components that weigh more than 25 g are identified in accordance with DIN 548490 and ISO 11469 standards.
