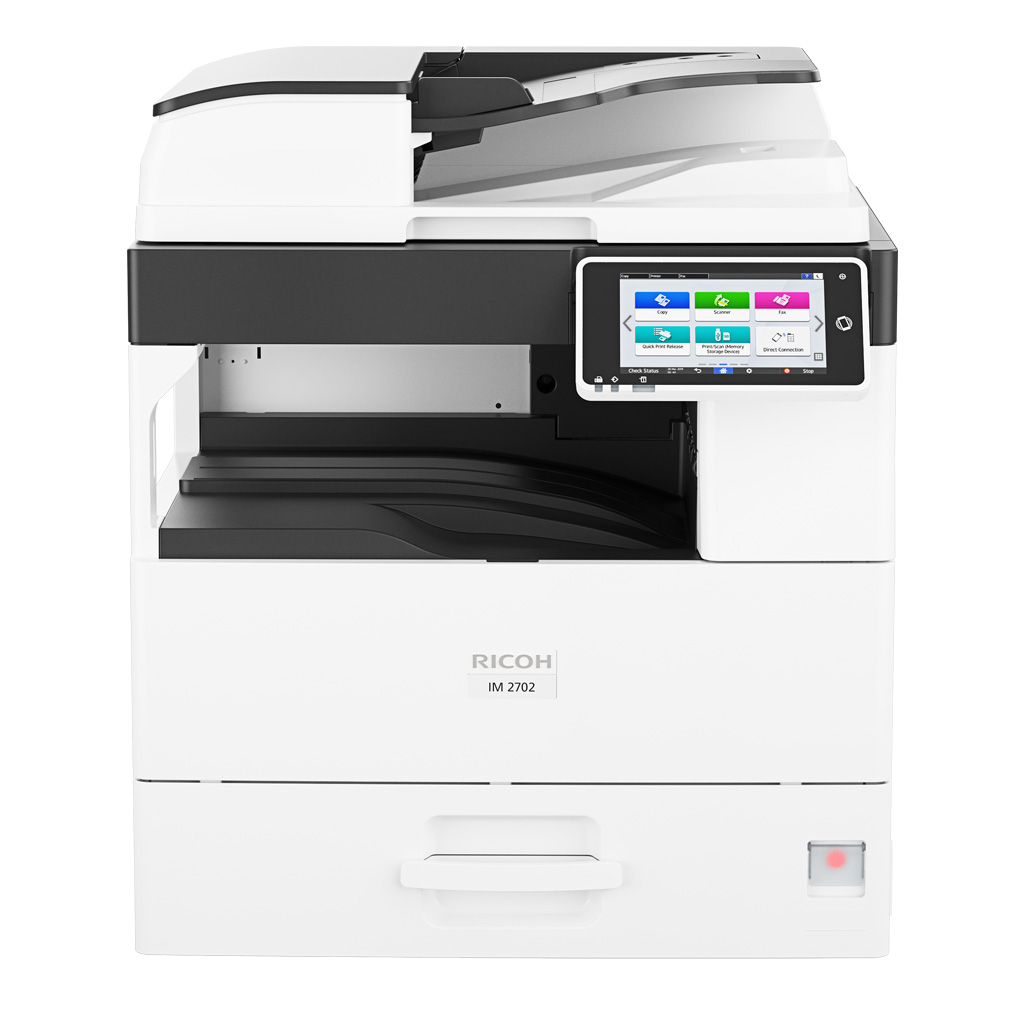

IM 2702 A3 black and white MFP

  • Copy, print, scan, optional fax
  • Prints up to 27 ppm
  • 7" Smart Operation Panel
  • Mobile printing
配置您的設備
Related Links
    Realistically affordable
    The new intelligent A3 mono multifunction printer to empower your workplace

    The new intelligent A3 mono multifunction printer to empower your workplace

    RICOH IM 2702 is a budget friendly device that comes with a host of improved features, making it easier to use and connect to, while at the same time increase productivity. It offers a fast print speed at 27 pages per minute, larger standard paper tray, as well as a new generation 7” Smart Operation Panel.

    1. Easy setup and maintenance
      Preassembled PCDU simplifies the process of setting up the device without requiring the support of a technician
    2. Smart operation
      Print or scan documents easily from mobile devices via the Ricoh Smart Device Connector app
    3. Solutions friendly
      Support for cloud workflow applications which connect the device to external cloud services and third-party apps via the RICOH Smart Integration platform
    4. Security in our DNA
      Document confidentiality can be maintained by suspending print jobs, and only be released when authentication is done at the device

    PDF brochure

    Specifications

    功用
    Copy, print, scan, optional fax
    色彩
    No
    存儲
    Not available
    記憶體 - 標準
    4 GB—2 GB mainframe + 2 GB Smart Operation Panel
    操作板面
    7" colour touch operation panel
    實體尺寸（長闊高）—大型機
    587 x 581 x 677 mm—depth including the input tray
    重量—大型機
    46.5 kg or less
    標準輸入量（張）
    600
    最大輸入量（張）
    1,600
    標準輸出量（張）
    250
    最大輸出量（張）
    250
    紙張輸入配置 - 標準
    500-sheet paper input tray, duplex unit, 100-sheet bypass tray, 100-sheet ARDF
    紙張輸出配置 - 標準
    250-sheet face-down output tray
    支援媒體

    Standard paper input tray
    Thin paper, Plain paper 1, Plain paper 2, Recycled, Colour Paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock

    Bypass tray
    Thin paper, Plain paper 1, Plain paper 2, Recycled, Colour paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock, Thick paper 1, Thick paper 2, Label paper, OHP, Envelope

    Optional paper banks
    Plain paper 1, Plain paper 2, Recycled, Colour paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock

    最大紙張尺寸
    A3
    媒體量
    52–216
    介面 - 標準

    Mainframe
    10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
    IEEE802.11a/b/g/n (Wireless LAN)
    USB2.0-Device (Type-B)
    USB2.0-Host

    Smart Operation Panel
    IEEE 802.11 ac/a/b/g/n (Wireless LAN)
    Bluetooth 4.2
    SD card slot—SDHC memory card
    USB Host Type A—for USB Flash memory
    USB Host Type A—1 port for USB keyboard, card reader, or camera
    USB Host Type mini B—for NFC card reader
    microSD card slot—for service engineer access
    NFC tag

    網路協議 - 標準
    TCP/IP
    影印速度
    27 cpm
    首次影印時間
    6.5 seconds or less
    影印解像度
    300 x 600 dpi (default), 600 x 600 dpi
    縮放範圍
    25–400%
    放大比例
    115%, 122%, 141%, 200%, 400%
    縮放比例
    93%, 82%, 71%, 50%, 25%
    雙面影印
    Standard
    書本影印
    Not supported
    身份證影印
    Supported
    黑白列印速度
    27 ppm
    首次列印時間
    6.5 seconds or less
    列印解像度
    600 x 600 dpi
    頁面描述語言
    Standard
    PCL 5e, PCL 6, PostScript 3
    印表機驅動程式
    Standard
    PCL 5e, PCL 6, PostScript 3 emulation
    雙面列印
    Standard
    行動列印
    AirPrint, Mopria®
    從USB/SD列印
    Supported
    掃瞄速度
    50 ipm
    掃瞄模式
    Scan to email, Scan to folder (SMB), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to USB/SD
    色彩掃瞄
    Standard
    掃瞄解像度
    100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi
    掃瞄至檔案類型

    Single- and multi-page TIFF
    Single- and multi-page PDF
    Single-page JPEG (greyscale)
    Single- and multi-page high compression PDF

    掃瞄至電子郵件

    Protocols
    SMTP gateway, POP

    Authentication
    SMTP authentication, POP before SMTP authentication

    Scan resolution
    100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi

    Scan to email file types
    JPEG, PDF—true colour, greyscale
    TIFF, PDF—black and white

    掃瞄至資料夾

    Protocols
    SMB

    Security
    LanMan1.0, NTLMv1/v2, GSS API

    Resolution
    100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi,  600 x 600 dpi

    Search for client folders
    By name and ID

    Scan to file types
    JPEG, PDF—True colour, greyscale
    TIFF, PDF—black and white

    TWAIN掃瞄

    Scan mode
    True colour, greyscale, black and white

    Scan resolution
    100–1,200 dpi
    Note: 1,200 dpi scanning is supported only for A5 and smaller paper size.

    傳真類型
    G3 fax, LAN-Fax—optional
    傳真機電路
    PSTN
    傳真兼容性
    ITU-T (CCITT), G3—maximum 1 line
    傳真數據機速度
    2,400 bps–33.6 Kbps with automatic shift down
    傳真壓縮方法
    MH, MR, MMR
    傳真解像度
    200 x 100 dpi—8 x 3.85 lines/mm
    200 x 200 dpi—8 x 7.7 lines/mm
    G3傳真傳送速度
    3 seconds approximately—ITU-T No. 1 chart, TTI off, MFT off
    傳真SAF記憶體容量
    4 MB
    快速撥號
    400 numbers
    加密功能

    Authentication password

    認證
    User authentication—Windows and LDAP via Kerberos, basic, user code
    802.1x wired authentication
    Quota setting/Account limit
    Windows
    PCL 6, PostScript 3
    Windows Server 2008
    Windows Server 2008 R2
    Windows 7
    Windows Server 2012
    Windows 8.1
    Windows Server 2012 R2
    Windows 10
    Windows Server 2016
    Windows Server 2019
    Macintosh
    OS X Native v10.11 or later—PostScript 3 only
    UNIX
    Sun Solaris—10
    HP-UX—11.x, 11iv2, 11iv3
    Red Hat Linux—Enterprise v4, v5, v6
    SCO OpenServer—5.0.7, 6.0
    IBM AIX—6.1, 7.1, 7.2
    標準
    @Remote Embedded
    Web Image Monitor
    可選

    Card Authentication Package
    Device Manager NX
    Enhanced Locked Print NX and FlexiServer
    GlobalScan NX (from May 2019, firmware upgrade necessary for devices manufactured prior)
    Printer Driver Packager NX
    Smart Operation Panel Designer v1.43 or newer

    電源
    220–240 V, 50/60 Hz, 8 Amps
    耗電量
    1,550 W or less—mainframe, maximum power
    500 W or less—printing
    113 W or less—Ready Mode
    55 W or less—Low Power Mode
    1 W or less—Energy Saver Mode (Sleep Mode)
    典型用電量
    1,309 Wh
    預熱時間
    25 seconds—Quick Mode
    65 seconds—Normal Mode
    節能模式
    30 minutes shift time—to Low Power Mode
    1 minute shift time—to Energy Saver Mode (Sleep Mode)
    恢復時間

    10 seconds or less—from Low Power Mode
    13 seconds or less—from Energy Saver Mode (Sleep Mode)

    環保標籤
    Blue Angel Mark (BAM)
