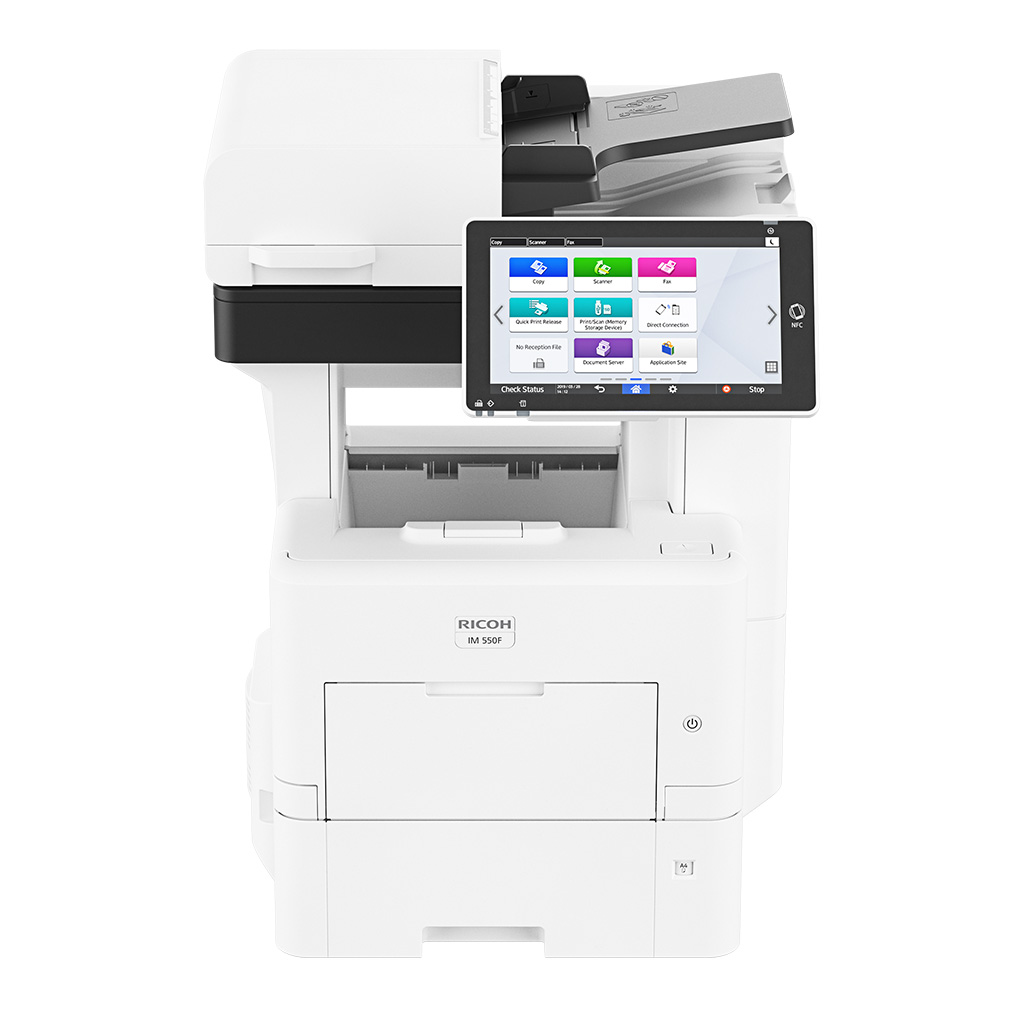

IM 550F

Copy, print, scan, fax
Prints up to 55 ppm
10.1” Smart Operation Panel
RICOH Smart Integration

The Apex Series - Ensuring performance when it matters

The versatile 4-in-1 RICOH IM 550F is equipped with a Single Pass Document Feeder (SPDF) that allows double sided originals to be scanned in a single pass. Scanned documents can be effortlessly sent to the designated email or uploaded directly to your Cloud depositories, such as DropBox™ and Sharepoint™. Comes packed with Ricoh’s Always Current Technology™, new features and applications can be downloaded when required.

Improved productivity
100-sheet SPDF to handle large scanning jobs much faster and efficiently
Smart and scalable
RICOH Always Current Technology ensures devices support the latest features and functionalities
Reliable and durable
High duty cycle of up to 250,000 sheets
Intuitive experience
Applications and functions are seamlessly integrated, with an easy-to-understand interface

Download PDF brochure

Specifications

功用: Copy, print, scan, fax
色彩: No
存儲: 320 GB, 2.5-inch
記憶體 - 標準: 2 GB
操作板面: 10.1" Smart Operation Panel (G2.5)

實體尺寸（長闊高）—大型機: 480 x 539 x 644 mm
重量—大型機: 29 kg or less

標準輸入量（張）: 600
最大輸入量（張）: 2,600
標準輸出量（張）: 500
最大輸出量（張）: 500
紙張輸入配置 - 標準: 500-sheet paper tray, 100-sheet bypass tray, duplex unit, 100-sheet SPDF
紙張輸出配置 - 標準: 500-sheet face-down output tray
支援媒體: Standard tray, duplex unit
Plain Paper 1–2, Middle Thick Paper, Thick Paper 1¹, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper

Bypass tray
Thin Paper, Plain Paper 1–2, Middle Thick Paper, Thick Paper 1–3, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, OHP, Label Paper, Envelope

Paper Feed Unit PB1160
Plain Paper 1–2, Middle Thick Paper, Thick Paper 1¹, Recycled Paper, Coloured Paper, Special paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, Envelope

¹—Allowed weights for Trays 1–5 and duplex printing are 106–120 g/m²
最大紙張尺寸: A4
媒體量: 60–220

介面 - 標準

Mainframe
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB Host
USB Device 2.0

Operation panel
Wireless LAN (IEEE 802.11 ac/a/b/g/n)
SD Card Slot (1 slot/support SDHC Memory Card)
USB Host for USB Memory (USB Host Type A)
USB Host for IC Card R/W (NFC) (USB Host Type miniB)
NFC Tag built-in
Bluetooth

介面 - 可選

IEEE 1284
Wireless LAN (IEEE 802.11a/b/g/n)
Device Server Type M37 (additional NIC port)

網路協議 - 標準

TCP/IP (IPv4, IPv6)

影印速度

55 cpm

首次影印時間

7 seconds or less

影印解像度

Platen
600 x 600 dpi

SPDF—simplex
600 x 300 dpi
600 x 600 dpi

SPDF—duplex
Front 600 x 600 dpi / Back 600 x 600 dpi (colour, black and white)
Front 600 x 300 dpi / Back 600 x 300 dpi (black and white)
Front 600 x 300 dpi / 300 x 600 dpi (colour)

縮放範圍

25%–400% in 1% steps

放大比例

141%, 200%

縮放比例

93%, 71%, 50%

雙面影印

Standard

身份證影印

Supported

使用者編碼

1,000 user codes, 8 digits per code

黑白列印速度

55 ppm

首次列印時間

6 seconds or less

列印解像度

1,200 x 1,200 dpi (1-bit)

頁面描述語言

Standard
PCL 5e, PCL 6 (XL), PostScript3 emulation, PDF Direct emulation

Optional
Adobe PostScript 3, Adobe PDF Direct, IPDS, XPS

Note: IPDS unit will be available after product launch.

印表機驅動程式

Standard
PCL 5e, PCL 6, PostScript3

Optional
Adobe PostScript 3

雙面列印

Standard

行動列印

AirPrint, Mopria®, RICOH Smart Device Connector

從USB/SD列印

Supported

掃瞄速度

Black and white
60 ipm—simplex
100 ipm—duplex

Colour
40 ipm—simplex
62 ipm—duplex

掃瞄模式

Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)

色彩掃瞄

Standard

掃瞄解像度

100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi

掃瞄至檔案類型

Singe-page
TIFF/JPEG, PDF, High Compression PDF, Secure PDF, Digital Signature PDF

Multi-page
TIFF, PDF, High Compression PDF, Secure PDF, Digital Signature PDF

掃瞄至電子郵件

Protocols
SMTP (mail server) gateway, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, high-compression PDF, secure PDF, digitally signed PDF, PDF/A

Multi-page
TIFF, PDF, high-compression PDF, secure PDF, digitally signed PDF, PDF/A, searchable PDF

掃瞄至資料夾

Protocols
SMB, FTP

Security
Client folder login (login name and password), encryption of login name and password during transmission

Resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by client folder name

Scan to folder file types
Single-page
TIFF, JPEG, PDF, high-compression PDF, secure PDF, digitally-signed PDF

Multi-page
TIFF, PDF, high-compression PDF, secure PDF, digitally-signed PDF

TWAIN掃瞄

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
Black and white
100–1,200 dpi—1,200 dpi scanning is supported only with A6 or smaller paper size

Colour
100–600 dpi

傳真類型

G3 fax (1 line), Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax

傳真機電路

PSTN, PBX

傳真兼容性

ITU-T (CCITT), G3

傳真數據機速度

33.6 Kbps–2,400 bps–—G3, standard with Automatic Shift Down

傳真壓縮方法

MH, MR, MMR, JBIG

傳真解像度

Standard Mode
8 x 3.85 lines/mm, 200 x 100 dpi

Detail Mode
8 x 7.7 lines/mm, 200 x 200 dpi

Super Fine Mode (optional )
16 x 15.4 lines/mm, 400 x 400 dpi

G3傳真傳送速度

Approx. 2 seconds—200 x 100 dpi, JBIG, ITU-T No. 1 chart, TTI off, memory transmission
Approx. 3 seconds—200 x 100 dpi, MMR, ITU-T No. 1 chart, TTI off, memory transmission

傳真SAF記憶體容量

4 MB (approximately 320 pages)—standard
60 MB (approximately 4,800 pages)—with optional SAF memory

傳真記憶體備份

1 hour

快速撥號

2,000 numbers

數據覆寫保安系統（DOSS）- 標準: Yes
數據覆寫保安系統（DOSS）- 可選: Type M19—for customers who require their devices to comply with ISO 15408 Common Criteria certification
加密功能: HDD encryption
Authentication password
S/MIME
認證: 802.1x wired authentication
IEEE 802.11i security (WPA)
Quota setting/Account limit
User authentication—Windows and LDAP via Kerberos, basic
User code authentication—8 digits, 1,000 user codes
WiFi Protected Setup (WPS) support

Windows: Windows 7
Windows Server 2008
Windows Server 2008 R2
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016
Windows Server 2019
Macintosh: OS X Native v10.11 or later—PostScript 3 only
UNIX: Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2
SAP: Environment—R/3, R/4
SAP R/3 Device Type—supported
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR fonts—OCR A, OCR B

標準: @Remote Embedded
Web Image Monitor
可選: @Remote Office
@Remote Enterprise Pro
@Remote Connector NX
Card Authentication Package
Device Software Manager
Enhanced Locked Print NX
GlobalScan NX
Java SDK
Printer Driver Packager NX
RICOH Streamline NX
手機應用程式: RICOH Smart Device Connector

電源: 220–240 V, 50/60 Hz
耗電量: 1,300 W or less—maximum operating power (nominal)
1,500 W or less—maximum operating power (guaranteed)
710 W—printing, operating (nominal)
88.2 W or less—Ready Mode (nominal)
3.1 W—Energy Saver Mode (Sleep Mode) (nominal)
典型用電量: 3.3 kWh
預熱時間: 25.4 seconds or less
恢復時間: 10 seconds or less—from Ready Mode
25 seconds or less—from Energy Saver Mode (Sleep Mode)
環保標籤: Blue Angel Mark (BAM), Energy Efficiency Labelling Scheme (Hong Kong), Thai Green Label
其他環保功能: Eco-friendly indicator screen
