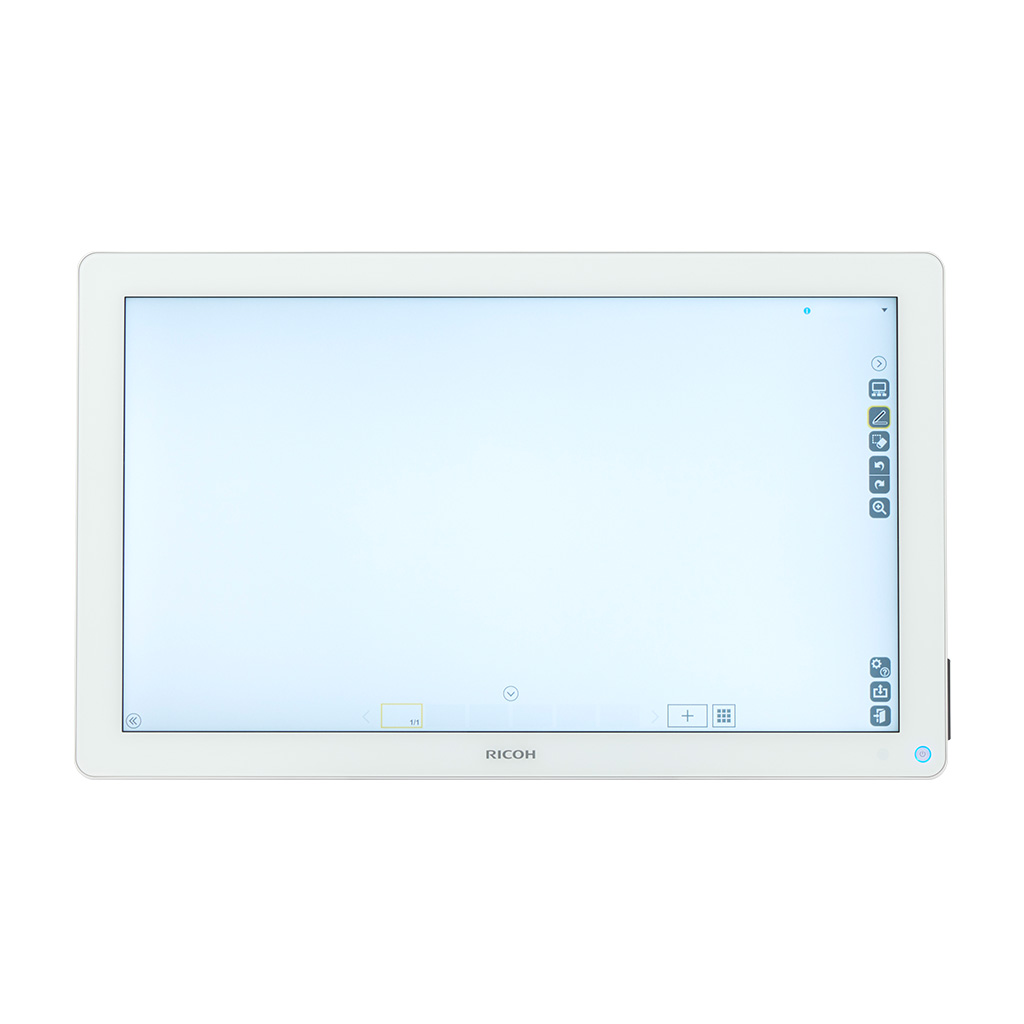

IWB D3210 Interactive whiteboard

  • 32-inch touchscreen
  • Projected Capacitive Touch (PCAP) technology
  • Optional controllers
  • Optional remote connection

Real-time, remote collaboration

Ideal for smaller meeting spaces, Ricoh’s compact, 32” Interactive Whiteboard D3210 supports 180° screen rotation and can be laid flat and used as an interactive table top. Share files instantly and allow teams to annotate in real-time for all to see, and it also provides accurate character recognition function. With its stylish design, vivid display and intuitive controls stimulating engagement, your conference calls, team meetings and one-to-ones can be much more productive and collaborative.

Impress your clients with easily understood visuals and real-time on-screen annotations

With superior visuals and an impressive suite of touch screen functionality, Ricoh Interactive Whiteboard D3210 allows for efficient content sharing in all your customer-facing discussions. It’s the ideal solution for huddle space meetings for estate agencies, banks, car dealerships, architects, developers and designers to name a few.

  1. Collaborate in real time
    Connect multiple devices across locations for interactive collaboration with your global teams and have them edit and mark documents directly on the whiteboard in your virtual meeting.
  2. Make real-time notes in your own handwriting
    Write, scribble or draw with the touch pen, using the whiteboard’s OCR recognition tool, an innovative handwriting recognition software.
  3. Go easy on the eyes
    Low blue light mode and anti-glare screen reduces eye strain and provides a more comfortable viewing experience.
  4. Share results in a single click
    Whiteboard visuals can be printed or sent as PDFs direct to email inboxes, to your USB device or directly to your office folders, on the cloud or network.

Download PDF Brochure


Specifications

แผงควบคุมการปฏิบัติงานเครื่อง
Main power switch x 1
Up button x 1
Down button x 1
Left  button x 1
Right button x 1
Menu button x 1
Enter (Input) button x 1
สิ่งที่มาพร้อมกับเครื่อง

Touch pen x 1
Pen tray
Mounting parts for flat orientation
Plastic clamp
Remote controller
AAA size remote controller battery
2 m power cord
3 m VGA cable
1.8 m USB 3.0 cable
5 m HDMI cable
OPS slot
User manual (Read This First guide)
Quick guide

ขนาดเครื่อง (ก X ย X ส)—ตัวเครื่อง
789 x 70 x 480 mm
น้ำหนัก—ตัวเครื่อง
15 kg or less
ประเภทหน้าจอ
LCD multi touch-screen display
ขนาดจอภาพ
32 inches
ไฟพื้นหลัง
LED
พื้นที่ที่แสดงผลได้ (กว้าง x สูง)
719.2 x 413.7 mm
ความละเอียด
1,920 x 1,080 pixels
การประมวลผลสี
16.77 million colours maximum
อุณหภูมิของสี
9,300 K—cool
8,500 K—warm
6,500 K—neutral
5,000 K—low blue light
ความสว่าง
500 cd/m2
อัตราส่วนภาพ
16:9
คอนทราสต์
3000:1
การตั้งค่าการแสดงผล

Picture Mode—including Low Blue Light Mode, Backlight, Contrast, Brightness, Saturation, Sharpness, Colour Temperature, Treble, Bass, Balance, Volume, Mute Speaker, Audio Source PAP Setting, Aspect, Adjust Screen, Touch Feature, Language, Power Save Control Setting, Touch Control Setting, Set Monitor ID, OSD Rotation, Advanced Information, Reset

ระยะห่างระหว่างจุดพิกเซล
0.364 x 0.364 mm
ความเร็วในการตอบสนอง
10 ms or less
มุมมองในการแสดงผล
Left and right 178 degrees, up and down 178 degrees
เสียง

Input
1 x Line 3.5 mm

Output
1 x speaker out (12 W + 12 W)

วิดีโอ

Video input
1 x VGA
1 x HDMI (HDCP 1.4-compliant)
1 x DisplayPort

Video output
1 x DisplayPort

เทคโนโลยีระบบสัมผัส
Projected Capacitive Touch (PCAP)
จุดสัมผัส
10 points maximum—four points with finger
ความละเอียดในการสัมผัส
4,096 x 4,096
ช่องเสียบบนหน้าจอสัมผัส
USB 3.0 Type B—not available when controller is installed
กระจกแผงควบคุมแบบระบบสัมผัส
2 mm anti-glare
อินเทอร์เฟซ—มาตรฐาน

Control
1 x serial RS-232C input
1 x serial RS-232C output
1 x USB 3.0 Type B—for touch control

USB Hub
4 x USB 3.0 Type A

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

อินเทอร์เฟซ—อุปกรณ์เสริม
With Ricoh IWB controllers
10Base-T/100Base-Tx/1000Base-T (Wired LAN)
IEEE 802.11a/b/g/n (Wireless LAN)
Bluetooth

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.
Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows Embedded 7—Standard
Windows 8—Windows 8, Pro, Enterprise
Windows Embedded 8—Standard
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, Enterprise, IoT

Single-touch sensor
Windows 7—Home Basic

RICOH Interactive Whiteboard controller Type 2 (optional)
Windows 10 IoT Enterprise 64-bit

Macintosh
Mac OS X 10.8–10.13—single-touch sensor
ภาษาที่รองรับ
On-screen display languages
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Chinese
พลังงานไฟฟ้า
100–240 V, 50–60 Hz
การใช้พลังงาน
215 W or less—operating
295 W or less—full configuration
0.3 W or less—in Standby Mode
การลดการใช้วัสดุที่มีผลกระทบต่อสิ่งแวดล้อม
Restriction of Hazardous Substances (RoHS)
มาตรฐานด้านสิ่งแวดล้อม
REACH
ErP Lot 6
EU battery (2006/66/EC)
EU packaging (94/62/EC)
WEEE
Directive 2006/66/EC
Directive 2005/20/EC
มาตรฐานความปลอดภัย
EN62368-1 (CE marking)
EN62368-1, AfPS GS 2014, EKI-ITB 2000 (TUV/GS)
IE62368-1 (CB attestation)
มาตรฐาน Electromagnetic Compatibility (EMC)

EN55032, EN55024,EN61000-3-2, EN61000-3-3
EN62311(CE)
AS/NZS CISPR32 (C-Tick)

มาตรฐาน Wireless LAN
EN300328 (CE Marking)
EN301489-1, EN301489-17 (CE Marking)
ACMA—Australia
iDA—Singapore
ระบบปฏิบัติการ

Temperature
0–32ºC—operating

Humidity
10–80%—operating
