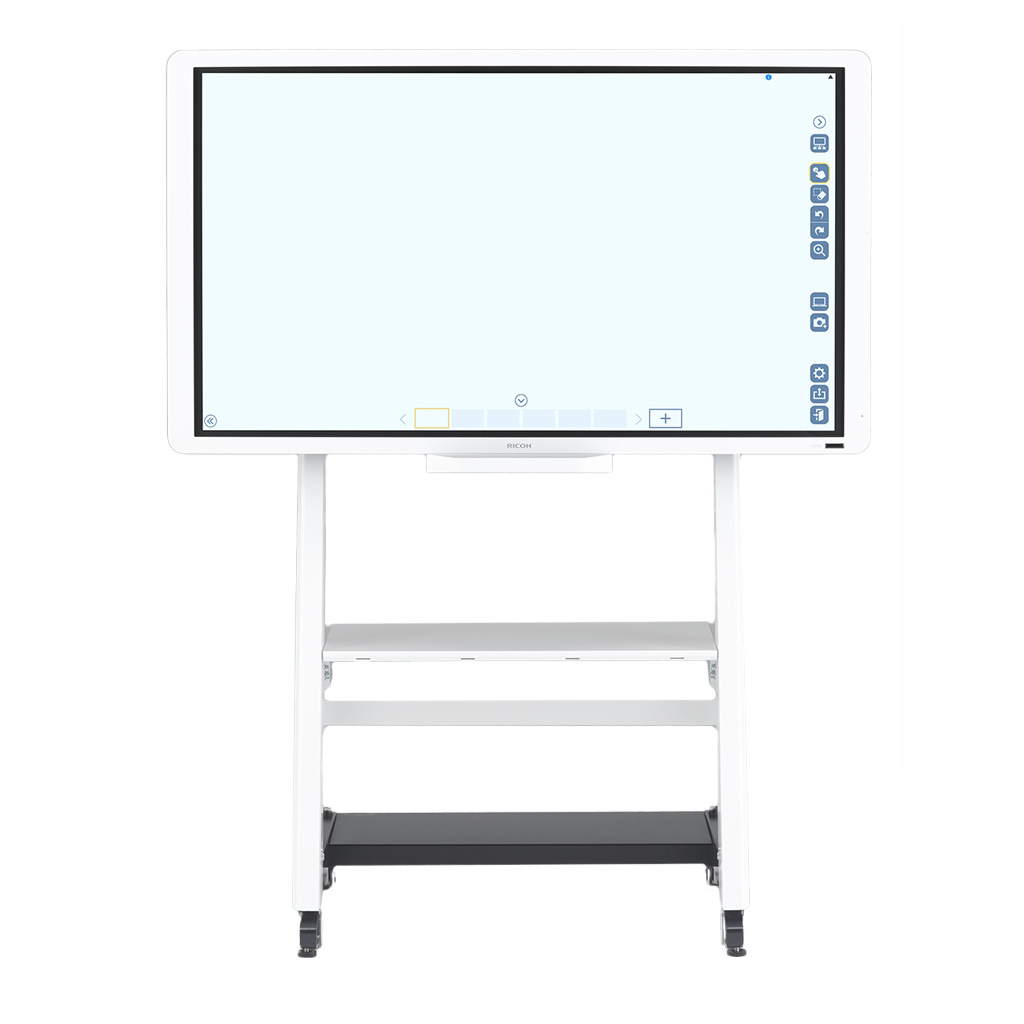

IWB D5520 Interactive whiteboard

  • 55-inch touchscreen
  • 1,920 x 1,080 pixels
  • 450 cd/m2 brightness
  • Optional remote connection

Speed up collaboration across your teams and offices

One tool that provides all you need to achieve aligned teams and offices, no matter where they are. Provide the ability to edit and annotate across locations, then share and distribute easily.

Connect and collaborate in person or across locations

Real time collaboration across different office locations is no longer a challenge. It doesn’t matter if you’re in the same office or continent, Ricoh’s Interactive Whiteboards offer a variety of ways to come together, discuss, agree and share outcomes. Easily connect via Bluetooth or different media. Add Ricoh Streamline NX for card-based authentication to limit device access and keep information secure.

  1. Real time collaboration
    Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations.
  2. Portable and convenient
    Lightweight, portable and adaptable enough to hang on a wall or use as a tabletop.
  3. Straight forward connectivity
    Start collaborating instantly with no software. Connect devices with WiFi, VGA, HDMI or USB.
  4. Share results easily
    Whiteboards can be shared by printing or sending a PDF by email, to USB or directly to your office folders, on the cloud or network.

Specifications

แผงควบคุมการปฏิบัติงานเครื่อง
1 x main switch
7 x tact switch
สิ่งที่มาพร้อมกับเครื่อง

Touch pen
1 pcs

Note: There is also a felt-tipped touch pen available as an option, if additional pens are required.

Remote controller
Yes

Remote controller battery
2 x AAA batteries

Power cord
Yes

RGB cable
Yes

USB cable
Yes—for PC operation

HDMI cable
Yes

Bluetooth dongle
Yes

Quick guide and safety instructions
Yes

OPS slot
Yes x 1

ขนาดเครื่อง (ก X ย X ส)—ตัวเครื่อง
1,345 × 119 x 770 mm
น้ำหนัก—ตัวเครื่อง
43 kg
ประเภทหน้าจอ
LCD multi touch-screen display
ขนาดจอภาพ
55 inches
ไฟพื้นหลัง
LED
พื้นที่ที่แสดงผลได้ (กว้าง x สูง)
1,209.6 x 680.4 mm
ความละเอียด
1,920 x 1,080 pixels
การประมวลผลสี
16.7 million colours maximum
อุณหภูมิของสี
11,000 K—cool
6,500 K—warm
9,300 K—neutral
5,000 K—low blue light
ความสว่าง
450 cd/m2
อัตราส่วนภาพ
16:9
คอนทราสต์
1100:1
การตั้งค่าการแสดงผล

Landscape orientation, Picture Mode—including Low Blue Light Mode, Backlight, Contrast, Brightness, Chroma, Phase, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source PAP Setting, Aspect, Adjust screen, Touch feature, Language, Power Save Control Setting, Touch control settings, Set monitor ID, Advanced information

ระยะห่างระหว่างจุดพิกเซล
0.63 mm
ความเร็วในการตอบสนอง
12 ms
มุมมองในการแสดงผล
Left and right 178 degrees, up and down 178 degrees
เสียง

Input
1 x Line 3.5 mm

Output
1 x speaker out

วิดีโอ

Video input
1 x VGA
1 x HDMI
1 x DVI-D
1 x DisplayPort

Video output
1 x DisplayPort

ไมโครโฟน

Configuration
Built-in

Mic sensitivity
-28±3 dB

Signal to noise ratio
58 dB

Maximum input level
110 dB

Maximum pickup distance
5 m

เทคโนโลยีระบบสัมผัส
ShadowSense
จุดสัมผัส
10 points maximum—four points with finger
ความละเอียดในการสัมผัส
80 pt/sec—1,920 x 1,080 spatial resolution
ช่องเสียบบนหน้าจอสัมผัส
USB 2.0 Type B—not available when controller is installed
ระบบการตรวจจับปากกาอิเล็กทรอนิกส์
Radio frequency transmission
กระจกแผงควบคุมแบบระบบสัมผัส
3 mm anti-glare
อินเทอร์เฟซ—มาตรฐาน

Control
1 x serial RS-232C input
1 x serial RS-232C output
2 x USB 2.0 Type B—for touch control

USB Hub 1
2 x USB 2.0 Type A—for Bluetooth dongle

USB Hub 2
4 x USB 3.0 Type A

Bluetooth
Bluetooth v2.1+EDR v3.0, v4.0

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

อินเทอร์เฟซ—อุปกรณ์เสริม
With Ricoh IWB controllers
10Base-T/100Base-Tx/1000Base-T (Wired LAN)
IEEE 802.11a/b/g/n (Wireless LAN)

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.
Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows Embedded 7—Standard
Windows 8—Windows 8, Pro, Enterprise
Windows Embedded 8—Standard
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, Enterprise, IoT

Single-touch sensor
Windows 7—Home Basic

RICOH Interactive Whiteboard controller Type 1 (optional)
Windows Embedded Standard 8

RICOH OS-free Interactive Whiteboard controller Type 1 (optional)
Windows 7—must be installed after setup at customer site

Macintosh
Mac OS X 10.10–10.12—single-touch sensor
ภาษาที่รองรับ
On-screen display languages
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish
พลังงานไฟฟ้า
100–240 V, 50–60 Hz
การใช้พลังงาน
255 W or less—full configuration
0.5 W or less—in Standby Mode
การลดการใช้วัสดุที่มีผลกระทบต่อสิ่งแวดล้อม
Restriction of Hazardous Substances (RoHS)
มาตรฐานด้านสิ่งแวดล้อม
REACH
EU battery (2006/66/EC)
EU packaging (94/62/EC)
ErP Lot 3
ErP Lot 7
WEEE
Directive 2006/66/EC
Directive 2005/20/EC
มาตรฐานความปลอดภัย
EN60950-1 (CE marking)
EN60950-1 (TUV)
IEC60950-1 (CB attestation)
AS/NZS 3112:2000—Australia, New Zealand
CNS14336 (RPC)—Taiwan
มาตรฐาน Electromagnetic Compatibility (EMC)
EN55022
EN61000-3-2 or EN61000-3-12
EN61000-3-3 or EN61000-3-11
EN55024 (CE)
AS/NZS CISPR 22 (C-Tick)
CNS13438 (RPC)—Taiwan
มาตรฐาน LAN แบบใช้สาย
NCC—Taiwan
มาตรฐาน Wireless LAN
EN300328 (CE Marking)
EN301489-1, EN301489-17 (CE Marking)
ACMA—Australia
iDA—Singapore
NCC—Taiwan
WPC—India
ระบบปฏิบัติการ

Temperature
0–40ºC—operating
-20–60ºC—storage

Humidity
10–90%—operating
10–80%—storage
