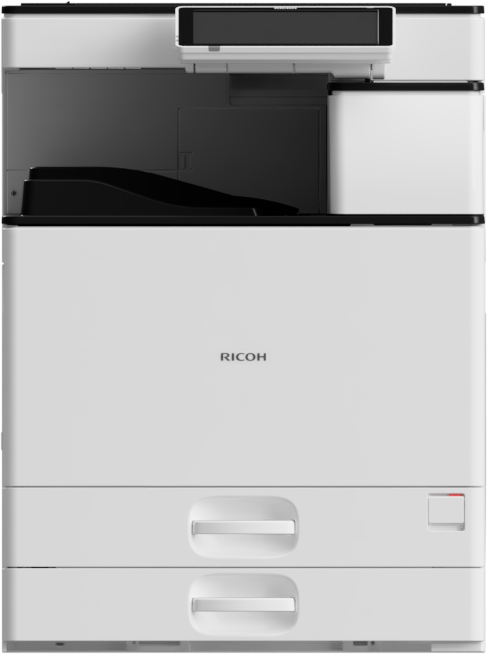

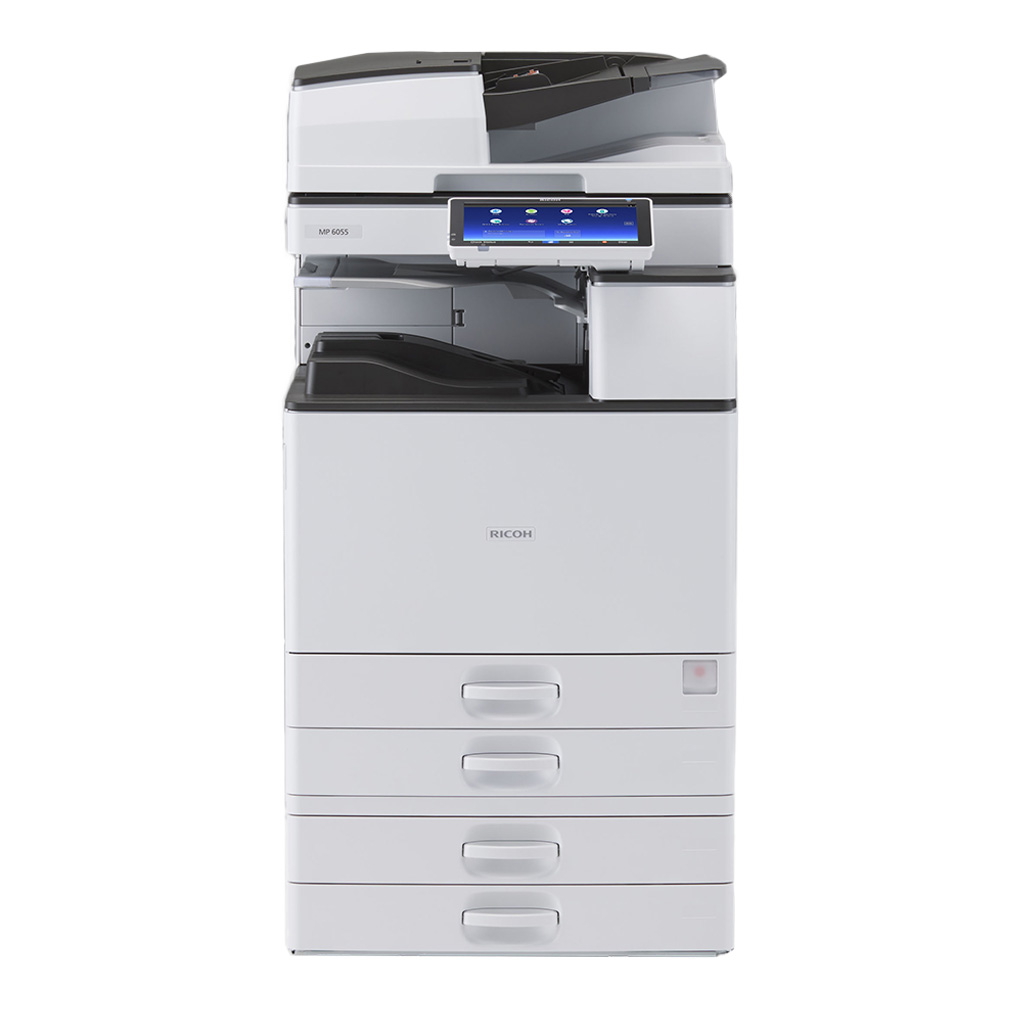

MP 5055SP

MP 5055SP

The MP 5055SP provides copy, print, and scan as standard with fax functionality as an option.

With a high-speed 1.46 GHz Intel processor, this MFP is capable of executing complex tasks in less time. It has better solution capability with features like standard 10.1-inch Smart Operation Panel, standard HDD, large internal memory, Application Site, Device Software Manager and smart apps.

The optional 1,000-sheet hybrid finisher provides either staple or staple-free finishing options, while the 3,000-sheet finisher, or 1,000-sheet or 2,000 sheet booklet finisher deliver excellent finishing features and improve your workflow. If space is an issue, there is a 500-sheet internal finisher that can be installed with this MFP.

Compliant with the Energy Star standard and with a low Typical Electricity Consumption (TEC) value, the MP 5055SP is one of the most energy-efficient devices among competitors.

Platen Cover PN2000
A cover for the platen glass. No automated feeding to scan and copy documents.

Dimensions (W x D x H): 561 x 497 x 63.8 mm
Weight: 2.3 kg or less
Notes:
Cannot be installed with ARDF DF3090,SPDF DF3100,ADF Handle Type C
Platen Cover PN2000

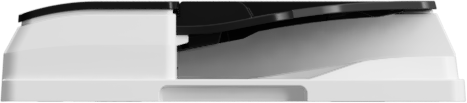

ARDF DF3090

Automatic Reversing Document Feeder. Feeds originals one page at a time into a scanner or copier without users having to manually replace each page.

Capacity: 100 sheets
Dimensions (W x D x H): 565 x 500 x 125 mm
Weight: 8.2 kg or less

Notes:
Cannot be installed with Platen Cover PN2000,SPDF DF3100
ARDF DF3090

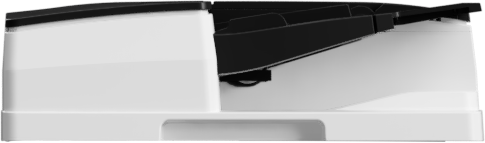

SPDF DF3100

Single-Pass Document Feeder. Feeds originals one page at a time into a scanner or copier without users having to manually replace each page. Captures both sides of the document simultaneously.

Stack capacity: 220 sheets
Dimensions (W x D x H): 587 x 520 x 175 mm
Weight: 13.9 or less
Power consumption: 55 W or less

Notes:
Cannot be installed with Platen Cover PN2000,ARDF DF3090
SPDF DF3100
ADF Handle Type C
Assists seated users or users with arm injuries to open and close an automatic document feeder.
Notes:
One of the following must also be selected: ARDF DF3090,SPDF DF3100
Cannot be installed with Platen Cover PN2000

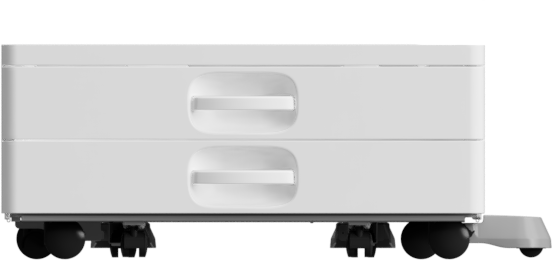

Paper Feed Unit PB3220

Optional 2-tray paper feed unit that increases the paper capacity of the device.

Capacity: 1,100 (2 x 550) sheets
Paper size: A5–SRA3
Paper weight: 60–300 g/m2
Power consumption: 21 W or less
Dimensions (W x D x H): 587 x 685 x 247 mm
Weight: 22.1 kg

Notes:
Cannot be installed with Paper Feed Unit PB3250,LCT PB3260,Caster Table Type M3
Paper Feed Unit PB3220

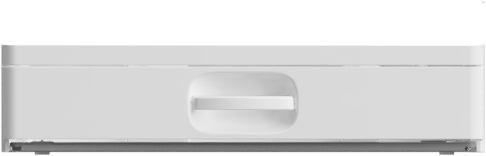

Paper Feed Unit PB3250

Optional 1-tray paper feed unit that increases the paper capacity of the device.

Capacity: 550 sheets
Paper size: B6–SRA3
Envelopes: COM10, Monarch SEF, C6–C5
Custom paper size: 90–320 x 148–457.2 mm
Paper weight: 60–300 g/m2
Power consumption: 19 W or less
Dimensions (W x D x H): 587 x 685 x 120 mm
Weight: 10.9 kg

Notes:
Cannot be installed with Paper Feed Unit PB3220,LCT PB3260,LCT RT3030,Booklet Finisher SR3220,Hybrid Finisher SR3210,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Paper Feed Unit PB3250
Caster Table Type M3

Provides a base with casters (wheels) to easily move the device on a floor standing configuration.

Dimensions (W x D x H): 668 x 723 x 76.2 mm—with stabiliser feet; 587 x 616 x 76.2 mm—without stabiliser feet
Weight: 8.23 kg or less

Note: Mainframe feet will be retracted when the caster table is attached, reducing the total configuration height by 5 mm.

Notes:
Cannot be installed with Paper Feed Unit PB3220,LCT PB3260,LCT RT3030,Hybrid Finisher SR3210,Booklet Finisher SR3220,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Caster table Type M3

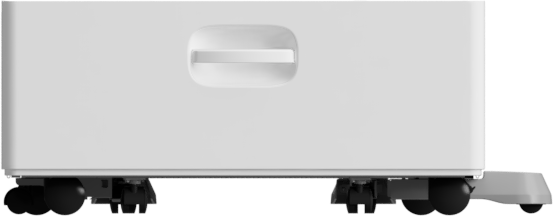

LCT PB3260

Optional tandem Large Capacity Tray significantly increasing the capacity of the device.

Capacity: 2,000 (2 x 1,000) sheets
Paper size: A4
Paper weight: 60–300 g/m2
Dimensions (W x D x H): 587 x 685 x 247 mm
Weight: 22 kg
Power consumption: 15 W or less

Notes:
Cannot be installed with Paper Feed Unit PB3250,Paper Feed Unit PB3220,Caster Table Type M3
LCT PB3260
LCT RT3030

Optional side Large Capacity Tray significantly increasing the capacity of the device.

Capacity: 1,500 sheets
Paper size: A4, B5
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 340 x 544.5 x 290 mm
Weight: 9.8 kg
Power consumption:13 W or less

Notes:
Cannot be installed with Paper Feed Unit PB3250,Caster Table Type M3
One of the following must also be selected: LCT PB3260,Paper Feed Unit PB3220
Side Tray LCIT RT3030
1-Bin Tray BN3110

Provides an additional output tray above the standard internal tray or optional Bridge Unit/Internal Finisher.

Paper capacity: 125 sheets
Dimensions (W x D x H): 444 x 450 x 150 mm
Weight: 1.4 kg or less

1 Bin Tray BN3110
Internal Shift Sort Tray SH3070

Enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.

Capacity: 250 sheets (A4 or smaller), 125 sheets (B4 or larger)
Paper size: 320 mm x 600 mm or smaller; 320 mm x 1,260 mm—configurable in SP mode
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 420 x 489 x 107 mm; 447 x 489 x 107 mm with tray extended
Weight: 1.4 kg or less
Power consumption: 4.3 W or less

Notes:
Cannot be installed with Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Finisher SR3130,Bridge Unit BU3070,Side Tray M3,Internal Multi-Fold Unit FD3000,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Internal Shift Tray SH3070

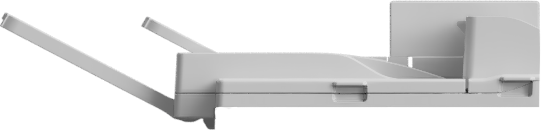

Side Tray M3

Provides an additional exit point if a finisher is not attached.

Output to internal tray: 250 sheets (A4), 125 sheets (B4)
Output to left side: 125 sheets
Paper size:
320 x 600 mm or smaller—output to internal tray
320 x 1,260 mm—output to internal tray, configurable in SP Mode
320 x 457.2 mm or smaller—output to left side
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 676 x 549 x 156 mm; 800 x 549 x 156 mm with tray extended
Weight: 3.8 kg or less
Power consumption: 12 W or less



Notes:
Cannot be installed with Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Finisher SR3130,Bridge Unit BU3070,Internal Shift Sort Tray SH3070,Finisher SR3230,Booklet Finisher SR3240,Internal Multi-Fold Unit FD3000,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Side Tray Type M3

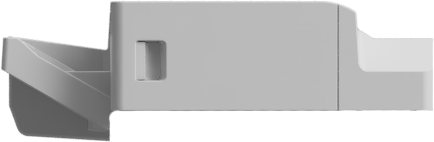

Internal Finisher SR3130

Provides multi-position stapling and optional hole-punching. Recommended for offices with limited floor space.

Capacity: 500 sheets
Paper size: A6–SRA3; custom size 90–320 mm x 148–1,260 mm
Paper weight: 52–300 g/m2
Staple capacity: 50 sheets
Staple position: 2 staples, top and bottom
Staple paper weight: 52–105 g/m2
Optional punch unit PU3040 available
Dimensions (W x D x H): 546 x 523 x 170 mm; 720 x 523 x 170 mm with tray extended
Weight: 12.8 kg or less
Power consumption: 47 W or less; 60 W or less with punch unit

Notes:
Cannot be installed with Booklet Finisher SR3220,Hybrid Finisher SR3210,Bridge Unit BU3070,Side Tray M3,Internal Shift Sort Tray SH3070,Finisher SR3230,Booklet Finisher SR3240,Internal Multi-Fold Unit FD3000,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Finisher SR3130

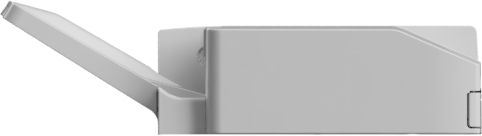

Internal Multi-Fold Unit FD3000

Offers four types of single-sheet folding, including Z-fold, half-fold, outer tri-fold, and inner tri-fold within the original footprint as it is installed in the exit tray.

Fold types: Z-fold, half-fold, inner tri-fold, outer tri-fold

Paper size:
Multi-folding unit only
Z-fold, half-fold—A4–A3, B4
Outer tri-fold, inner tri-fold—A4–A3
When connected to finishers SR3210 and SR3230
Z-fold—A4–A3, B4
Half-fold—A4–A3, B4, 12" x 18", 12.6" x 17.7" (SRA3)
Outer tri-fold, inner tri-fold—A4–A3

Paper weight: 52–300 g/m2
Dimensions: 612 x 555 x 184 mm
Weight: 15 kg

Notes:
Cannot be installed with Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Bridge Unit BU3070,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC
Internal Multi Fold Unit FD3000

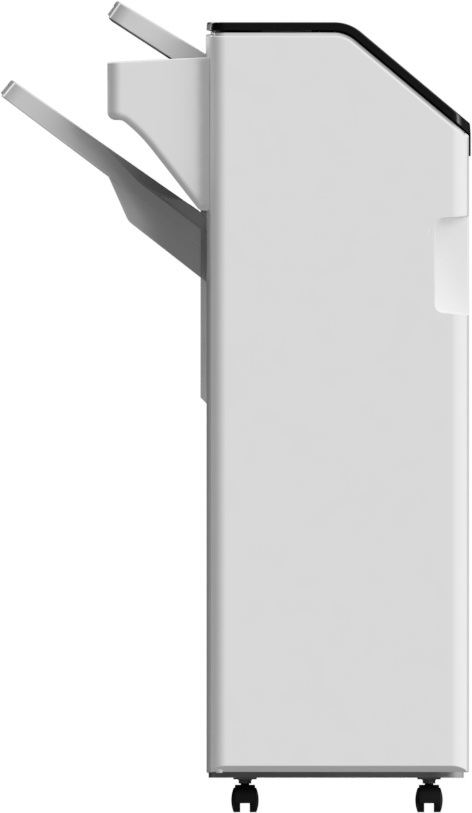

Hybrid Finisher SR3210

Offers both staple-free binding up to 5 sheets (10 pages) and conventional stapling to fasten together sheets with staples. Staple-free technology reduces need to restock staples, increases safety, and makes paper recycling easier.

Capacity: 1,000 sheets
Paper size: B6–SRA3, custom size 90 x 139.7 – 320 x 600 mm
Paper weight: 52–169 g/m2 (proof tray); 52–300 g/m(shift tray)
Staple capacity: 2–50 sheets (A4 or smaller); 2–30 sheets (B4 or larger)
Staple position: Top, bottom, 2 staples
Stapleless binding: 2–5 sheets, single or double row, top left
Optional punch unit PU3050 available
Dimensions (W x D x H): 563 x 620 x 960 mm
Weight: 27 kg or less
Power consumption: 35.4 W or less

Notes:
Cannot be installed with Booklet Finisher SR3220,Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Finisher SR3230,Booklet Finisher SR3240,Paper Feed Unit PB3250,Caster Table Type M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Bridge Unit BU3070,Internal Multi-Fold Unit FD3000
One of the following must also be selected: Paper Feed Unit PB3220,LCT PB3260
Finisher SR3210

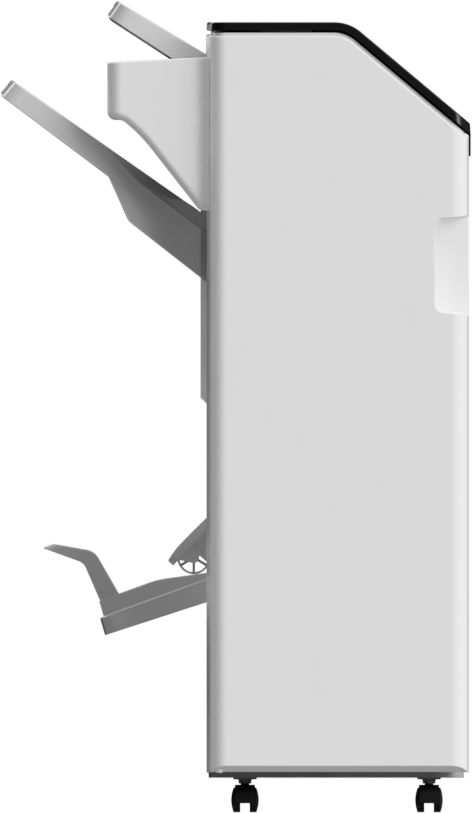

Booklet Finisher SR3220
Allows documents to be professionally finished as saddle-stitched booklets. Provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.

Capacity: 1,000 sheets
Paper size: B6–SRA3, custom size 90 x 139.7–320 x 600 mm
Paper weight: 52–169 g/m2—proof tray; 52–300 g/m2—shift tray
Staple capacity: 50 sheets
Staple positions: top, bottom, 2 staple, booklet
Staple paper weight: 52-105 g/m2
Saddle stitch staple: 15 sheets (60-page booklet)
Optional punch unit PU3050 available
Dimensions (W x D x H): 563 x 620 x 960 mm
Weight: 39.6 kg
Power consumption: 35.4 W or less
Notes:
Cannot be installed with Hybrid Finisher SR3210,Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Finisher SR3230,Booklet Finisher SR3240,Paper Feed Unit PB3250,Caster Table Type M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Bridge Unit BU3070,Internal Multi-Fold Unit FD3000
One of the following must also be selected: Paper Feed Unit PB3220,LCT PB3260
Finisher booklet SR3220

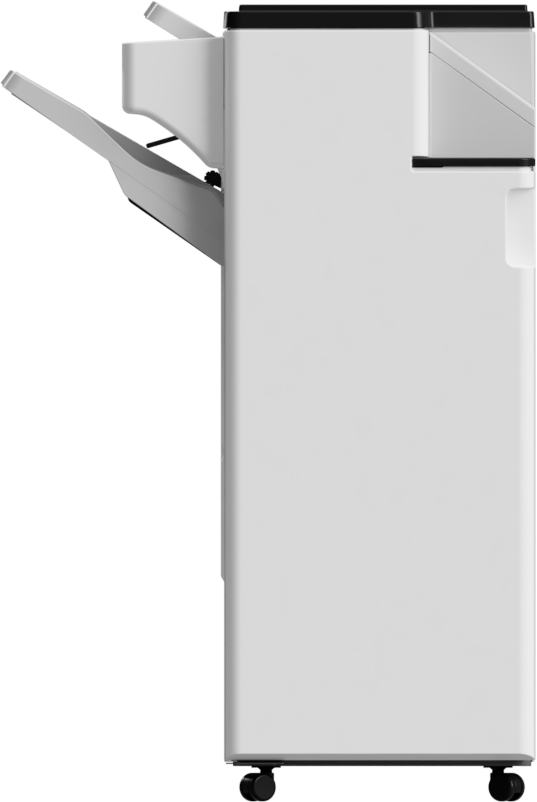

Finisher SR3230

Provides multi-position stapling and optional hole punching.

Capacity: 3,000 sheets
Paper size: B6–SRA3, custom size 90 x 139.7–330.2 x 487.7 mm
Paper weight: 52–220 g/m2 (proof tray); 52–300 g/m2 (shift tray)
Staple capacity: 50 sheets
Staple positions: Top, bottom, 2 staples, top slant
Staple paper weight: 52–105 g/m2
Optional punch unit PU3060 available
Dimensions (W x D x H): 657 x 613 x 960 mm
Weight: 33.5 kg or less; 38 kg or less—with punch unit
Power consumption: 67 W or less

Notes:
Cannot be installed with Booklet Finisher SR3240,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Paper Feed Unit PB3250,Caster Table Type M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC
One of the following must also be selected: Bridge Unit BU3070,Internal Multi-Fold Unit FD3000
One of the following must also be selected: Paper Feed Unit PB3220,LCT PB3260
Finisher SR3230

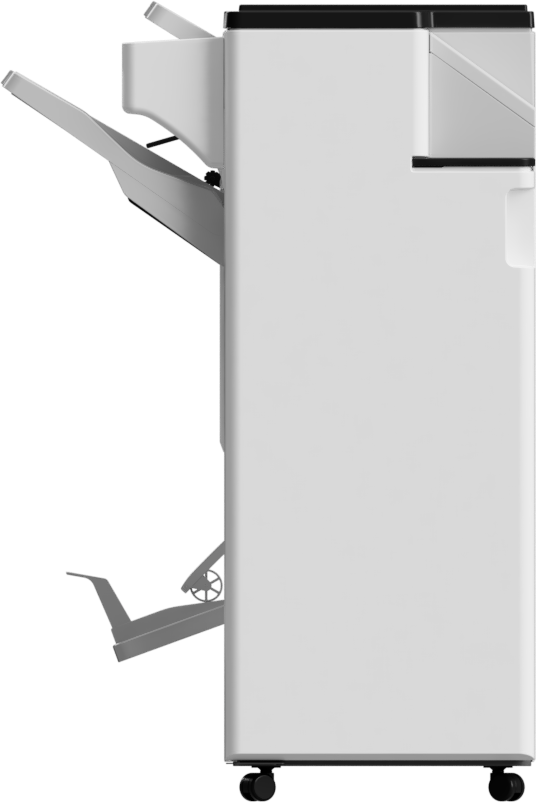

Booklet Finisher SR3240

Allows documents to be professionally finished as saddle-stitched booklets. Provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.

Capacity: 2,000 sheets
Paper size: A6–13" x 19.2", B6; custom size 90 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 52–220 g/m2—proof tray, 52–300 g/m2—shift tray
Staple capacity: 50 sheets
Staple position: Top, bottom, 2 staples, top slant, booklet
Staple paper weight: 52–105 g/m2
Saddle stitch staple: 20 sheets (A3–B5)
Optional punch unit PU3060 available
Dimensions (W x D x H): 657 x 613 x 960 mm; 756 x 613 x 960 mm with tray extended
Weight: 52.5 kg or less
Power consumption: 67 W or less

Notes:
Cannot be installed with Finisher SR3230,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Paper Feed Unit PB3250,Caster Table Type M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC
One of the following must also be selected: Bridge Unit BU3070,Internal Multi-Fold Unit FD3000
One of the following must also be selected: Paper Feed Unit PB3220,LCT PB3260
Finisher booklet SR3240
Punch Unit PU3040 NA

Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.

Notes:
By choosing this option the Internal Finisher SR3130 will be added to the configuration.
Cannot be installed with Punch Unit PU3040 EU,Punch Unit PU3040 SC,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Bridge Unit BU3070,Side Tray M3,Internal Multi-Fold Unit FD3000,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Punch Unit PU3040 EU

Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.

Notes:
By choosing this option the Internal Finisher SR3130 will be added to the configuration.
Cannot be installed with Punch Unit PU3040 NA,Punch Unit PU3040 SC,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Bridge Unit BU3070,Side Tray M3,Internal Multi-Fold Unit FD3000,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Punch Unit PU3040 SC

Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.

Notes:
By choosing this option the Internal Finisher SR3130 will be added to the configuration.
Cannot be installed with Punch Unit PU3040 NA,Punch Unit PU3040 EU,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Bridge Unit BU3070,Side Tray M3,Internal Multi-Fold Unit FD3000,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Punch Unit PU3050 NA

Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.

Notes:
Cannot be installed with Punch Unit PU3050 EU,Punch Unit PU3050 SC,Paper Feed Unit PB3250,Caster Table Type M3,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220
Punch Unit PU3050 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 SC,Paper Feed Unit PB3250,Caster Table Type M3,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220
Punch Unit PU3050 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 EU,Paper Feed Unit PB3250,Caster Table Type M3,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220
Punch Unit PU3060 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3060 EU,Punch Unit PU3060 SC,Paper Feed Unit PB3250,Caster Table Type M3,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC
One of the following must also be selected: Booklet Finisher SR3240,Finisher SR3230
Punch Unit PU3060 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3060 NA,Punch Unit PU3060 SC,Paper Feed Unit PB3250,Caster Table Type M3,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC
One of the following must also be selected: Booklet Finisher SR3240,Finisher SR3230
Punch Unit PU3060 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3060 NA,Punch Unit PU3060 EU,Paper Feed Unit PB3250,Caster Table Type M3,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC
One of the following must also be selected: Booklet Finisher SR3240,Finisher SR3230

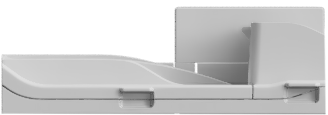

Bridge Unit BU3070
Required when a mainframe is configured with an external finisher. Transports pages from the standard exit area into a finisher for inline stapling or hole punching.
Notes:
Cannot be installed with Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Internal Multi-Fold Unit FD3000,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220,Booklet Finisher SR3240,Finisher SR3230
Bridge unit BU3070
PostScript 3 Unit Type M29
Genuine Adobe PostScript 3 printer driver.
IPDS Unit Type M29
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
XPS Direct Print Option Type M29
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
OCR Unit Type M13
Scans and creates editable text files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
Fax Type M29

Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory.

Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.

G3 Fax Type M29
Additional G3 line. Up to two units can be installed.
Notes:
By choosing this option the Fax Type M29 will be added to the configuration.
Fax Connection Unit Type M29
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax. Supports max 6 sub-connections.
Notes:
By choosing this option the Fax Type M29 will be added to the configuration.
Fax Memory Unit Type M19
64 MB additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Notes:
By choosing this option the Fax Type M29 will be added to the configuration.
Marker Type 30

A refill ink for ADF verification stamp that places a small mark on each page scanned or sent in immediate Transmission Mode.

4 markers/box

Yield: 12,000 pages


Notes:
By choosing this option the Fax Type M29 will be added to the configuration.
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,File Format Converter Type M19,Extended USB Board Type M19
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,File Format Converter Type M19,Extended USB Board Type M19
Extended USB Board Type M19
Enables printing from USB Type B port.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,IEEE 1284 Interface Board Type M19,File Format Converter Type M19
File Format Converter Type M19
Allows users to save copy and print jobs stored on the document server to a computer.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,IEEE 1284 Interface Board Type M19,Extended USB Board Type M19
NFC Card Reader Unit Type M29
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
Notes:
Cannot be installed with Card Reader Unit Built-in Type M29,External Keyboard Bracket Type M19
Card Reader Unit Built-in Type M29

A plastic card reader cover that conceals the card reader and its cabling. A card reader is not included.

Notes:
Cannot be installed with NFC Card Reader Unit Type M29,External Keyboard Bracket Type M19
Optional Counter Interface Unit Type M12

Used with external third party counting devices for accounting and charge-back purposes.

Key Counter Bracket Type M3
4-pin interface for mounting an external key counter to an MFP.
External Keyboard Bracket Type M19
For attaching an external keyboard to the device.
Notes:
Cannot be installed with NFC Card Reader Unit Type M29,Card Reader Unit Built-in Type M29
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 100 Licence
Supports multilingual data without restrictions.

Standard inclusions

  • 10.1-inch Smart Operation Panel
  • 1.46 GHz CPU
  • 2 GB RAM
  • 320 GB HDD
  • 2 x 550-sheet input tray + 100-sheet bypass tray
  • Low TEC and Energy Star compliant

Current configuration

MP 5055SP
587 mm x684 mm x788 mm (W x D x H)
62.5 kg
Selected Options:
    MP 5055SP

    {"configuratorid":"cef6206b-5b83-4a9e-9d62-ea8504807c13","productid":"2044dc89-3b1b-45c5-8079-1bbd4d8fe45f","edpcode":"417775","productdisplayname":"MP 5055SP","width":587.0,"height":788.0,"depth":684.0,"weight":62.5,"mainframe_imageurl":"-/media/all-regional/images/product-images/office-solutions/printers-and-copiers/mfp-black-and-white/417733/configurator/mainframe.png?dmc=0&hash=04A94F4828F444ABF196CE79E82C50D2","configurator_hash":"5c131091-35c5-4ef2-8384-3275395d88b8","options":{"416478":{"edpcode":"416478","displayname":"Platen Cover PN2000","extras":[],"width":561.0,"height":63.8,"depth":497.0,"weight":2.3,"show_image":true,"hide_until_required":false},"416915":{"edpcode":"416915","displayname":"ARDF DF3090","extras":[],"width":565.0,"height":125.0,"depth":500.0,"weight":8.2,"show_image":true,"hide_until_required":false},"417495":{"edpcode":"417495","displayname":"SPDF DF3100","extras":[],"width":587.0,"height":175.0,"depth":520.0,"weight":13.9,"show_image":true,"hide_until_required":false},"416213":{"edpcode":"416213","displayname":"ADF Handle Type C","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417268":{"edpcode":"417268","displayname":"Paper Feed Unit PB3220","extras":[],"width":587.0,"height":247.0,"depth":685.0,"weight":22.1,"show_image":true,"hide_until_required":false},"408114":{"edpcode":"408114","displayname":"Paper Feed Unit PB3250","extras":[],"width":587.0,"height":120.0,"depth":685.0,"weight":10.9,"show_image":true,"hide_until_required":false},"416737":{"edpcode":"416737","displayname":"Caster Table Type M3","extras":[],"width":668.0,"height":76.2,"depth":723.0,"weight":8.23,"show_image":true,"hide_until_required":false},"408118":{"edpcode":"408118","displayname":"LCT PB3260","extras":[],"width":587.0,"height":247.0,"depth":685.0,"weight":22.0,"show_image":true,"hide_until_required":false},"416549":{"edpcode":"416549","displayname":"LCT RT3030","extras":[],"width":340.0,"height":290.0,"depth":544.5,"weight":9.8,"show_image":true,"hide_until_required":false},"417585":{"edpcode":"417585","displayname":"1-Bin Tray BN3110","extras":[],"width":444.0,"height":150.0,"depth":450.0,"weight":1.4,"show_image":true,"hide_until_required":false},"416550":{"edpcode":"416550","displayname":"Internal Shift Sort Tray SH3070","extras":[],"width":420.0,"height":107.0,"depth":489.0,"weight":1.4,"show_image":true,"hide_until_required":false},"417591":{"edpcode":"417591","displayname":"Side Tray M3","extras":[],"width":676.0,"height":156.0,"depth":549.0,"weight":3.8,"show_image":true,"hide_until_required":false},"417589":{"edpcode":"417589","displayname":"Internal Finisher SR3130","extras":[],"width":546.0,"height":170.0,"depth":523.0,"weight":12.8,"show_image":true,"hide_until_required":false},"417838":{"edpcode":"417838","displayname":"Internal Multi-Fold Unit FD3000","extras":[],"width":612.0,"height":184.0,"depth":555.0,"weight":15.0,"show_image":true,"hide_until_required":false},"417483":{"edpcode":"417483","displayname":"Hybrid Finisher SR3210","extras":[],"width":563.0,"height":960.0,"depth":620.0,"weight":27.0,"show_image":true,"hide_until_required":false},"417484":{"edpcode":"417484","displayname":"Booklet Finisher SR3220","extras":[],"width":563.0,"height":960.0,"depth":620.0,"weight":39.6,"show_image":true,"hide_until_required":false},"417487":{"edpcode":"417487","displayname":"Finisher SR3230","extras":[],"width":657.0,"height":960.0,"depth":613.0,"weight":33.5,"show_image":true,"hide_until_required":false},"417488":{"edpcode":"417488","displayname":"Booklet Finisher SR3240","extras":[],"width":657.0,"height":960.0,"depth":613.0,"weight":52.5,"show_image":true,"hide_until_required":false},"416615":{"edpcode":"416615","displayname":"Punch Unit PU3040 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416616":{"edpcode":"416616","displayname":"Punch Unit PU3040 EU","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416617":{"edpcode":"416617","displayname":"Punch Unit PU3040 SC","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416609":{"edpcode":"416609","displayname":"Punch Unit PU3050 NA","extras":[],"width":130.0,"height":100.0,"depth":490.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416610":{"edpcode":"416610","displayname":"Punch Unit PU3050 EU","extras":[],"width":130.0,"height":100.0,"depth":490.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416611":{"edpcode":"416611","displayname":"Punch Unit PU3050 SC","extras":[],"width":130.0,"height":100.0,"depth":490.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416612":{"edpcode":"416612","displayname":"Punch Unit PU3060 NA","extras":[],"width":130.0,"height":100.0,"depth":490.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416613":{"edpcode":"416613","displayname":"Punch Unit PU3060 EU","extras":[],"width":130.0,"height":100.0,"depth":490.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416614":{"edpcode":"416614","displayname":"Punch Unit PU3060 SC","extras":[],"width":130.0,"height":100.0,"depth":490.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417587":{"edpcode":"417587","displayname":"Bridge Unit BU3070","extras":[],"width":412.0,"height":143.0,"depth":466.0,"weight":3.2,"show_image":true,"hide_until_required":false},"417877":{"edpcode":"417877","displayname":"PostScript 3 Unit Type M29","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417856":{"edpcode":"417856","displayname":"IPDS Unit Type M29","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417859":{"edpcode":"417859","displayname":"XPS Direct Print Option Type M29","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417430":{"edpcode":"417430","displayname":"OCR Unit Type M13","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417867":{"edpcode":"417867","displayname":"Fax Type M29","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417869":{"edpcode":"417869","displayname":"G3 Fax Type M29","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417862":{"edpcode":"417862","displayname":"Fax Connection Unit Type M29","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417518":{"edpcode":"417518","displayname":"Fax Memory Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"334049":{"edpcode":"334049","displayname":"Marker Type 30","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417493":{"edpcode":"417493","displayname":"IEEE 802.11a/g/n Interface Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417596":{"edpcode":"417596","displayname":"IEEE 1284 Interface Board Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417566":{"edpcode":"417566","displayname":"Extended USB Board Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417508":{"edpcode":"417508","displayname":"File Format Converter Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417863":{"edpcode":"417863","displayname":"NFC Card Reader Unit Type M29","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417864":{"edpcode":"417864","displayname":"Card Reader Unit Built-in Type M29","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417111":{"edpcode":"417111","displayname":"Optional Counter Interface Unit Type M12","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416869":{"edpcode":"416869","displayname":"Key Counter Bracket Type M3","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417578":{"edpcode":"417578","displayname":"External Keyboard Bracket Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"413009":{"edpcode":"413009","displayname":"Unicode Font Package for SAP 1 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"413010":{"edpcode":"413010","displayname":"Unicode Font Package for SAP 10 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"413011":{"edpcode":"413011","displayname":"Unicode Font Package for SAP 100 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false}},"rules":[{"condition":{"condition_name":"TrueCondition","trigger_options":["416478"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["416915","417495","416213"],"should_validate_after_excute":false,"excludes":["416915","417495","416213"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416915"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["416478","417495"],"should_validate_after_excute":false,"excludes":["416478","417495"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417495"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["416478","416915"],"should_validate_after_excute":false,"excludes":["416478","416915"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416213"]},"actions":[{"action_name":"RequireOneAction","affect_to_options":["416915","417495"],"should_validate_after_excute":true,"require_ones":["416915","417495"]},{"action_name":"ExcludeOptionAction","affect_to_options":["416478"],"should_validate_after_excute":false,"excludes":["416478"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417268"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["408114","408118","416737"],"should_validate_after_excute":false,"excludes":["408114","408118","416737"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["408114"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417268","408118","416549","417484","417483","417487","417488","416609","416610","416611","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["417268","408118","416549","417484","417483","417487","417488","416609","416610","416611","416612","416613","416614"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416737"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417268","408118","416549","417483","417484","417487","417488","416609","416610","416611","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["417268","408118","416549","417483","417484","417487","417488","416609","416610","416611","416612","416613","416614"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["408118"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["408114","417268","416737"],"should_validate_after_excute":false,"excludes":["408114","417268","416737"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416549"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["408114","416737"],"should_validate_after_excute":false,"excludes":["408114","416737"]},{"action_name":"RequireOneAction","affect_to_options":["408118","417268"],"should_validate_after_excute":true,"require_ones":["408118","417268"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416550"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417484","417483","417589","417587","417591","417838","417487","417488","416615","416616","416617","416609","416610","416611","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["417484","417483","417589","417587","417591","417838","417487","417488","416615","416616","416617","416609","416610","416611","416612","416613","416614"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417591"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417484","417483","417589","417587","416550","417487","417488","417838","416615","416616","416617","416609","416610","416611","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["417484","417483","417589","417587","416550","417487","417488","417838","416615","416616","416617","416609","416610","416611","416612","416613","416614"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417589"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417484","417483","417587","417591","416550","417487","417488","417838","416609","416610","416611","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["417484","417483","417587","417591","416550","417487","417488","417838","416609","416610","416611","416612","416613","416614"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417838"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417589","416550","417591","417587","416615","416616","416617"],"should_validate_after_excute":false,"excludes":["417589","416550","417591","417587","416615","416616","416617"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417483"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417484","417589","416550","417591","417487","417488","408114","416737","416615","416616","416617","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["417484","417589","416550","417591","417487","417488","408114","416737","416615","416616","416617","416612","416613","416614"]},{"action_name":"RequireOneAction","affect_to_options":["417587","417838"],"should_validate_after_excute":true,"require_ones":["417587","417838"]},{"action_name":"RequireOneAction","affect_to_options":["417268","408118"],"should_validate_after_excute":true,"require_ones":["417268","408118"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417484"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417483","417589","416550","417591","417487","417488","408114","416737","416615","416616","416617","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["417483","417589","416550","417591","417487","417488","408114","416737","416615","416616","416617","416612","416613","416614"]},{"action_name":"RequireOneAction","affect_to_options":["417587","417838"],"should_validate_after_excute":true,"require_ones":["417587","417838"]},{"action_name":"RequireOneAction","affect_to_options":["417268","408118"],"should_validate_after_excute":true,"require_ones":["417268","408118"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417487"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417488","417484","417483","417589","416550","417591","408114","416737","416615","416616","416617","416609","416610","416611"],"should_validate_after_excute":false,"excludes":["417488","417484","417483","417589","416550","417591","408114","416737","416615","416616","416617","416609","416610","416611"]},{"action_name":"RequireOneAction","affect_to_options":["417587","417838"],"should_validate_after_excute":true,"require_ones":["417587","417838"]},{"action_name":"RequireOneAction","affect_to_options":["417268","408118"],"should_validate_after_excute":true,"require_ones":["417268","408118"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417488"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417487","417484","417483","417589","416550","417591","408114","416737","416615","416616","416617","416609","416610","416611"],"should_validate_after_excute":false,"excludes":["417487","417484","417483","417589","416550","417591","408114","416737","416615","416616","416617","416609","416610","416611"]},{"action_name":"RequireOneAction","affect_to_options":["417587","417838"],"should_validate_after_excute":true,"require_ones":["417587","417838"]},{"action_name":"RequireOneAction","affect_to_options":["417268","408118"],"should_validate_after_excute":true,"require_ones":["417268","408118"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416615"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["417589"],"should_validate_after_excute":false,"requires":["417589"]},{"action_name":"ExcludeOptionAction","affect_to_options":["416616","416617","417484","417483","416550","417587","417591","417838","417487","417488","416609","416610","416611","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["416616","416617","417484","417483","416550","417587","417591","417838","417487","417488","416609","416610","416611","416612","416613","416614"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416616"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["417589"],"should_validate_after_excute":false,"requires":["417589"]},{"action_name":"ExcludeOptionAction","affect_to_options":["416615","416617","417484","417483","416550","417587","417591","417838","417487","417488","416609","416610","416611","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["416615","416617","417484","417483","416550","417587","417591","417838","417487","417488","416609","416610","416611","416612","416613","416614"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416617"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["417589"],"should_validate_after_excute":false,"requires":["417589"]},{"action_name":"ExcludeOptionAction","affect_to_options":["416615","416616","417484","417483","416550","417587","417591","417838","417487","417488","416609","416610","416611","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["416615","416616","417484","417483","416550","417587","417591","417838","417487","417488","416609","416610","416611","416612","416613","416614"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416609"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["416610","416611","408114","416737","416550","417589","417591","417487","417488","416615","416616","416617","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["416610","416611","408114","416737","416550","417589","417591","417487","417488","416615","416616","416617","416612","416613","416614"]},{"action_name":"RequireOneAction","affect_to_options":["417483","417484"],"should_validate_after_excute":true,"require_ones":["417483","417484"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416610"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["416609","416611","408114","416737","416550","417589","417591","417487","417488","416615","416616","416617","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["416609","416611","408114","416737","416550","417589","417591","417487","417488","416615","416616","416617","416612","416613","416614"]},{"action_name":"RequireOneAction","affect_to_options":["417483","417484"],"should_validate_after_excute":true,"require_ones":["417483","417484"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416611"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["416609","416610","408114","416737","416550","417589","417591","417487","417488","416615","416616","416617","416612","416613","416614"],"should_validate_after_excute":false,"excludes":["416609","416610","408114","416737","416550","417589","417591","417487","417488","416615","416616","416617","416612","416613","416614"]},{"action_name":"RequireOneAction","affect_to_options":["417483","417484"],"should_validate_after_excute":true,"require_ones":["417483","417484"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416612"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["416613","416614","408114","416737","417484","417483","416550","417589","417591","416615","416616","416617","416609","416610","416611"],"should_validate_after_excute":false,"excludes":["416613","416614","408114","416737","417484","417483","416550","417589","417591","416615","416616","416617","416609","416610","416611"]},{"action_name":"RequireOneAction","affect_to_options":["417488","417487"],"should_validate_after_excute":true,"require_ones":["417488","417487"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416613"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["416612","416614","408114","416737","417484","417483","416550","417589","417591","416615","416616","416617","416609","416610","416611"],"should_validate_after_excute":false,"excludes":["416612","416614","408114","416737","417484","417483","416550","417589","417591","416615","416616","416617","416609","416610","416611"]},{"action_name":"RequireOneAction","affect_to_options":["417488","417487"],"should_validate_after_excute":true,"require_ones":["417488","417487"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416614"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["416612","416613","408114","416737","417484","417483","416550","417589","417591","416615","416616","416617","416609","416610","416611"],"should_validate_after_excute":false,"excludes":["416612","416613","408114","416737","417484","417483","416550","417589","417591","416615","416616","416617","416609","416610","416611"]},{"action_name":"RequireOneAction","affect_to_options":["417488","417487"],"should_validate_after_excute":true,"require_ones":["417488","417487"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417587"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417589","416550","417591","417838","416615","416616","416617"],"should_validate_after_excute":false,"excludes":["417589","416550","417591","417838","416615","416616","416617"]},{"action_name":"RequireOneAction","affect_to_options":["417483","417484","417488","417487"],"should_validate_after_excute":true,"require_ones":["417483","417484","417488","417487"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417869"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["417867"],"should_validate_after_excute":false,"requires":["417867"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417862"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["417867"],"should_validate_after_excute":false,"requires":["417867"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417518"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["417867"],"should_validate_after_excute":false,"requires":["417867"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["334049"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["417867"],"should_validate_after_excute":false,"requires":["417867"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417493"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417596","417508","417566"],"should_validate_after_excute":false,"excludes":["417596","417508","417566"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417596"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417493","417508","417566"],"should_validate_after_excute":false,"excludes":["417493","417508","417566"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417566"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417493","417596","417508"],"should_validate_after_excute":false,"excludes":["417493","417596","417508"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417508"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417493","417596","417566"],"should_validate_after_excute":false,"excludes":["417493","417596","417566"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417863"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417864","417578"],"should_validate_after_excute":false,"excludes":["417864","417578"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417864"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417863","417578"],"should_validate_after_excute":false,"excludes":["417863","417578"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417578"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417863","417864"],"should_validate_after_excute":false,"excludes":["417863","417864"]}]}],"affect_group":[["416478","416915","417495","416213"],["417268","408114","408118","416737","416549","417484","417483","416550","417589","417587","417591","417838","417487","417488","416615","416616","416617","416609","416610","416611","416612","416613","416614"],["417585"],["417877"],["417856"],["417859"],["417430"],["417867","417869","417862","417518","334049"],["417493","417596","417508","417566"],["417863","417864","417578"],["417111"],["416869"],["413009"],["413010"],["413011"]],"preselect_configs":{},"min_config":{"must_select_at_least_one_option":false,"requires":[],"requireones":[["416478","416915","417495"]]}}
