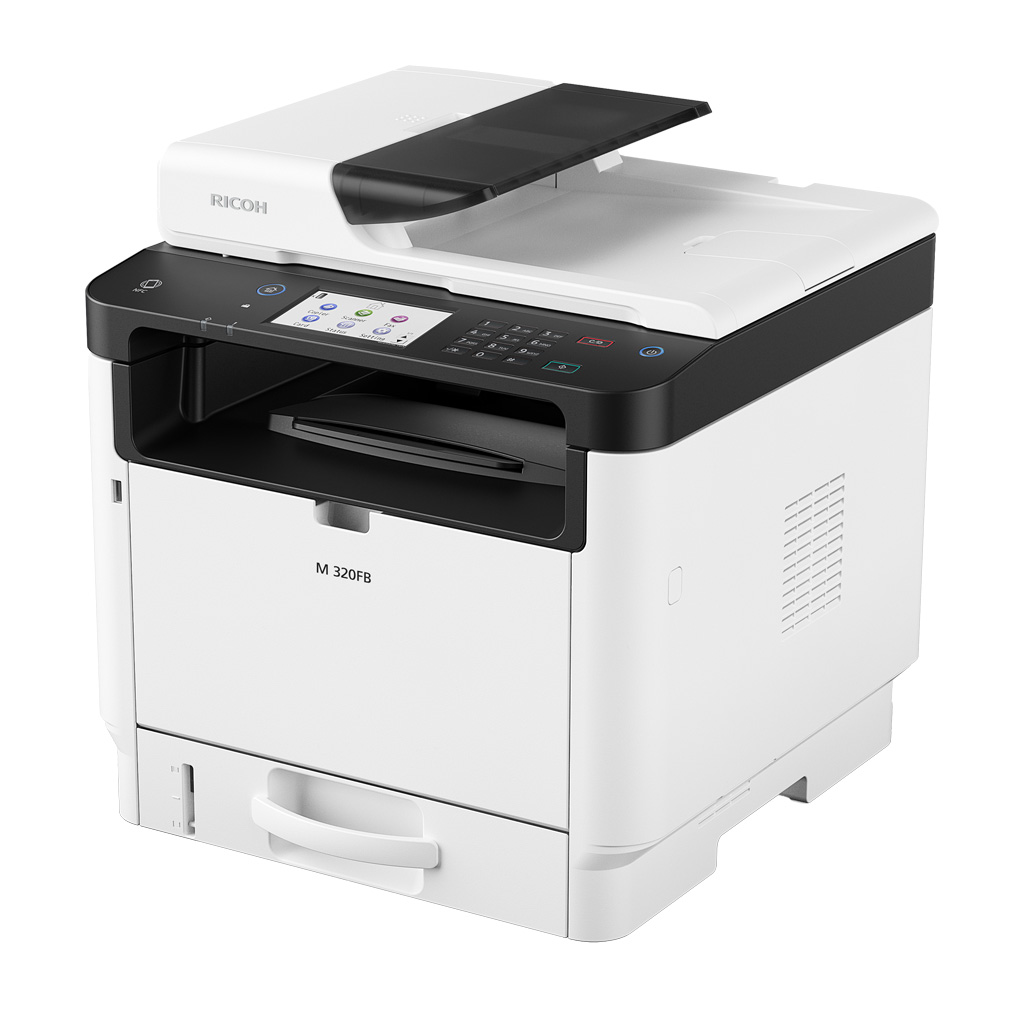

M 320FB A4 black and white MFP

Copy, print, scan, fax
Prints up to 32 ppm
Optional dual band Wi-Fi
For Windows, Mac, and Linux

Productivity you can count on

These mono laser printers combine quality, speed and reliability, making them ideal for your small to medium professional business.

Your data – protected

Robust security layers have been added to keep your data secure. Network encryption ensures safe transmission of data while the Locked Print function prevents the unauthorised viewing of selected documents you need to keep confidential.

Easy operation
This compact fax-enabled 4-in-1 multi-function printer is easy to operate with its large colour touchscreen panel as well as smart device print capabilities via Mopria^®, AirPrint^® and RICOH Smart Device Connector.
Replace All-in-One print cartridges with ease
Simply slot in the new cartridge via the convenient full front-access design.
Handle more with flexible media outputs
Get attention with compelling text and images at up to 1,200 x 1,200 dpi on a wide range of media.
More options
Take advantage of the optional WiFi capability and 250-sheet optional second paper tray.

Download PDF brochure

Specifications

Functions: Copy, print, scan, fax
Colour: No
Memory - standard: 32 MB ROM
256 MB RAM
Operation panel: 4.3" touch panel

Physical dimensions (WxDxH)—mainframe: 405 x 392 x 420 mm
Weight—mainframe: 18 kg

Standard input capacity (sheets)

300

Maximum input capacity (sheets)

550

Standard output capacity (sheets)

Maximum output capacity (sheets)

Paper input configuration - standard

250-sheet paper tray, 50-sheet bypass tray, duplex unit, 35-sheet ARDF

Paper output configuration - standard

50-sheet face-down internal output tray

Supported media

Standard tray
Thin paper, thick paper 1, thick paper 2, plain paper, recycled paper, colour paper, pre-printed paper, pre-punched paper, letterhead, bond paper, cardstock, labels

Bypass tray
Thin paper, thick paper 1, thick paper 2, plain paper, recycled paper, colour paper, pre-printed paper, pre-punched paper, letterhead, bond paper, cardstock, labels, envelopes

Optional paper bank
Thin paper, thick paper 1, plain paper, recycled paper, colour paper, pre-printed paper, pre-punched paper, letterhead

Maximum paper size

Media weight (g/m2)

52–162

Interfaces - standard: 10Base-T/100Base-Tx (Ethernet)
USB 2.0 Type B x 1—rear
USB 2.0 Type A x 2—1x rear, 1x front
NFC tag
Interfaces - optional: IEEE 802.11b/g/n/ac (Wireless LAN) + Wi-Fi Direct
Network protocols - standard: TCP/IP

Copy speed

A4 SEF, single document, multiple copies
32 cpm—platen glass, 600 dpi
14 cpm—platen glass, 1,200 dpi
6 cpm—ARDF

First copy time

13 seconds or less—platen glass
16 seconds or less—ARDF

Copy resolution

Scanning
600 x 600 dpi; default—platen glass
300 x 600 dpi—ARDF

Copying
Windows
600 x 600 dpi, 1,200 x 600 dpi, 1,200 x 1,200 dpi—half speed

Macintosh
600 x 600 dpi

Linux
600 x 600 dpi, 1,200 x 1,200 dpi—half speed

Zoom range

25%–400% in 1% steps—600 x 600 dpi via platen glass, 25%–400% in 1% steps—300 x 600 dpi via ARDF

Enlargement ratios

122%, 141%, 200%, 400%

Reduction ratios

93%, 82%, 71%, 50%

Duplex copy

Supported

ID card copy

Supported

Print speed black and white: Simplex
32 ppm—600 x 600 dpi
14 ppm—1,200 x 1,200 dpi

Duplex
13 ppm—600 x 600 dpi
7 ppm—1,200 x 1,200 dpi
First print time: 7.1 seconds or less
Print resolution: 1,200 x 1,200 dpi
Page description languages (PDLs): PCL 5e, PCL 6, PostScript3 emulation
Printer drivers: PCL 5e, PCL 6, PostScript3 emulation
Duplex printing: Standard
Mobile printing: AirPrint, Mopria®, RICOH Smart Device Connector

Scan speed

Via platen glass
Black and white
145 mm/second—300 x 300 dpi
36 mm/second—600 x 600 dpi

Colour
48 mm/second—300 x 300 dpi
12 mm/second—600 x 600 dpi

Via ARDF
Black and white
64 mm/second, 13 ipm—600 x 300 dpi

Colour
22 mm/second, 4.5 ipm—600 x 300 dpi

Scan methods

Scan to email, Scan to folder, Scan to FTP, Scan to USB, TWAIN scanning

Colour scanning

Supported

Scan resolution

Standard
1,200 x 1,200 dpi—platen glass
600 x 600 dpi—ARDF
19,200 x 19,200 dpi—TWAIN
Maximum optical resolution is 1,200 dpi

Default
600 x 600 dpi—platen glass
300 x 600 dpi—ARDF

Scan to email

Authentication
SMTP authentication, POP3 before SMTP

Scan resolution
Platen glass
300 x 300 dpi (default), 600 x 600 dpi

ARDF
300 x 300 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF

Multi-page
TIFF, PDF

Scan to folder

Authentication
SMTP authentication, POP before SMTP authentication

Resolution
300 x 300 dpi

Scan to folder file types
Single-page
TIFF, JPEG, PDF

Multi-page
TIFF, PDF

TWAIN scanning

Scan speed
12 ipm—black and white
9 ipm—colour

Scan mode
True colour, greyscale, black and white

Scan resolution
Platen glass
75–19,200 dpi
Note: Maximum 19,200 dpi is selectable with software processing.

ARDF
75–600 dpi

Fax types: PC Fax, LAN-Fax
Fax circuit: PSTN, PABX
Fax modem speed: 33.6 Kbps–2,400 bps—with automatic shift down
Fax compression methods: MH, MR, MMR
Fax resolution: Standard
200 x 100 dpi—8 x 3.85 lines/mm

Fine, Photo
200 x 200 dpi—8 x 7.7 lines/mm
G3 fax transmission speed: Approximately 3 seconds—MMR, ITU-T #1 chart
Fax memory backup: Maximum 50 jobs maximum, 100 pages with ITU#1 standard
Quick dials: 8 (20 digits for name, 40 digits for numbers)

Authentication: User code authentication available with Locked Print
Wireless LAN security—WEP 64-bit, WEP 128-bit and AES, TKIP/AES, WPA
Network user authentication
Secure Print

Windows: Windows 8.1, Windows 10, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Macintosh: Mac OS 10.10–11

Standard: Web Image Monitor
Smart Organizing Monitor
Optional: Streamline NX—device management functions only
Device Manager NX
@Remote—limited functions
Printer Driver Packager NX
Mobile apps: RICOH Smart Device Connector

Power source: 220–240 V, 50/60 Hz, 4.3 Amps
Power consumption: 1,025 W—maximum power
520 W—printing
65.7 W—Ready Mode
0.87 W or less—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC): 0.423 kWh
Warm-up time: 30 seconds or less
Green labels: Hong Kong Energy Saving Label
