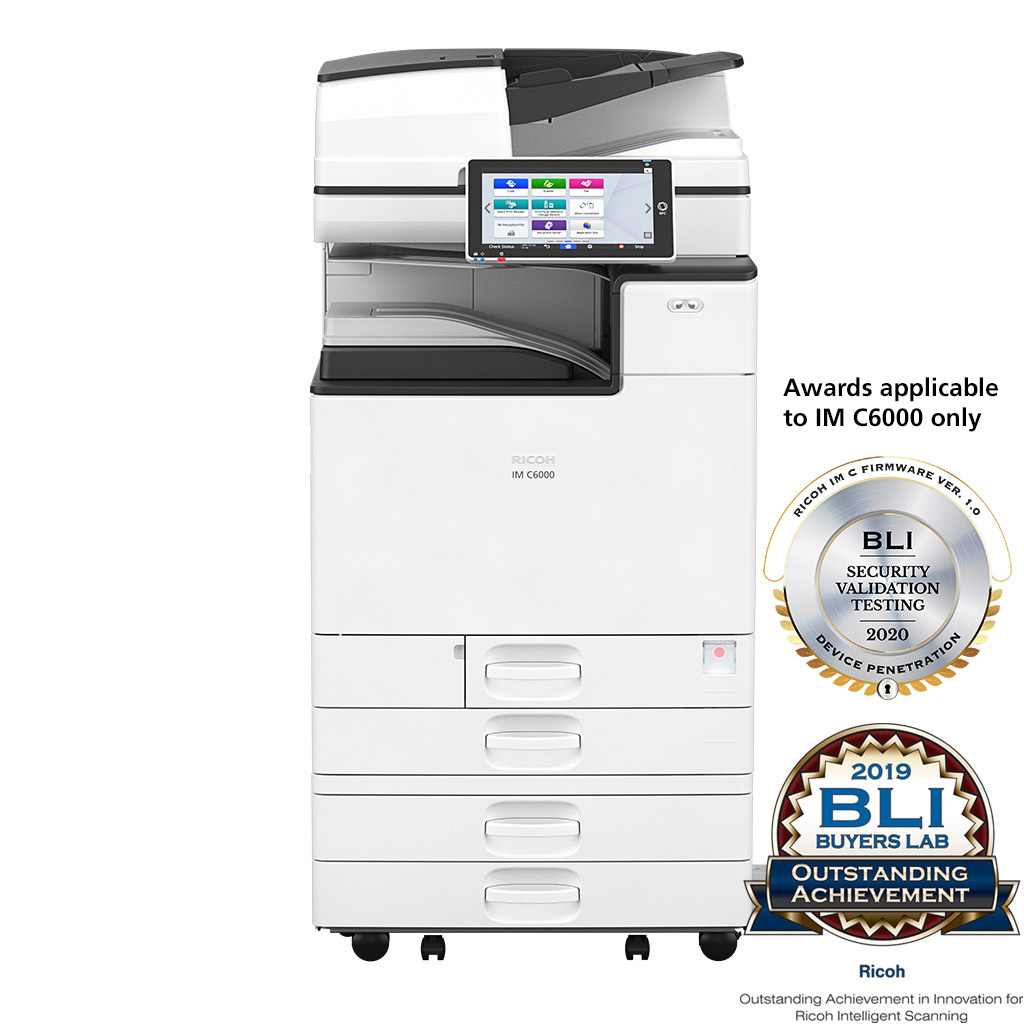

IM C6000 / IM C6000LT A3 colour MFP

  • Copy, print, scan, optional fax
  • Prints up to 60 ppm
  • Continuous updates via RICOH Always Current Technology
  • RICOH Smart Integration workflows

  1. Add a more colourful finishing touch
    Give ideas a fresh look with fast, colourful output and use the multiple finishing options for direct mail, presentations, menus and more
  2. Go mobile, go with the flow
    Capture and send information from your smartphone or tablet with the RICOH Smart Device Connector App
  3. Upgrade to productivity
    Download the latest cloud services, software and online apps to ensure your best ideas can be shared on the intuitive 10.1” LCD touch screen
  4. Go fast and environmental friendly
    Conserve energy with the motion sensor that powers up the Smart Operation Panel within one second of your touch

Simplify digital collaboration

Transform documents into easy-to-share digital files at up to 240 images per minute (ipm) with the single pass document feeder (SPDF). Use multiple Scan-to options for immediate delivery. Or, send files to cloud services, such as Dropbox™ and SharePoint™. Reduce dual original feeds with the optional Double Feed Detection Unit. Scan tickets, checks and more with the optional Small Paper Feeding Unit.

Account for everything

Set up users to enter a passcode or authenticate with optional card readers to release prints. Users can also authenticate and print from an Android® mobile device paired with an embedded Near Field Communications (NFC) tag. Issue chargebacks with optional RICOH Streamline NX. Rely on built-in encryption and keep OS-specific threats to a minimum with the Ricoh-only operating system.



Specifications

Functions
Copy, print, scan, optional fax
Colour
Yes
HDD
320 GB
Memory - standard
2 GB
Memory - optional
4 GB—maximum 4 GB
Operation panel
10.1-inch tilting colour WSVGA Smart Operation Panel
Physical dimensions (WxDxH)—mainframe
587 x 685 x 788 mm
Weight—mainframe
87.5 kg or less
Standard input capacity (sheets)
1,200
Maximum input capacity (sheets)
4,700
Standard output capacity (sheets)
500
250—B4 or larger
Maximum output capacity (sheets)
3,625
Paper input configuration - standard
2 x 550-sheet paper trays, 100-sheet bypass tray, SPDF DF3120, duplex unit
Paper output configuration - standard
500-sheet face-down internal output tray
Supported media

Tray 1
Plain paper, recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, glossy coated paper, coated paper, normal paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4

Tray 2
Plain paper, recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, glossy coated paper, coated paper, envelopes, normal paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4

Paper banks
Plain paper, recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, glossy coated paper, coated paper, envelopes, normal paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4

LCTs
Plain paper, recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, glossy coated paper, coated paper, normal paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4

Bypass tray
Plain paper, recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, glossy coated paper, coated paper, envelopes, label paper, OHP, thin paper, normal paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4

Maximum paper size
SRA3
Media weight (g/m2)
52–300
Interfaces - standard

Mainframe
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
USB Host Type A—2 ports
USB Type B—1 port

Smart Operation Panel
IEEE 802.11 b/g/n (Wireless LAN)1
Bluetooth2
SD card slot—SDHC memory card
USB Host Type A—USB Flash memory
USB Host Type A—1 port for USB keyboard2
USB Host Type mini B—for NFC card reader2
microSD card slot—ROM storage expansion2
NFC tag2

1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
2—Cannot be used for printing

Interfaces - optional

IEEE 1284/ECP
IEEE 802.11a/g/n (Wireless LAN)
USB device server (additional Ethernet/Gigabit Ethernet port)

Network protocols - standard
TCP/IP (IPv4, IPv6)
Copy speed
60 cpm
First copy time
2.9 seconds—black and white
4.2 seconds—colour
Copy resolution

600 x 600 dpi—4-bit

Note: Copy resolution when scanning.

Zoom range
25%–400% in 1% steps
Enlargement ratios
115%, 122%, 141%, 200%, 400%
Reduction ratios
93%, 82%, 75%, 71%, 65%, 50%, 25%
Duplex copy
Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
Book copy
Booklet, magazine, layout and booklet
ID card copy
Supported
User codes
1,000 user codes
Print speed colour
60 ppm
Print speed black and white
60 ppm
First print time
3.1 seconds black and white, 4.6 seconds colour
Print resolution

1,200 x 1,200 dpi—2-bit

Page description languages (PDLs)

Standard
PCL 5c, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Genuine Adobe PostScript 3, PDF Direct from Adobe, XPS Direct Print, PictBridge, IPDS

Printer drivers

Standard
PCL 5c, PCL 6, PostScript 3 emulation

Optional
Genuine Adobe PostScript 3

Duplex printing
Standard
Mobile printing
Yes
Print from USB/SD
Supported
Scan speed

120 ppm—single-sided, 200 x 200 dpi, via SPDF
110 ppm—single-sided, 300 x 300 dpi, via SPDF
240 ppm—duplex, 200 x 200 dpi, via SPDF
180 ppm—duplex, 300 x 300 dpi, via SPDF

Scan methods

Scan to USB/SD, Scan to email, Scan to webmail, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Colour scanning
Standard
Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi,
600 x 600 dpi, 1,200 x 1,200 dpi; default 200 x 200 dpi
Note: 1,200 dpi scanning is supported only with Network TWAIN and A5 or smaller paper size.
Scan to file types

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high-compression PDF

Scan to email

Protocols
SMTP gateway, TCP/IP, POP, IMAP 4

Authentication

SMTP authentication, POP before SMTP authentication

Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi,
600 x 600 dpi; default 200 x 200 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Scan to folder

Protocols
SMB, FTP

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi,
600 x 600 dpi; default 200 x 200 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan to folder file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

TWAIN scanning

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
100 x 100 dpi–1,200 x 1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.

Fax types
G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
Fax circuit
PSTN, PBX
Fax compatibilty
ITU-T (CCITT), G3—maximum 3 lines
Fax modem speed
2,400 bps–33.6 Kbps—G3, standard with automatic shift down
Fax compression methods
MH, MR, MMR, JBIG
Fax resolution

Standard mode
200 x 100 dpi—8 x 3.85 lines/mm

Detail mode

200 x 200 dpi—8 x 7.7 lines/mm

Super fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: Super fine mode is supported with the optional SAF memory.

G3 fax transmission speed
2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
Fax SAF memory capacity
Standard
4 MB—approximately 320 pages

With optional SAF memory

60 MB—approximately 4,800 pages
Fax memory backup
1 hour
Quick dials
2,000 numbers
Data Overwrite Security System (DOSS) - Standard
Yes
Encryption

HDD, PDF, Secure print, WEP, WPA
Authentication password
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)

Authentication

802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2)
IPv6
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support

Windows

PCL 5c, PCL 6, and PostScript 3
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016

Macintosh
OS X Native v10.11 or later—PostScript 3 only
Unix
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, 4.x, 5.x, 6.x
SCO OpenServer—5.0.7, 6.0
IBM AIX— 6.1, 7.1, 7.2
SAP
Environment—R/3, S/4
SAP R/3 Device Type—supported
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR fonts—OCR A, OCR B
Standard
@Remote Embedded
Web Image Monitor
Optional

@Remote Office
@Remote Enterprise Pro
Java SDK
Card Authentication Package
Device Software Manager
Device Manager NX
Enhanced Locked Print NX
GlobalScan NX
Printer Driver Packager NX
Streamline NX
Customer Support Application for Smart Operation Panel

Mobile apps
Smart Device Connector
Power source
220–240 V, 50/60 Hz—Asia Pacific
110 V, 60 Hz—Taiwan
Power consumption
1,850 W or less—maximum power, Asia Pacific
1,584 W or less—maximum power, Taiwan
837.7 W—operating power, black and white
957.0 W—operating power, colour
59.0 W—Ready Mode
0.62 W—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC)
2.7 kWh
Warm-up time

21 seconds or less—Quick Mode from main switch

Power saving mode

1 minute shift time—Energy Saver Mode (Sleep Mode)

Recovery time

From Energy Saver Mode
0.5 seconds—to Key Operation Ready Mode
8.1 seconds—without Human detection sensor, Asia Pacific
7.9 seconds—without Human detection sensor, Taiwan

Green labels
The Thai Green Label Scheme, Blue Angel Mark (BAM)
Other environmental features
Eco-friendly indicator, On/off timer, Remote Power Off, Default duplex printing, Eco counter, Human detection sensor
