130LHB 190μm Facestock Direct Thermal Paper

  • Intense heat resistance up to 100 celcius degree
  • High resistance to UV-light. High resolution
  • Top and back barrier coated for high reliability
  • Applied for tag, ticket, boarding pass



Ricoh Direct Thermal Paper (No ribbon required)
  Item  Unit Specification Test Method
 Basis weight  g/m2 180 ± 15 JIS P-8124
 Thickness  μm 190 ±15 JIS P-8118
 Tensile strength  MD N/15mm  98.0 min  JIS P-8113
 CD  N/15mm 59.0 min
 Tear strength  MD N 0.88 min  JIS P-8116
 CD N 0.98 min
 Whiteness
 % 70 min JIS P-8123

135PSS-2 W2-ST2 Paper Base

Restriction of Hazardous Substances

 135PSS-2 W2-ST2 Paper Base

Material Safety Data Sheets

 135PSS-2 W2-ST2 Paper Base

Forest Responsibility

 135PSS-2 W2-ST2 Paper Base

BPA Free

 135PSS-2 W2-ST2 Paper Base

Chemicals Standards

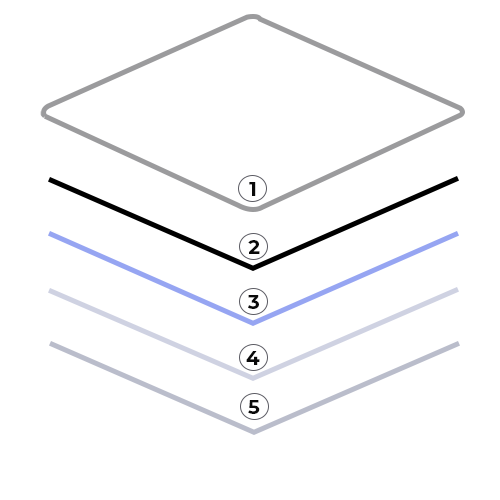

The different layers of our thermal paper

At Ricoh, our thermal papers consists of five different chemical layers that create the unique thermal and protection properties. The following is an overview of these layers. Please note that this overview does not include information on the adhesive layer or the Silicon release liner.


  1. Top coat
    Protection of thermal image. Image preservation and pre-printability
  2. Thermal coat
    Image density, sensitivity, and preservation
  3. Under
    Smoothing coat that determines sensitivity, density and brightness of the image
  4. Basis paper of film
  5. Back coat
    Protection against outside aggressions

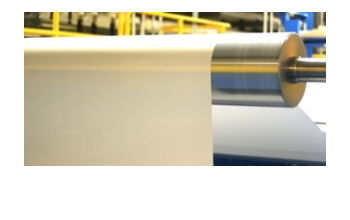

Thermal paper is relatively fragile. Because of this, certain precautions must be followed to prevent any premature deterioration during storage or while handling until the end of its use.


Care in Storage
Before unpacking:

Ricoh Thermal papers can be unused without any deterioration for a long time after production if they are stored in the dark at temperatures that do not exceed 95° F and a relative humidity not exceeding 85%.

After Unpacking:

In addition to the above care, avoid long term exposure to direct sunlight and strong fluorescent light sources. These light sources can generate some background coloration if left unchecked. Do not place Ricoh Thermal paper near heat sources.

Care in Handling

Avoid any contact with materials composed of, or containing, solvents or plasticizer. Avoid/ minimize any scratching or rubbing as this may cause unwanted thermal revelation. Avoid any contact with water.

Applications suitable for:

Image Properties
Item Unit  Specification Test Method
Image color  -  Black Visual inspection
Static maximum density  - 1.30 min Macbeth Densitometer
