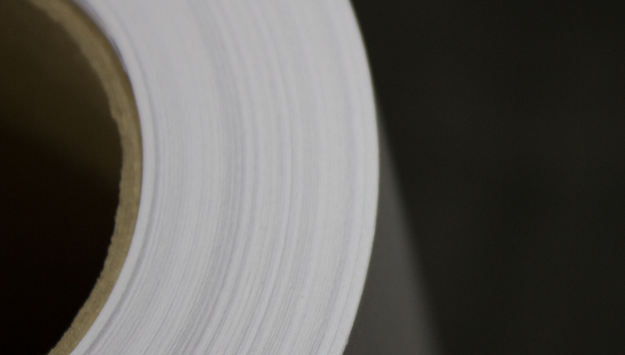

130PSL-1 Facestock Direct Thermal Paper

  • High heat resistance up to 90 celcius degree
  • High resolution. Can print small characters & barcode
  • Applied for POS bill, invoice, parking ticket...



Ricoh Direct Thermal Paper (No ribbon required)
 Item  Unit Specification Test Method
 Basis weight  g/m2 66 ± 7 ISO 536
 Thickness  μm 67 ± 9 ISO 534
 Tensile strength  MD kN/m   2.6 min  ISO 1924
 CD  kN/m  1.3 min
 Tear strength  MD N 0.25 min   ISO 1974
 CD N 0.30 min
 Clark Stiffness MD  28 min   JIS P-8143
 CD  - 10 min
 Whiteness
% 75 min ISO 2470
Smoothness (Face)  s 500 min  Oken type instrument

135PSS-2 W2-ST2  Paper Base

Restriction of Hazardous Substances

 135PSS-2 W2-ST2  Paper Base

Material Safety Data Sheets

 135PSS-2 W2-ST2  Paper Base

Forest Responsibility

 135PSS-2 W2-ST2  Paper Base

BPA Free

 135PSS-2 W2-ST2  Paper Base

Chemicals Standards


The different layers of our thermal paper

At Ricoh, our thermal papers consists of five different chemical layers that create the unique thermal and protection properties. The following is an overview of these layers. Please note that this overview does not include information on the adhesive layer or the Silicon release liner.


  1. Top coat
    Protection of thermal image. Image preservation and pre-printability
  2. Thermal coat
    Image density, sensitivity, and preservation
  3. Under
    Smoothing coat that determines sensitivity, density and brightness of the image
  4. Basis paper of film
  5. Back coat
    Protection against outside aggressions

Thermal paper is relatively fragile. Because of this, certain precautions must be followed to prevent any premature deterioration during storage or while handling until the end of its use.


Care in Storage
Before unpacking:

Ricoh Thermal papers can be unused without any deterioration for a long time after production if they are stored in the dark at temperatures that do not exceed 95° F and a relative humidity not exceeding 85%.

After Unpacking:

In addition to the above care, avoid long term exposure to direct sunlight and strong fluorescent light sources. These light sources can generate some background coloration if left unchecked. Do not place Ricoh Thermal paper near heat sources.

Care in Handling

Avoid any contact with materials composed of, or containing, solvents or plasticizer. Avoid/ minimize any scratching or rubbing as this may cause unwanted thermal revelation. Avoid any contact with water.

Applications suitable for:


Image Properties

Item  Unit Specification Test Method
Image color  -  Black Visual inspection
Static imange sensitivity  - 1.00 min Heat gradient tester 200~160oC
Dynamic image sensitivity  mJ/dot 0.43 max Ricoh standard simulator
