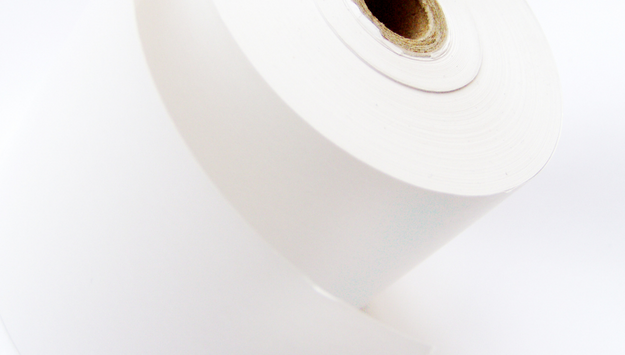

135FSS-L80 Facestock Direct Thermal Synthetic Paper

  • High heat resistance up to 90 celcius degree
  • Plasticizer & alcohol resistance
  • Superior image quality and excellent image preservation
  • Special design for hospital and event wristbands

Ricoh Direct Thermal Paper (No ribbon required)
 Item  Unit Specification Test Method
Basis weight  g/m2 67 ± 5 ISO 536
Thickness  μm 81 ± 5 ISO 534
% 85 min ISO 2470
Smoothness s 1000 min. Oken type instrument

135PSS-2 W2-ST2  Paper Base

Restriction of Hazardous Substances

 135PSS-2 W2-ST2  Paper Base

Material Safety Data Sheets

 135PSS-2 W2-ST2  Paper Base

Forest Responsibility

 135PSS-2 W2-ST2  Paper Base

BPA Free

 135PSS-2 W2-ST2  Paper Base

Chemicals Standards

The different layers of our thermal paper

At Ricoh, our thermal papers consists of five different chemical layers that create the unique thermal and protection properties. The following is an overview of these layers. Please note that this overview does not include information on the adhesive layer or the Silicon release liner.

  1. Top coat
    Protection of thermal image. Image preservation and pre-printability
  2. Thermal coat
    Image density, sensitivity, and preservation
  3. Under
    Smoothing coat that determines sensitivity, density and brightness of the image
  4. Basis paper of film
  5. Back coat
    Protection against outside aggressions

Thermal paper is relatively fragile. Because of this, certain precautions must be followed to prevent any premature deterioration during storage or while handling until the end of its use.

Care in Storage
Before unpacking:

Ricoh Thermal papers can be unused without any deterioration for a long time after production if they are stored in the dark at temperatures that do not exceed 95° F and a relative humidity not exceeding 85%.

After Unpacking:

In addition to the above care, avoid long term exposure to direct sunlight and strong fluorescent light sources. These light sources can generate some background coloration if left unchecked. Do not place Ricoh Thermal paper near heat sources.

Care in Handling

Avoid any contact with materials composed of, or containing, solvents or plasticizer. Avoid/ minimize any scratching or rubbing as this may cause unwanted thermal revelation. Avoid any contact with water.

Applications suitable for:

Image Properties

Item Unit  Specification Test Method
Image color  -  Black Visual inspection
Static maximum density  - 1.10 min Heat gradient tester 200~160oC

Dynamic image sensitivity

 mJ/dot  0.40 max Ricoh standard simulator
