135PSS-2 W2-ST2 Laminated Direct Thermal Paper

  • High heat resistance up to 90 celcius degree
  • Good water and alcohol resistance
  • Preserved images up to 5 years
  • Applied for price labels, milk tea labels, logistics...



Ricoh Direct Thermal Paper (No ribbon required)

 1   Paper Quality Characteristics

Item UnitSpecificationTest Method
Basis weightTotal g/m2 148 ± 14JIS P 8124
Thermal Face73 ± 7
Release Paper 59 ± 5
ThicknessTotal μm137±17 JIS P 8118
Thermal Face  73 ± 9
Release Paper  52 ± 5
Whiteness
%75.0JIS P 8148
Transparency%35.0 min.RICOH Test Method
Release paper color-WhiteBlack

 2   Releasing Ability

 ItemUnitSpecificationTest Method
 Releasing AbilitymN/50mm85min. 245 maxRICOH Test Method

3   Adhesive Properties

 ItemUnitSpecificationTest Method
 Surface tackiness N/25mm14 min.RICOH Test Method
 Holding powersec10.000 min.
 Type Water-based Acrylic

135PSS-2 W2-ST2 Paper Base

Restriction of Hazardous Substances

 135PSS-2 W2-ST2 Paper Base

Material Safety Data Sheets

 135PSS-2 W2-ST2 Paper Base

Forest Responsibility

 135PSS-2 W2-ST2 Paper Base

BPA Free

 135PSS-2 W2-ST2 Paper Base

Chemicals Standards

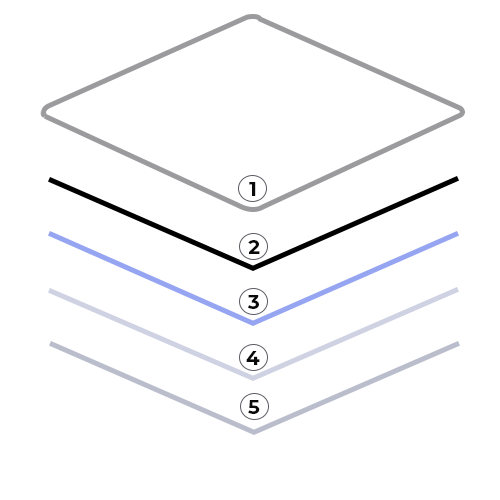

The different layers of our thermal paper

At Ricoh, our thermal papers consists of five different chemical layers that create the unique thermal and protection properties. The following is an overview of these layers. Please note that this overview does not include information on the adhesive layer or the Silicon release liner.


  1. Top coat
    Protection of thermal image. Image preservation and pre-printability
  2. Thermal coat
    Image density, sensitivity, and preservation
  3. Under
    Smoothing coat that determines sensitivity, density and brightness of the image
  4. Basis paper of film
  5. Back coat
    Protection against outside aggressions

Thermal paper is relatively fragile. Because of this, certain precautions must be followed to prevent any premature deterioration during storage or while handling until the end of its use.


Care in Storage
Before unpacking:

Ricoh Thermal papers can be unused without any deterioration for a long time after production if they are stored in the dark at temperatures that do not exceed 95° F and a relative humidity not exceeding 85%.

After Unpacking:

In addition to the above care, avoid long term exposure to direct sunlight and strong fluorescent light sources. These light sources can generate some background coloration if left unchecked. Do not place Ricoh Thermal paper near heat sources.

Care in Handling

Avoid any contact with materials composed of, or containing, solvents or plasticizer. Avoid/ minimize any scratching or rubbing as this may cause unwanted thermal revelation. Avoid any contact with water.

Applications suitable for:


Dynamic Sensitivity

Preservation Properties



How to print direct thermal paper?

The RICOH Advantage
