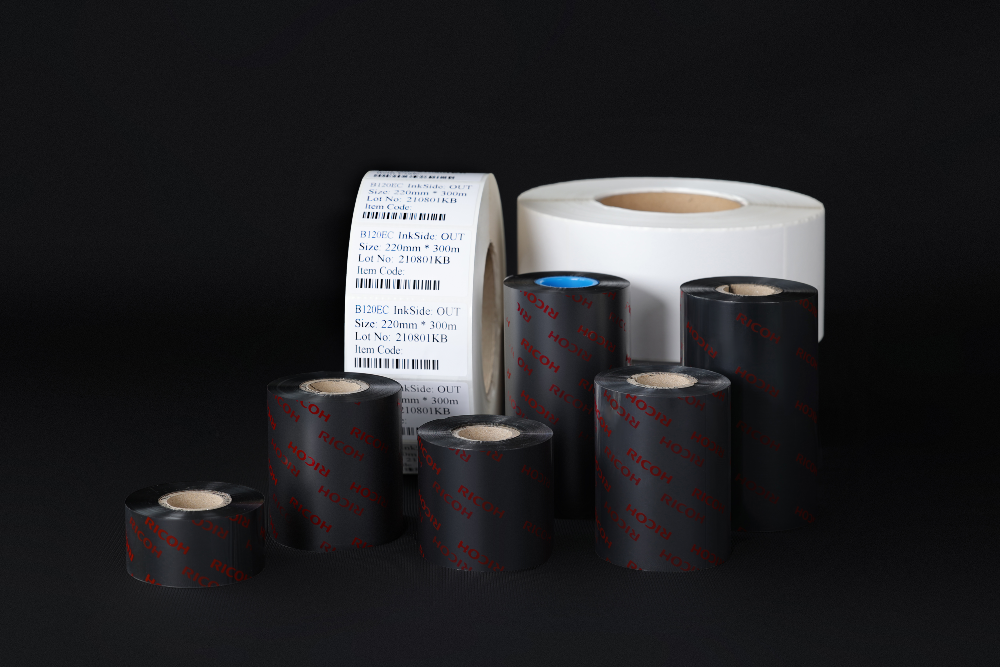

B120EC Multipurpose Resin

  • Higher heat resistance up to 150°C
  • Excellent chemical and solvent resistance
  • Applicable to a wide range of synthetic materials

Ribbon Properties

  • Total ribbon thickness: < 9μm
  • Polyester film thickness: 4.5 μm
  • Friction coefficient:0.045
  • Ink melting point: 97°C
  • Tearing resistance: > 200N/mm²
  • Transmission density: 0.65 mini

Download Datasheet     Request sample roll


 Application



B120EC Durability


Storage Condition

Usage conditions: 5 to 35°C at 30 to 85% of relative humidity.

Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight.

Storage life: 24 months after production.


Printed Image Durability

 TESTSRESULT

 Smear + heat 100°C

Smear with cardboard
(weight 1kg - 50 back & forwards)
 ANSI A
 Heat (150°C)
Heat gradient 3.6kgF/cm²
 No ink on fabric
Scratch
50 back and forwards with a rubbing tester
 ANSI A
Light
Xenon lamp at 650 W/m2
 ANSI A
Water
24 hours in water
ANSI A

***The above data represents product averages, allowing for industry accepted variances. These products should be tested in the end-use conditions to ensure that they meet the requirements of the specific application. Specifications may change without notice.
