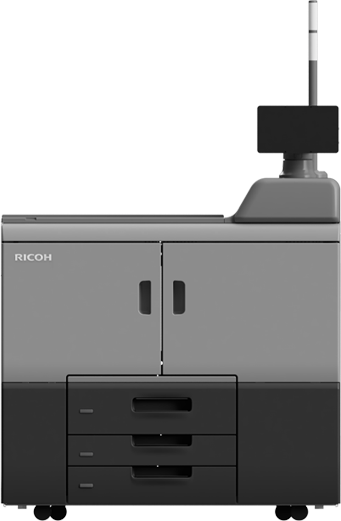

Pro 8410 là máy in sản xuất kỹ thuật số đen trắng khối lượng lớn.

Máy có tốc độ in 111 trang/phút, đi kèm bộ điều khiển GWNX theo tiêu chuẩn và có thể nâng cấp bằng cách thêm bộ điều khiển Fiery EB-36 tùy chọn.

Pro 8410 hỗ trợ kích thước giấy lên đến 330,2 x 700 mm, trọng lượng giấy tối đa là 350 g/m2 và một loạt cải tiến về chất lượng hình ảnh được thiết kế để đẩy nhanh quá trình in kỹ thuật số trong thị trường in ấn sản xuất hiện nay.

Về mặt bền vững, Pro 8410 được chế tạo bằng nhiều nhựa tái chế và thép lò điện hơn, giúp giảm đáng kể tác động đến môi trường và góp phần vào mục tiêu bảo vệ môi trường của khách hàng.

Pro 8410 chủ yếu nhắm đến các Trung tâm dữ liệu (để in giao dịch) và Máy in thương mại.



LCIT RT5160

Optional Large Capacity Input Tray accommodates paper sizes up to A4 and significantly increases the capacity of the device.

Capacity: 5,000 sheets (1,100 sheets x 2 trays, 2,800 sheets x 1 tray)—with 0.1 mm paper thickness
Paper size: A4 LEF, B5 LEF, A5 SEF, A5 LEF
Oversize paper: 305 x 230 mm, needs to be set in SP Mode
Paper weight: 52.3–216 g/m2 (Trays 4 and 5); 52.3–163 g/m2 (Tray 6)
Air assisted paper feed: Not available
Tray security lock: Supported with all trays
Note: ABUS lock T84MB (20 mm) is recommended.
Power source: From mainframe
Power consumption: 224 W
Dimensions (W x D x H): 540 x 730 x 1,000 mm
Weight: 106 kg or less

Note: Coated paper is not supported.

Notes:
Cannot be installed with LCIT RT5170,,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
LCIT RT5160
LCIT RT5170
Optional Large Capacity Input Tray accommodates paper sizes up to 13" x 19.2" and significantly increases the capacity of the device.

Capacity:4,400 sheets (1,100 sheets x 2 trays, 2,200 sheets x 1 tray)— with 0.1 mm paper thickness; 4,000 sheets (1,000 sheets x 2 trays, 2,000 sheets x 1 tray)— with 0.11 mm paper thickness
Paper size: A5 LEF–13" x 19.2"
Custom size: 100–330.2 x 139.7–487.7 mm
Note: Paper narrower than 139.2 mm requires attachment.
Paper weight : 52.3–256 g/m2 (Trays 4 and 6); 40–300 g/m(Tray 5)
Air-assisted paper feed: Supported with all trays
Tray security lock: Supported—all trays
Note: ABUS lock T84MB (20 mm) is recommended.
Active tray indicator LED: Supported
Power source: From mainframe
Power consumption: 324 W or less
Dimensions (W x D x H): 865 x 730 x 1,000 mm
Weight: 185 kg or less
Notes:
Cannot be installed with LCIT RT5160,,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
LCIT RT5170
Multi-Bypass Tray BY5020

Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types.

Capacity: 500 sheets
Paper size: A5–13" x 19.2"
Custom size: 100 x 330.2 x 139.7 x 487.7 mm
Paper weight: 52–216 g/m²
Power source: From mainframe
Paper volume sensors: In 4 steps, near end 0%, 50%, 100%
Dimensions (W x D x H): 690 x 561 x 210 mm
Weight: 20 kg or less

Notes:
One of the following must also be selected: LCIT RT5170,,LCIT RT5160
Multi-Bypass Tray BY5020
Multi-Bypass Banner Sheet Tray Type S9

Extender for Multi-Bypass Tray BY5020 to accommodate oversize prints up to 700 mm in size and up to 216 g/m2 in weight.

Note: SR5000 Series Output Tray For Banner Sheet Type S6 is required for banner sheet output, as this option doesn’t include an output tray for finisher.

Capacity: 500 sheets
Paper size: A5–A3, 13” x 19.2”
Custom size: 100–330.2 x 139.7–700 mm
Note: Simplex printing up to 1,260 mm supported when sheets are fed individually.
Paper weight: 52.3–216 g/m²
Dimensions (W x D x H): 1,090 x 561 x 210 mm
Weight: 9.5 kg or less
Notes:
By choosing this option the Multi-Bypass Tray BY5020 will be added to the configuration.
Cannot be installed with LCIT RT5160
Notes:
Cannot be installed with LCIT RT5160,LCIT RT5170
Vacuum Feed LCIT 5150
Vacuum-Feed Banner Sheet Tray Type S9

Enables feeding of up to 700 mm banner sheet pages for a wider variety of applications. This option is attached to the upper tray of the Vacuum-Feed LCIT RT5150.

Capacity: 730 sheets
Paper size: 210–330.2 mm x 420–700 mm
Paper weight: 52–300 g/m²
Note: Supported paper weight depends on mainframe.
Power source: From LCT
Dimensions (W x D x H): 1,290 x 730 x 1,000 mm—when attached to LCT; 1,290 x 730 x 1,302 mm—with cover open
Weight: 7 kg or less

Notes:
By choosing this option the will be added to the configuration.
Cannot be installed with LCIT RT5160,LCIT RT5170
Vacuum Feed Banner Sheet Tray Type S9
Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCIT RT5150.
Notes:
By choosing this option the ,Multi-Bypass Tray BY5020 will be added to the configuration.
Cannot be installed with LCIT RT5160,LCIT RT5170
A3/11"x17" Tray Unit TK5020

Converts the standard paper input tray from a tandem A4 tray to an A3 tray.

Capacity: 1,000 sheets
Paper size: A4, A3, B4
Paper weight : 52.3–216 g/m2
Dimensions (W x D x H): 490 x 530 x 175 mm
Weight: 11 kg

Booklet Finisher SR5120

Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available.

Capacity: 3,500 sheets (dual shift tray)

Paper size:
Without Z-fold
Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm
330.2 x 1,260 mm—with banner sheet output tray
With Z-fold
Max. 304 x 457 mm, min. 139.7 x 139.7 mm

Paper weight:
Without Z-fold
40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)
With Z-fold
64–105 g/m2
Note: Supported paper weight is dependent on the mainframe.

Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: without Z-fold: 64–80 g/m2; with Z-fold: 64–105 g/m2
Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m2 paper
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 160 kg
Power consumption: 150 W

Notes:
Cannot be installed with Finisher SR5110
Booklet finisher SR5120
Finisher SR5110

Provides 100-sheet stapling and optional hole punching.

Paper size:
Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold
330.2 x 1,260 mm—with banner sheet output tray
Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold

Paper weight:
40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)—without Z-fold
64–105 g/m2 —with Z-fold
Note: Supported paper weight is dependent on the mainframe.

Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: 64–80 g/m2 (without Z-fold); 64–105 g/m2 (with Z-fold)
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 135 kg
Power source: 220–240 V ±10%, 50/60 Hz
Power consumption: 150 W

Notes:
Cannot be installed with Booklet Finisher SR5120,Trimmer Unit TR5050
Finisher SR5110
Punch Unit PU5030 NA

Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages.

Number of punch: 2 or 3 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed

Notes:
Cannot be installed with Punch Unit PU5030 EU
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 EU

Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages.

Number of punch: 2 or 4 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed

Notes:
Cannot be installed with Punch Unit PU5030 NA
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
SR5000 Series Output Tray for Banner Sheet Type S6

Required for banner sheet output for selected Ricoh finishers and booklet finishers.

Capacity: 200 sheets (0.11mm/sheet)
Paper size: width 210–330.2 mm, length 420–700 mm
Paper weight: 52.3–300.0 g/m2

Notes:
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Cover Interposer Tray CI5040

Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.

Capacity: 400 sheets (200 sheets x 2 trays)
Paper height: 22 mm
Paper size: A5–13" x 19.2"
Custom size: 139.7–330.2 mm x 139.7–487.7 mm
Available size: 139.7–1,260 mm (length), 100–330.2 mm (width)
Paper weight: 52.3–350 g/m2 with plain paper; 105.1—350 g/m2 with coated paper
Dimensions (W x D x H): 740 x 730 x 1,350 mm; width for connecting part is 330 mm
Weight: 60 kg
Power source: From mainframe
Power consumption: 110 W, excluding peak consumption

Notes:
One of the following must also be selected: Booklet Finisher SR5120,Finisher SR5110,High Capacity Stacker SK5040
Cover interposer CI5040
Cover Interposer Tray Double-Feed Detection Kit Type S11

When attached to the cover interposer, detects double feeds from the interposer.

Dimensions (W x D x H): 126 x 317 x 56 mm
Weight: 0.4 kg

Notes:
By choosing this option the Cover Interposer Tray CI5040 will be added to the configuration.
Buffer Pass Unit Type S11

Cools down printed paper to prevent toner adhesion or sticking before the paper is stacked or sent to the finishers. Recommended for printing on coated stocks, or with high toner coverage.

Paper size: Same as mainframe
Paper weight: Same as mainframe
Dimensions (W x D x H): 330 x 730 x 1,010 mm
Weight: 90 kg or less
Power source: 220–240 V, 50/60 Hz, 1.5 Amps
Power consumption: 200 W or less

Notes:
One of the following must also be selected: Booklet Finisher SR5120,Finisher SR5110,High Capacity Stacker SK5040
Buffer Pass Unit Type S11
Decurl Unit DU5070

Reduces the natural paper curl that can occur, delivering sheets with optimal flatness. Ideal for applications that are frequently printed with high toner coverage on thin paper and paper with long grain.

Configuration: Optional internal module to be installed in the mainframe
Paper size: 100 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 40–350 g/m2
Decurler functions:
Pressure adjustment
3 steps—from operation panel
Curl type
Back curl, face curl—from operation panel
Dimensions (W x D x H) : 71 x 509 x 181 mm
Weight: 5 kg or less
Power source: From mainframe
Power consumption: 30 W or less

Trimmer Unit TR5050

Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option.

Stacker full detection: Supported
Limitless stack: Supported
Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer.
Power source: External, universal power supply, 100–240 V, 50 Hz
Power consumption: 75 W—average; 250 W—maximum
Dimensions (W x D x H): 1,115 x 591 x 555 mm
Weight: 75 kg

Notes:
By choosing this option the Booklet Finisher SR5120 will be added to the configuration.
Cannot be installed with Finisher SR5110,RPIP Interface Box Type S3
Trimmer Unit TR5050
High Capacity Stacker SK5040

Allows to handle large volume of output and move it with a roll-away cart that is included as standard. Up to 2 stackers can be configured in one system. An additional roll-away cart is available.

Proof tray:
Stack capacity: 250 sheets
Paper size: A6–13" x 19.2"
Paper weight:40–470 g/m2
Note: 487–1,260 mm banner sheet supported when finisher is not attached. Actual supported paper weight is dependent on the mainframe.

Shift tray:

Stack capacity: 5,000 sheets—A4–13" x 19.2"; 2,500 sheets—B5
Paper size: 139.7 x 139.7 mm–331 x 488 mm (13" x 19.2")
Paper weight: 40–470 g/m2
Note: Actual supported paper weight is dependent on the mainframe.

Output jogger: Standard
Roll-away cart: Includes 1 cart. Additional cart is optional.
Door lock: Optional; includes a bracket for the lock
Dimensions (W x D x H): 900 x 730 x 1,010 mm
Weight: 131 kg or less: 135 kg or less with roll-away cart
Power source: 220–240 V, 50–60 Hz, 0.8 Amps
Power consumption: Less than 120 W

Notes:
By choosing this option the Buffer Pass Unit Type S11,Decurl Unit DU5070 will be added to the configuration.
High Capacity Stacker SK5040
Roll-Away Cart Type 5010

An additonal roll-away cart for the High-Capacity Stacker SK5040.

Weight: 15 kg

Notes:
By choosing this option the High Capacity Stacker SK5040 will be added to the configuration.
Multi-Folding Unit FD5020

Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.

Folding types:
Single sheet mode
Z-fold, Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out, Double parallel/print inside, Double parallel/print outside, Gate fold/print inside, Gate fold/print outside
Multiple sheet mode (up to 3 sheets)
Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out
Note: Coated paper is also supported.

Paper size: A4—13" x 19.2"
Paper weight:
64–105 g/m2—single sheet mode
64–80 g/m2—multiple sheet mode

Power source: External, 220–240 V, 50–60 Hz
Power consumption: 240 W or less
Dimensions (W x D x H): 470 x 730 x 1,000 mm
Weight: 92 kg or less

Notes:
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120,High Capacity Stacker SK5040,RPIP Interface Box Type S3
Cannot be installed with Multi-Folding Unit FD5030
Multi Folding Unit FD5020
Multi-Folding Unit FD5030
Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.

Folding types:
Single sheet mode
Half-fold, Z-fold, Letter fold-in, Letter fold out
Multiple sheet mode (up to 3 sheets)
Letter fold-in, Letter fold out

Paper size: A4—13" x 19.2"
Paper weight:
64–150 g/m2—single sheet mode
64–80 g/m2—multiple sheet mode

Power source: 220–240 V
Power consumption: 60 W or less
Dimensions (W x D x H): 209 x 730 x 1,000 mm
Weight: 45 kg or less
Notes:
Cannot be installed with Multi-Folding Unit FD5020
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120,High Capacity Stacker SK5040,RPIP Interface Box Type S3
Folding Unit 5030
Printer Controller EB-36
An external printer controller that provides fast processing speed, outstanding image quality, and time-saving workflow.
Notes:
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120,High Capacity Stacker SK5040
RPIP Interface Box Type S3

Enables the inline connectivity of a Ricoh mainframe with a selected third party finishing option.

Dimensions (W x D x H): 265 x 253 x 136 mm
Weight: 0.55 kg

Notes:
Cannot be installed with Trimmer Unit TR5050
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120,High Capacity Stacker SK5040
IEEE 802.11 a/b/g/n/ac Interface Unit Type M52
Enables WiFi connectivity and wireless printing.
Media Identification Unit Type S3
Used for searching and registering media. Displays media options with similar printing setting characteristics that are already registered in the paper catalog and the customer paper list.
Optional Counter Interface Unit Type M12

Used with external third party counting devices for accounting and charge-back purposes.

Standard inclusions

  • Bảng điều khiển thông minh 10,1"
  • Kích thước giấy lên đến 13" x 19,2"
  • Tối đa 350 g/m2 giấy
  • Giấy biểu ngữ 700 mm
  • Ổ cứng 640 GB

Current configuration

Pro 8410
1141 mm x900 mm x1750 mm (W x D x H)
413 kg
Selected Options:
    Pro 8410

    {"configuratorid":"fcb8b9e9-c1e0-4cdc-b173-1159732101f2","productid":"e80d24ac-7479-48df-8287-4c862bcd0416","edpcode":"409665","productdisplayname":"Pro 8410","width":1141.0,"height":1750.0,"depth":900.0,"weight":413.0,"mainframe_imageurl":"-/media/all-regional/images/product-images/commercial-and-industrial-printing-solutions/cut-sheet/pro-8400s-series/configurators/pro-8410-and-pro-8420-mainframe-v3.png?dmc=0&hash=494639191695B3CDAB963C973AF1794D","configurator_hash":"5ff36401-688e-45ed-befe-6fa7332f06c7","options":{"409658":{"edpcode":"409658","displayname":"LCIT RT5160","extras":[],"width":540.0,"height":1000.0,"depth":730.0,"weight":106.0,"show_image":true,"hide_until_required":false},"409659":{"edpcode":"409659","displayname":"LCIT RT5170","extras":[],"width":865.0,"height":1000.0,"depth":730.0,"weight":185.0,"show_image":true,"hide_until_required":false},"409090":{"edpcode":"409090","displayname":"Multi-Bypass Tray BY5020","extras":[],"width":690.0,"height":210.0,"depth":561.0,"weight":20.0,"show_image":true,"hide_until_required":false},"409099":{"edpcode":"409099","displayname":"Multi-Bypass Banner Sheet Tray Type S9","extras":[],"width":1090.0,"height":210.0,"depth":561.0,"weight":95.0,"show_image":false,"hide_until_required":false},"409510":{"edpcode":"409510","displayname":"","extras":[1,2,3],"width":1054.0,"height":1000.0,"depth":730.0,"weight":230.0,"show_image":true,"hide_until_required":false},"404652":{"edpcode":"404652","displayname":"Bridge Unit BU5010","extras":[1,2],"width":330.0,"height":1000.0,"depth":730.0,"weight":40.0,"show_image":true,"hide_until_required":true},"409095":{"edpcode":"409095","displayname":"Vacuum-Feed Banner Sheet Tray Type S9","extras":[],"width":236.0,"height":0.0,"depth":0.0,"weight":7.0,"show_image":true,"hide_until_required":false},"409096":{"edpcode":"409096","displayname":"Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409338":{"edpcode":"409338","displayname":"A3/11\"x17\" Tray Unit TK5020","extras":[],"width":490.0,"height":175.0,"depth":530.0,"weight":11.0,"show_image":false,"hide_until_required":false},"409252":{"edpcode":"409252","displayname":"Booklet Finisher SR5120","extras":[],"width":1113.0,"height":1490.0,"depth":730.0,"weight":160.0,"show_image":true,"hide_until_required":false},"409251":{"edpcode":"409251","displayname":"Finisher SR5110","extras":[],"width":1113.0,"height":1490.0,"depth":730.0,"weight":135.0,"show_image":true,"hide_until_required":false},"409268":{"edpcode":"409268","displayname":"Punch Unit PU5030 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409269":{"edpcode":"409269","displayname":"Punch Unit PU5030 EU ","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404877":{"edpcode":"404877","displayname":"SR5000 Series Output Tray for Banner Sheet Type S6","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409258":{"edpcode":"409258","displayname":"Cover Interposer Tray CI5040","extras":[],"width":330.0,"height":1350.0,"depth":730.0,"weight":60.0,"show_image":true,"hide_until_required":false},"409259":{"edpcode":"409259","displayname":"Cover Interposer Tray Double-Feed Detection Kit Type S11","extras":[],"width":126.0,"height":56.0,"depth":317.0,"weight":4.0,"show_image":false,"hide_until_required":false},"409263":{"edpcode":"409263","displayname":"Buffer Pass Unit Type S11","extras":[],"width":330.0,"height":1010.0,"depth":730.0,"weight":90.0,"show_image":true,"hide_until_required":false},"409337":{"edpcode":"409337","displayname":"Decurl Unit DU5070","extras":[],"width":71.0,"height":181.0,"depth":509.0,"weight":5.0,"show_image":false,"hide_until_required":false},"409255":{"edpcode":"409255","displayname":"Trimmer Unit TR5050","extras":[],"width":1115.0,"height":555.0,"depth":591.0,"weight":75.0,"show_image":true,"hide_until_required":false},"409094":{"edpcode":"409094","displayname":"High Capacity Stacker SK5040","extras":[1,2],"width":900.0,"height":1010.0,"depth":730.0,"weight":131.0,"show_image":true,"hide_until_required":false},"404218":{"edpcode":"404218","displayname":"Roll-Away Cart Type 5010","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404541":{"edpcode":"404541","displayname":"Multi-Folding Unit FD5020","extras":[],"width":470.0,"height":1000.0,"depth":730.0,"weight":92.0,"show_image":true,"hide_until_required":false},"409513":{"edpcode":"409513","displayname":"Multi-Folding Unit FD5030","extras":[],"width":209.0,"height":1000.0,"depth":730.0,"weight":45.0,"show_image":true,"hide_until_required":false},"409670":{"edpcode":"409670","displayname":"Printer Controller EB-36","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404660":{"edpcode":"404660","displayname":"RPIP Interface Box Type S3","extras":[],"width":265.0,"height":136.0,"depth":253.0,"weight":55.0,"show_image":false,"hide_until_required":false},"423571":{"edpcode":"423571","displayname":"IEEE 802.11 a/b/g/n/ac Interface Unit Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404882":{"edpcode":"404882","displayname":"Media Identification Unit Type S3","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417111":{"edpcode":"417111","displayname":"Optional Counter Interface Unit Type M12","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false}},"rules":[{"condition":{"condition_name":"TrueCondition","trigger_options":["409658"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409659","409510","409095","409099","409096"],"should_validate_after_excute":false,"excludes":["409659","409510","409095","409099","409096"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409659"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409658","409510","409095","409096"],"should_validate_after_excute":false,"excludes":["409658","409510","409095","409096"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409090"]},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409659","409510","409658"],"should_validate_after_excute":true,"require_ones":["409659","409510","409658"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409099"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409090"],"should_validate_after_excute":false,"requires":["409090"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409658"],"should_validate_after_excute":false,"excludes":["409658"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409510"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409658","409659"],"should_validate_after_excute":false,"excludes":["409658","409659"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["409510"],"compare_quantity":1,"comparer":"GreaterThan"},"actions":[{"action_name":"BridgeOptionAction","affect_to_options":["404652"],"should_validate_after_excute":false,"bridge_option":"404652","base_option":"409510"}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409095"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409510"],"should_validate_after_excute":false,"requires":["409510"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409658","409659"],"should_validate_after_excute":false,"excludes":["409658","409659"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409096"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409510","409090"],"should_validate_after_excute":false,"requires":["409510","409090"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409658","409659"],"should_validate_after_excute":false,"excludes":["409658","409659"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409252"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251"],"should_validate_after_excute":false,"excludes":["409251"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409251"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409252","409255"],"should_validate_after_excute":false,"excludes":["409252","409255"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409268"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409269"],"should_validate_after_excute":false,"excludes":["409269"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409269"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409268"],"should_validate_after_excute":false,"excludes":["409268"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404877"]},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409258"]},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409252","409251","409094"],"should_validate_after_excute":true,"require_ones":["409252","409251","409094"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409259"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409258"],"should_validate_after_excute":false,"requires":["409258"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409263"]},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409252","409251","409094"],"should_validate_after_excute":true,"require_ones":["409252","409251","409094"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409255"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409252"],"should_validate_after_excute":false,"requires":["409252"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409251","404660"],"should_validate_after_excute":false,"excludes":["409251","404660"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409094"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409263","409337"],"should_validate_after_excute":false,"requires":["409263","409337"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404218"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409094"],"should_validate_after_excute":false,"requires":["409094"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404541"]},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409251","409252","409094","404660"],"should_validate_after_excute":true,"require_ones":["409251","409252","409094","404660"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409513"],"should_validate_after_excute":false,"excludes":["409513"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409513"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404541"],"should_validate_after_excute":false,"excludes":["404541"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252","409094","404660"],"should_validate_after_excute":true,"require_ones":["409251","409252","409094","404660"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409670"]},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409251","409252","409094"],"should_validate_after_excute":true,"require_ones":["409251","409252","409094"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404660"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409255"],"should_validate_after_excute":false,"excludes":["409255"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252","409094"],"should_validate_after_excute":true,"require_ones":["409251","409252","409094"]}]},{"condition":{"condition_name":"LogicalCondition","trigger_options":["409510","409095"],"logical_operator":"And","sub_conditions":[{"condition_name":"LogicalCondition","trigger_options":["409510","409095"],"logical_operator":"And","sub_conditions":[{"condition_name":"QuantityCondition","trigger_options":["409510"],"compare_quantity":1,"comparer":"Equal"},{"condition_name":"QuantityCondition","trigger_options":["409095"],"compare_quantity":1,"comparer":"Equal"}]}]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409099"],"should_validate_after_excute":false,"excludes":["409099"]}]},{"condition":{"condition_name":"LogicalCondition","trigger_options":["409510","409090"],"logical_operator":"And","sub_conditions":[{"condition_name":"LogicalCondition","trigger_options":["409510","409090"],"logical_operator":"And","sub_conditions":[{"condition_name":"QuantityCondition","trigger_options":["409510"],"compare_quantity":1,"comparer":"GreaterThanOrEqual"},{"condition_name":"QuantityCondition","trigger_options":["409090"],"compare_quantity":1,"comparer":"Equal"}]}]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409096"],"should_validate_after_excute":false,"requires":["409096"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["409094"],"compare_quantity":1,"comparer":"GreaterThan"},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404541","409513"],"should_validate_after_excute":false,"excludes":["404541","409513"]}]}],"affect_group":[["409658","409659","409510","409095","409099","409090","409096","404652"],["409338"],["409252","409251","409255","409268","409269","404877","409258","409094","409259","409263","409337","404660","404541","409513","404218","409670"],["423571"],["404882"],["417111"]],"preselect_configs":{},"min_config":{"must_select_at_least_one_option":false,"requires":[],"requireones":[]}}
