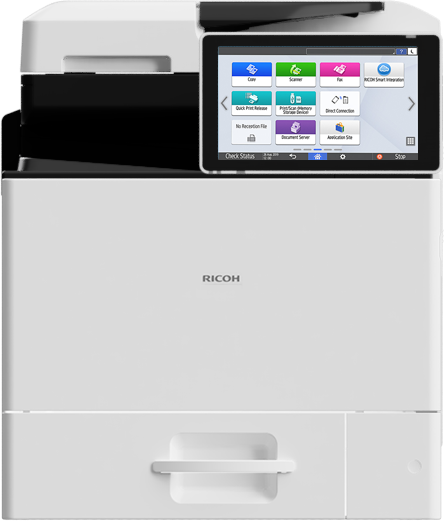

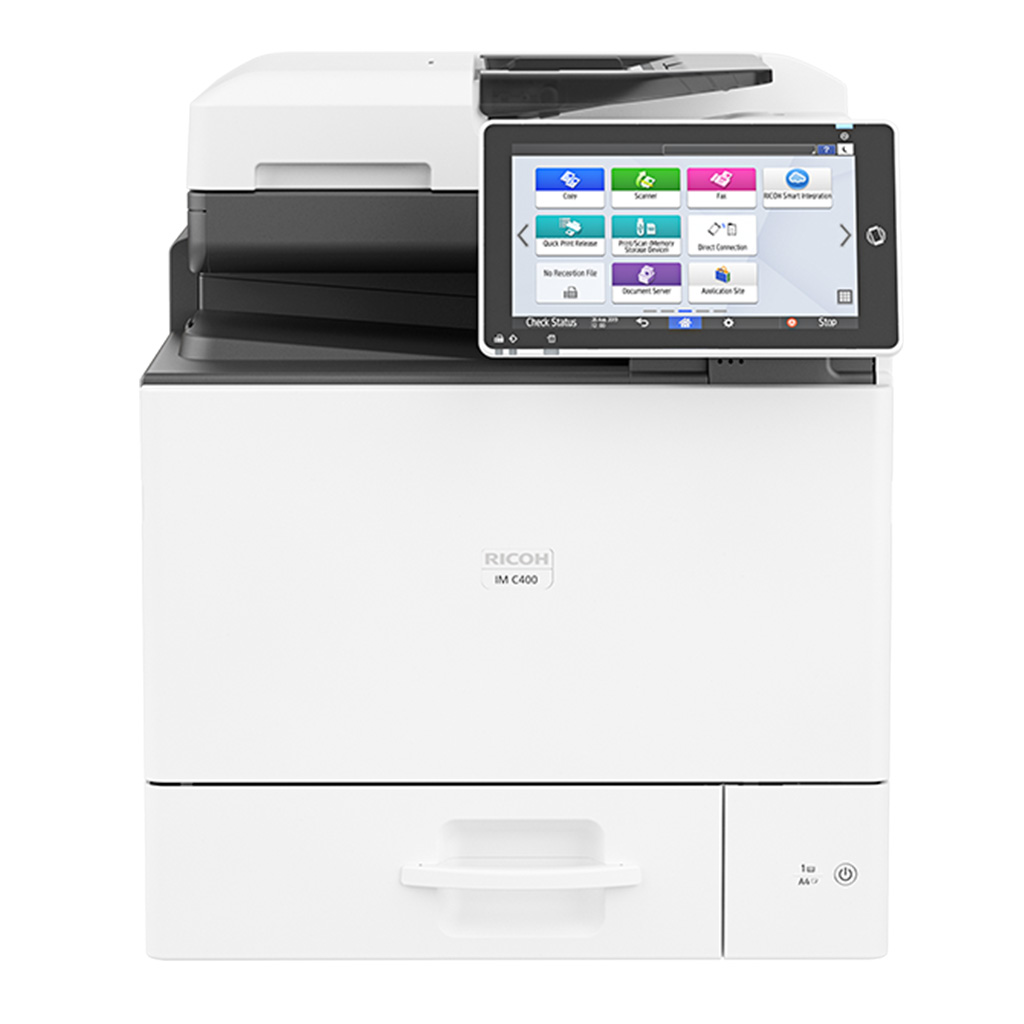

IM C400F

The IM C400F delivers crisp 1,200 x 1,200 output at a speed of 40 ppm in colour and 43 ppm in black and white. It includes a 50-sheet SPDF as standard and supports up to three optional 550-sheet paper feed units for customers in busy work environments.

It also supports a host of the latest Ricoh offerings such as RICOH Always Current Technology, RICOH Smart Integration, and RICOH Intelligent Support, which allow us to meet the ever-evolving needs of customers.

The IM C400F is equipped with the latest Smart Operation Panel (G2.5) which offers smoother touch sensitivity and a revamped Home Screen. It also includes PostScript3 and PDF Direct emulation as standard and improved controller features, allowing customers to produce professional quality documents at no extra cost.

Other notable features are Shiny Materials Mode and higher total document output of 600,000 sheets.

Paper Feed Unit PB1170

Optional 1-tray paper feed unit that increases the paper capacity of the device.

Capacity: 550 sheets
Paper size: A5–A4
Paper weight: 60–163 g/m2
Dimensions (W x D x H): 498 x 552 x 150 mm
Weight: 10.7 kg or less
Power consumption: 17 W or less

Caster Table Type M41

Provides a base with casters (wheels) to easily move the device on a floor standing configuration.

Dimensions (W x D x H): 720 x 707 x 210 mm
Weight: 12 kg

1-Bin Tray BN1040

Collects output from a device and usually fits inside the face-down output tray.

Capacity: 100 sheets
Paper size: A5–A4
Paper weight: 60–163 g/m2
Dimensions (W x D x H): 554 x 482 x 138.5 mm
Weight: 3 kg or less
Power consumption: 1 W or less

Fax Connection Unit Type M41
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax. Supports max 6 sub-connections.
Camera Direct Print Card Type M37
Provides software for optional PictBridge functionality that allows users to plug in a PictBridge-enabled digital camera directly to a printer or MFP.
XPS Direct Print Option Type M41
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
PostScript 3 Unit Type M41
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
OCR Unit Type M13
Scans and creates editable text files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
File Format Converter Type M19
Allows users to save copy and print jobs stored on the document server to a computer.
Cannot be installed with IEEE 1284 Interface Board Type M19,IEEE 802.11a/g/n Interface Unit Type M19,Device Server Option Type M37
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,File Format Converter Type M19,Device Server Option Type M37
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Cannot be installed with IEEE 1284 Interface Board Type M19,File Format Converter Type M19,Device Server Option Type M37
Device Server Option Type M37
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Cannot be installed with IEEE 1284 Interface Board Type M19,IEEE 802.11a/g/n Interface Unit Type M19,File Format Converter Type M19
DataOverwriteSecurity Unit Type M19
Erases the temporary data on the hard disk drive. For customers who require ISO 15408 certification prior to the printer or MFP system being IEEE 2600.1 certified.
NFC Card Reader Type M13
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
Optional Counter Interface Unit Type M12

Used with external third party counting devices for accounting and charge-back purposes.

Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 100 Licence
Supports multilingual data without restrictions.

Standard inclusions

  • 10.1" Smart Operation Panel
  • 320 GB HDD
  • 2 GB RAM
  • 50-sheet SPDF
  • 550-sheet input tray
  • 100-sheet bypass tray

Current configuration

IM C400F
498 mm x 561 mm x 590 mm (W x D x H)
50 kg
Selected Options:
