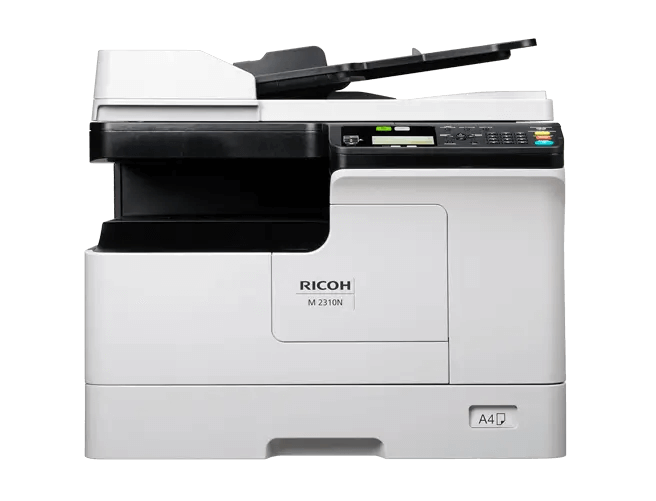

M 2310N

M 2310N

M 2310N cung cấp chức năng in, sao chép và quét A3 với kết nối mạng Ethernet tích hợp trong một thiết kế nhỏ gọn.

Lý tưởng cho môi trường làm việc nhóm chia sẻ, đảm bảo xử lý tài liệu mượt mà với tốc độ 23 trang/phút, chế độ Quét sang USB, Di động và Thư mục tiện lợi, in hai mặt theo tiêu chuẩn và màn hình LCD 4 dòng trực quan. Giá trị Tiêu thụ điện năng điển hình (TEC) chỉ 0,35 kWh và mức sử dụng năng lượng 0,94 W ở Chế độ Ngủ giúp duy trì dấu chân môi trường tối thiểu. Công suất đầu vào tiêu chuẩn 350 tờ (khay tiêu chuẩn + khay phụ) có thể được mở rộng lên 600 tờ thông qua bộ nạp giấy tùy chọn để giảm thiểu việc nạp lại giấy.

Là giải pháp mạng tiết kiệm chi phí, M 2310N có thể được cấu hình bằng nắp đậy trục lăn hoặc Bộ nạp tài liệu đảo ngược tự động (ARDF) để tăng thêm tính linh hoạt.

Lưu ý: Hình ảnh trong Trình cấu hình thiết bị chỉ hiển thị máy chủ lớn với ARDF và khay tiêu chuẩn và không phản ánh bất kỳ tùy chọn bổ sung nào được chọn trong quá trình cấu hình.

Platen Cover PN2020

A cover for the platen glass. No automated feeding to scan and copy documents.

Physical dimensions (W x D x H): 566 x 432 x 32 mm
Weight: 1.4 kg


Notes:
Cannot be installed with ARDF DF2040
ARDF DF2040
Automatic Reversing Document Feeder. Feeds originals one page at a time into a scanner or copier without users having to manually replace each page.

Capacity: 50 sheets—80 g/m2 paper, less than 9.5 mm
Dimensions (W x D x H): 570 x 445 x 88 mm
Weight: 4.5 kg
Power consumption: 40 W or less
Notes:
Cannot be installed with Platen Cover PN2020
Paper Feed Unit PB2080

Optional 1-tray paper feed unit that increases the paper capacity of the device.

Capacity: 250 sheets
Paper size: A5R–A3
Paper weight: 64–80 g/m2
Dimensions (W x D x H): 575 x 565 x 117.3 mm
Weight: 5.5 kg
Power consumption: 0.92 W



Standard inclusions

  • Khay nạp giấy tiêu chuẩn 250 tờ
  • Khay bỏ qua 100 tờ
  • Khay đầu ra 100 tờ
  • 512 MB RAM
  • Bảng điều khiển LCD 4 dòng
  • Kết nối mạng Ethernet

Current configuration

M 2310N
575 mm x565 mm x402 mm (W x D x H)
244 kg
Selected Options:
