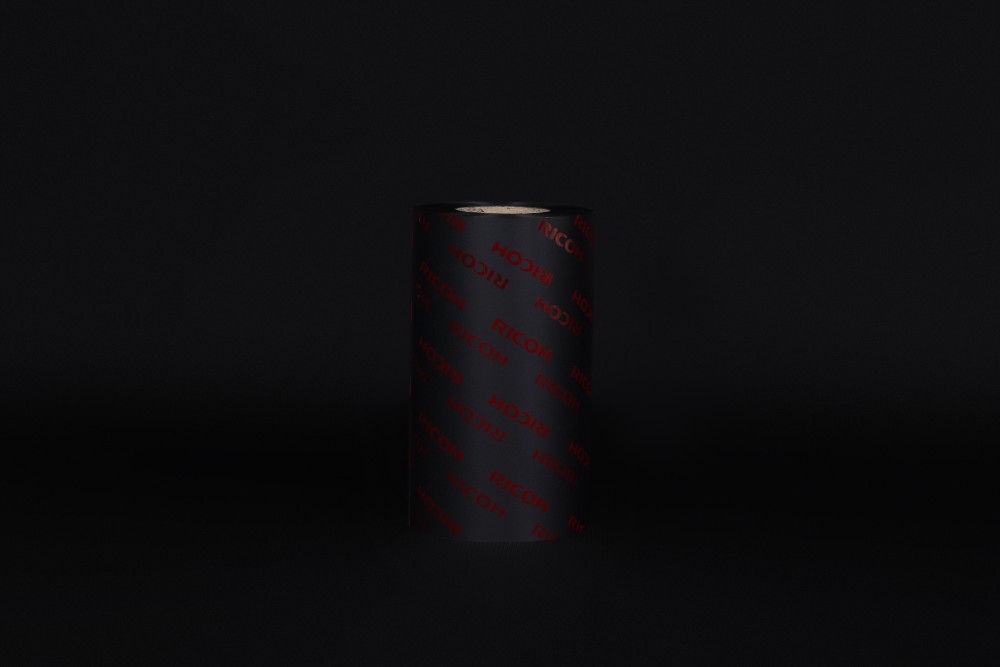

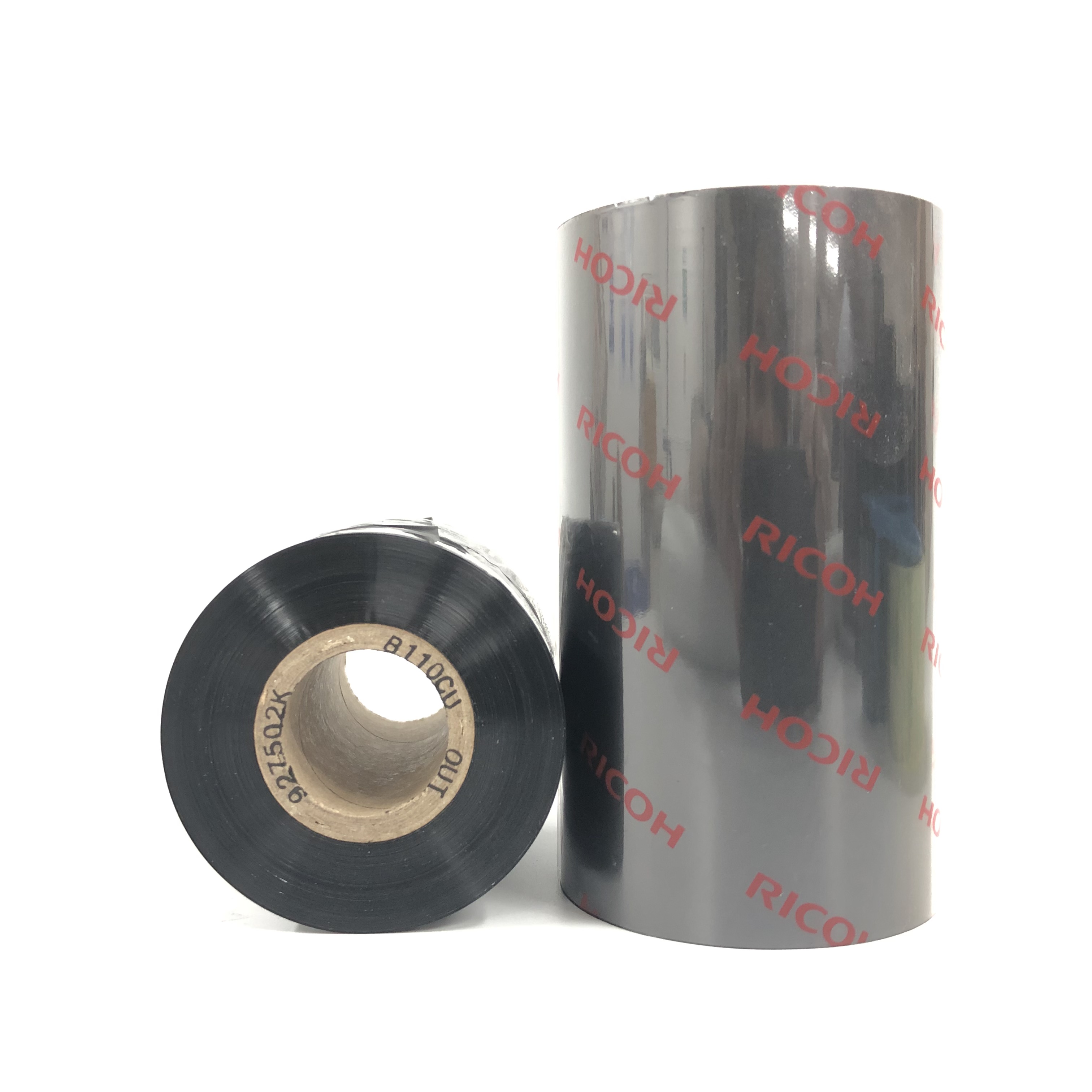

Ribbon B110CU Harsh Environment Resin

  • Ideal for automotive, serial no. plates, circuit board labels and pharmaceutical applications
  • Produce very high resolution even when printing using a 600dpi thermal head
  • Excellent resistance to heat, chemicals, solvents and scratches
  • 100°C corrugated cardboard scratch resistance

Ribbon Properties

  • Total ribbon thickness: < 9 μm
  • Polyester film thickness: 4.5 μm
  • Friction coefficient: < 0.050
  • Ink melting point: 112°C
  • Tearing resistance: > 200N/mm²
  • Transmission density: 0.65 mini

 Application


B110CU Durability


Storage Condition

Usage conditions: 5 to 35°C at 30 to 85% of relative humidity.

Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight.

Storage life: 12 months after production.


Printed Image Durability

 TESTS RESULT

 Smear + heat 100°C

Smear with cardboard
(weight 1kg - 50 back & forwards)
 ANSI A
 Heat (250°C)
Heat gradient 3.6kgF/cm²
 No ink on fabric
Scratch
50 back and forwards with a rubbing tester
 ANSI A
Light
Xenon lamp at 650 W/m2
 ANSI A
Water
24 hours in water
ANSI A

Certificates

TSCA   RoHS   WEEE   REACH   BS 5609 Section III

ISO EN71-3   2003/11/EC   2000/53/EC   76/769/EEC



***The above data represents product averages, allowing for industry accepted variances. These products should be tested in the end-use conditions to ensure that they meet the requirements of the specific application. Specifications may change without notice.
