Pro C7200S Colour production printer

Copy, print, and scan
Prints up to 85 ppm
Up to 360 g/m²
Banner sheet duplex printing

Configure your device here

Grow your business and meet tight deadlines, with affordable, high capacity colour printing

Accept more types of print jobs and meet deadlines easily. The Pro C7200S prints high resolution colour to produce a wide variety of applications.

More opportunities, less cost

Deliver beautiful output on short print runs and appease demanding customers. Print a wider range of jobs with double-sided, oversize printing up to 700 mm in length and on heavy weight stocks up to 360 gsm. The paper library makes sure everything is calibrated and ready to go. Further streamline your workload with inline finishing options, ranging from perfect binding and hole punching to multi folding and ring binding.

More paper, less downtime
Paper capacity can be increased to 16,200 sheets
Print on heavily textured stock
Amaze your customers with impressive coverage and rich appearance on deeply textured stock
Precision that delivers
Maintain precision with high definition imaging and mechanical paper registration
Do it yourself
Handle maintenance issues in house with Trained Customer Replaceable Units (TCRUs) to maximise uptime
Find what you need
Use the paper library to configure jobs for specific media and stocks
Stay in control
Choice of two EFI Fiery controllers or Ricoh TotalFlow controller with direct connectivity to Heidelberg Prinect, Kodak Prinergy or Screen Equios workflows
Scan and send
Scan colour jobs and share them straight from the device for fast review and approval

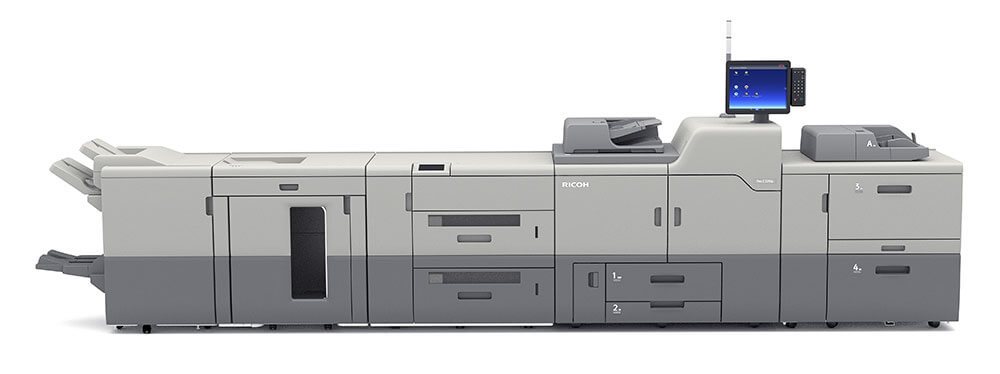

Finish it off in style

Improve turnaround times and increase your print capacity. Ricoh’s line of finishers make it easy to print more types of documents, quickly. Create professional saddle-stitched booklets with minimal effort using the booklet maker, folder and trimmers. Fold media in multiple styles to give customers more options. Collate, bind, punch, trim and add or close rings with minimal manual intervention.

Specifications

Functions: Copy, print, scan
Colour: Yes
Printer controller - standard: GWNX
Printer controller - optional: EFI Fiery colour controller E-46A
EFI Fiery colour controller E-86A
Ricoh TotalFlow Print Server R-62A
HDD: 640 GB (320 GB x 2)
Document server: 640 GB (320 GB x 2) HDD capacity
CPU: 1.91 GHz
Memory - standard: 4 GB
Operation panel: 17-inch touch panel

Physical dimensions (WxDxH)—mainframe

1,320 x 910 x 1,230 mm

Physical dimensions (WxDxH)—other

591 x 520 x 175 mm—SPDF
865 x 730 x 1,000 mm—4,000-sheet LCT RT5110
1,054 x 730 x 1,000 mm—4,400-sheet vacuum-feed LCT RT5120
330 x 730 x 1,000 mm—Bridge unit BU5010
690 x 561 x 210 mm—500-sheet multi-bypass tray BY5020
495 x 530 x 175 mm—1,000-sheet A3 tray Type TK5010
1,290 x 730 x 1,000 mm—730-sheet vacuum-feed banner sheet tray Type S9
1,090 x 561 x 210 mm—500-sheet multi-bypass banner sheet tray Type S9, when attached to multi-bypass tray BY5020
1,688 x 1,286 x 950 mm—BDT VX 370-1280 banner sheet feeder
730 x 1,220 x 1,090 mm—Plockmatic LCT3500
330 x 730 x 1,010 mm—Buffer pass unit Type S9
55 x 485 x 190 mm—Decurler unit DU5060
996 x 730 x 1,126 mm—3,000-sheet finisher SR5050, with all extendable trays closed
996 x 730 x 1,126 mm—2,500-sheet booklet finisher SR5060, with all extendable trays closed
1,115 x 591 x 555 mm—Booklet trimmer TR5040
1,113 x 730 x 1,490 mm—4,500-sheet finisher SR5110
1,113 x 730 x 1,490 mm—3,500-sheet booklet finisher SR5120
1,115 x 591 x 555 mm—Trimmer unit TR5050
740 x 730 x 1,290 mm—Cover interposer CI5040
870 x 730 x 1,010 mm—Ring Binder RB5020
540 x 730 x 1,290 mm—2-tray cover interposer CI5030
470 x 730 x 1,000 mm—Multi-folding unit FD5020
1,090 x 791 x 1,387 mm—Perfect Binder GB5010
900 x 730 x 1,010 mm—High-capacity stacker SK5040
1,200 x 700 x 1,100 mm—Plockmatic high-capacity interposer HCI3500
900 x 680 x 1,060 mm—Plockmatic multi-purpose stacker MPS1260
1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker
265 x 253 x 136 mm—RPIP interface box Type S3

Weight—mainframe

580 kg or less

Weight—other

185 kg or less—4,000-sheet LCT RT5110
230 kg or less—4,400-sheet vacuum-feed LCT RT5120
40 kg or less—Bridge unit BU5010
20 kg or less—500-sheet multi-bypass tray BY5020
10 kg or less—1,000-sheet A3 tray Type TK5010
7 kg or less—730-sheet vacuum-feed banner sheet tray Type S9
9.5 kg or less—Multi-bypass banner sheet tray Type S9
443 kg—BDT VX 370-1280 banner sheet feeder
250 kg—Plockmatic LCT3500
90 kg or less—Buffer pass unit Type S9
5 kg or less—Decurler unit DU5060
112 kg or less—3,000-sheet finisher SR5050
112 kg or less—2,500-sheet booklet finisher SR5060
75 kg or less—Booklet trimmer TR5040
135 kg or less—4,500-sheet finisher SR5110
160 kg or less—3,500-sheet booklet finisher SR5120
75 kg—Trimmer unit TR5050
50 kg—Cover interposer CI5040
140 kg or less—Ring Binder RB5020
45 kg or less—2-tray cover interposer CI5030
92 kg or less—Multi-folding unit FD5020
350 kg or less—Perfect Binder GB5010
120 kg or less—High-capacity stacker SK5040
15 kg or less—High-capacity stacker SK5040 roll-away cart
250 kg—Plockmatic high-capacity interposer HCI3500
65 kg—Plockmatic multi-purpose stacker MPS1260 lift unit
5 kg—Plockmatic multi-purpose stacker MPS1260 docking unit
0.55 kg or less—RPIP interface box Type S3

Minimum space requirements

1,000 mm—front
1,000 mm—left
1,000 mm—right
800 mm—rear

Note: PM parts maintenance tasks require additional rear clearance.

Max monthly volume: 240,000 prints
Machine life: 14,400,000 prints or 5 years, whichever comes first
Duty cycle: 650,000 prints per month
Colour ratio: 80%

Supply yields

45,000 sheets per 1,482 g bottle of black toner
45,000 sheets per 1,482 g bottle of cyan toner
45,000 sheets per 1,482 g bottle of magenta toner
45,000 sheets per 1,482 g bottle of yellow toner

Note: All CMYK toner yields are measured with the A4/8.75% coverage chart, based on 50 pages per job and 80% duplex printing.

136,000 sheets per waste toner bottle

Note: Based on A4/70% colour rate, 35% colour coverage, 6% black and white.

5,000 staples per Type M cartridge for finishers SR5050 and SR5060—normal staple
5,000 staples per Type U cartridge for finisher SR5060—saddle stitch staple
5,000 staples per Type M staple cartridge refill for finishers SR5050 and SR5060—normal staple
5,000 staples per Type T staple cartridge refill for finisher SR5060—saddle stitch staple

75 sets per ring cartridge

Standard input capacity (sheets)

2,500

Maximum input capacity (sheets)

16,200

Maximum output capacity (sheets)

13,000

Paper input configuration - standard

1,000-sheet x 2 paper input tray, 500-sheet paper input tray, duplex unit, 220-sheet SPDF

Paper input configuration - optional

1,000-sheet A3 tray Type TK5010, 4,000-sheet LCT RT5110, 500-sheet multi-bypass tray BY5020, Multi-bypass attachment kit for vacuum feed LCT Type S9, 4,400-sheet vacuum-feed LCT RT5120, 500-sheet multi-bypass banner sheet tray Type S9, 730-sheet vacuum-feed banner sheet tray Type S9, Bridge unit BU5010, BDT VX 370-1280 banner sheet feeder, Plockmatic LCT3500

Paper output configuration - optional

Buffer pass unit Type S9, Decurler unit DU5060, Perfect Binder GB5010, 2-tray cover interposer CI5030, Multi-folding unit FD5020, Ring Binder RB5020, High-capacity stacker SK5040, 2,500-sheet booklet finisher SR5060, Booklet trimmer TR5040, 3,000-sheet finisher SR5050, Punch units PU5020, 3,500-sheet booklet finisher SR5120, 4,500-sheet finisher SR5110, Punch unit PU5030, Trimmer unit TR5050 for booklet finisher SR5120, Cover interposer CI5040

Paper output configuration - 3rd Party

Plockmatic HCI3500 high-capacity interposer, Plockmatic PBM 350 booklet maker, Plockmatic PBM 500 booklet maker, Plockmatic MPS1260 multi-purpose stacker, Plockmatic PBM 5035S long sheet stitcher, Plockmatic PBM 5035 long sheet stapler, Plockmatic SBT Square Back Trimmer, GBC StreamPunch Ultra

Supported media

Standard paper input tray 1
Plain paper, recycled paper, pre-printed, letterhead, pre-punched

Standard paper input tray 2
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock¹

LCT RT5110 trays 3 and 5
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, textured paper

LCT RT5110 tray 4
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, label paper, textured paper

Vacuum-feed LCT RT5120
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, textured paper

Multi-bypass tray BY5020
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², translucent paper

Plockmatic LCT3500
Plain paper, index paper, coated paper, recycled paper

¹—Tab sheet holder option is needed when printing tab stock
²—Tab fence is needed when printing tab stock

Maximum paper size

13" x 19.2"

Media weight (g/m2)

52.3–360

Interfaces - standard: 10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
SD slot x 3—1 on the controller board, 2 on the operation panel
USB 2.0 Type A x 6—2 at rear of machine, 4 on the operation panel
USB 2.0 Type Mini-B x 1—on the operation panel
Network protocols - standard: TCP/IP (IPv4, IPv6)
MIB support: Standard
MIB-II (RFC1213)
Host Resources (RFC1514)
Printer MIB (RFC1759)
Printer Port Monitor MIB

Private
Ricoh original MIB

Copy speed

85 cpm—A4 LEF

Multi-copy speed—A4 LEF
85 cpm—from memory
95 cpm—from SPDF

First copy time

11 seconds—A4 LEF plain paper, face-up from Tray 1 in single-sided mode

Copy resolution

1,200 dpi, 2-bit

Original type

Book, sheet, object

Original size

A3—maximum
A5—minimum

Copy size

A5–A3
Custom size—up to 323 x 480 mm

Full image copy

93% and centring

Quantity selection

1–9,999 sets

Zoom range

25–400%, in 1% steps

Enlargement ratios

115%, 122%, 141%, 200%, 400%

Reduction ratios

93%, 82%, 75%, 71%, 65%, 50%, 25%

Image density adjustment

Automatic selection, manual selection—7 levels

Image density adjustment

Automatic and manual; manual—9 levels

Copy modes

Text, text/photo, photo, map, pale, generation, inkjet, highlight pen

Colour mode

Options
Automatic colour selection, full colour, black and white, single colour, two colour

Single colour
12 colours and black—default
15 colours—user selection

Two colour
Black and other colour, red and black

Paper selection

Tray 1, tray 2, 4,000-sheet LCT RT5110, 4,400-sheet vacuum-feed LCT RT5120, 500-sheet multi-bypass tray BY5020

Automatic paper selection (APS)

Supported

Duplex copy

Single-sided to duplex, duplex to duplex, book to duplex, front and back to duplex

Book copy

Booklet, magazine

Series copy

Book to single-sided, book to duplex, front and back to duplex

Combine copy

2, 4, or 8 pages into 1 single-sided sheet
4, 8, or 16 pages into 1 duplex sheet

Interrupt copy

Standard

Paper library

Supported

User codes

1,000 user codes, 8 digits in each code

Cover sheet

Front and back covers—copy or blank; copy single-sided or duplex

Slip sheet

Copy or blank

Chaptering

Up to 100 chapters

Paper designation

Selectable from 3 trays—up to 100 positions

Stapling

Supported, 4 positions—with finisher

Punch

Supported—with finisher

Electronic sorting

Supported—with finisher

Margin/erase adjustment

Margin—in 1 mm steps
Erase inside, erase outside, erase centre and border

Colour adjustment

Colour balance adjustment, colour balance program, colour registration

Image adjustment

Sharp/soft, contrast, background density, under colour removal, automatic colour selection sensitivity, text-photo separation sensitivity, colour erase sensitivity, automatic colour calibration (ACC)

Stamps

Background numbering—not supported
Page numbering—6 styles
Date stamp—5 styles
User stamp—5 styles
Preset stamp—8 styles
Stamp text—Supported

Image rotation

Supported

Print speed colour

85 ppm

Print speed black and white

85 ppm

Printing process

4-drum dry electrostatic transfer system with internal transfer belt

Printing technology

Vertical-cavity surface-emitting laser (VCSEL)

Fusing

Oil-less belt-fusing method

Toner development

PXP-EQ chemical toner, polymerisation

Print resolution

2,400 x 4,800 dpi—VCSEL

Page description languages (PDLs)

Standard
PCL 5c, PCL 6 (XL), PDF

Optional
Adobe PostScript 3

Printer drivers

Standard
PCL 5c, PCL 6, RPCS

Optional
PostScript 3

Printer driver resolution

PCL 5c
300 x 300 dpi—1-bit
600 x 600 dpi—1-, 2-, and 4-bit; default

Note: Supports font cache for high speed printing.

PCL 6
600 x 600 dpi—1-, 2-, and 4-bit; default
1,200 x 1,200 dpi—1- and 2-bit

Note: Supports font cache for high speed printing.

PostScript 3
600 x 600 dpi—1-, 2-, and 4-bit
1,200 x 1,200 dpi—1- and 2-bit

Note: TrueType and Type 1 fonts supported.

RPCS
600 x 600 dpi—1-, 2-, and 4-bit
1,200 x 1,200 dpi—1- and 2-bit

Note: Supports font cache for high speed printing.

Duplex printing

Standard

Envelope printing

Supported—with optional LCT RT5110 and vacuum-feed LCT RT5120

Fonts

PCL 5c, PCL 6
136 Roman fonts, 13 International fonts

PDF
136 Roman fonts

Maximum printable area

320 x 480 mm
323 x 1,252 mm—with optional banner sheet tray

Fiery controller

Fiery colour controller E-46A or Fiery colour controller E-86A—optional

Printer drivers
Fiery E-46A
PCL 5c, PCL 6, PostScript 3—CPSI v3020 and APPE v4.4

Fiery E-86A
PostScript 3—CPSI v3020 and APPE v4.4

Printer driver fonts
136 fonts and 2MM—PostScript 3
80 fonts—PCL 5c and PCL 6

Fiery menu via operation panel
Supported

Print resolution
1,200 dpi, 2-bit
600 dpi with PCL 5c

Supported file formats
PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS, PCL—Fiery E-46A
PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS—Fiery E-86A

Variable Data Printing (VDP)
PPML v3, Fiery Free Form v1 and v2.1, PDF/VT-1 and PDF/VT-2

TotalFlow

TotalFlow Print Server R-62A—optional

Scan speed

A4 LEF, 200 dpi
Single-sided
120 ipm

Duplex
220 ipm

Scan methods

Scan to email, Scan to folders

Scan mode

Black and white
Text, text/line art, text/photo, photo, greyscale; default text/line art

Colour
Text/photo, photo, Automatic Colour Selection

Scan resolution

100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Scan area

297 x 432 mm

Original size

A5 SEF–A3 SEF, A5–A4 LEF, B5 SEF–B4 SEF, B5 LEF

Custom size

140 x 140 mm—minimum
297 x 432 mm—maximum

File types

TIFF, JPEG, PDF, high-compression PDF

Image density adjustment

Automatic selection, manual selection—7 levels

Scan to email

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP, POP before SMTP, S/MIME

Scan resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

File type
Single page
TIFF, JPEG, PDF, high compression PDF

Multi-page
TIFF, PDF, high compression PDF

Scan to email—other features

Scan to email size
128–102,400 KB—with restriction; default 2,048 KB
725 MB—without restriction

Maximum email addresses per send
500—from HDD
100—direct input
100—via LDAP

Email addresses stored in HDD
Maximum email addresses—2,000
Maximum registered group addresses—500 addresses, 100 addresses per group
Maintain email addresses—via operation panel, SmartDeviceMonitor for Admin, Web Image Monitor
Search method—by name, email address

Body message
Manual input—maximum 80 characters
User pre-registered body message—5 messages, 80 characters over 5 lines
User pre-registered title—maximum 20 characters per name of pre‑registered body message
Preset message—This e-mail includes attached file sent from <device name>.

Input subject
Manual input—maximum 128 characters

LDAP search
Supported

Attention
To, Cc, Bcc

Program registration
Up to 25 programs

Divide and send
Divide by page or size; default by size

Resend
Supported

Scan to folder

Protocols
SMB, FTP

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

File type
Single page
TIFF, JPEG, PDF, high compression PDF

Multi-page
TIFF, PDF, high compression PDF

Scan to folder—other features

Client folder addresses stored in HDD
Maximum registered folder addresses—2,000
Maintain folder addresses—via operation panel, Web Image Monitor

Maximum client folders/PCs per send
50 folders

Maximum group addresses
100 destinations—50 to folder, 100 to email

Maximum file size
Default
2,000 MB in 1 document

When combined with Scan to email
128–102,400 KB; default 2,048 KB—with restriction
725 MB—without restriction

Note: File size depends on the selected Scan to email file size restriction.

Input subject
Not supported

Program user settings
Up to 25 programs

Divide and send
By page or size; default by size

Resend
Yes, No; default Yes

TWAIN scanning—other features

Image adjustment
Brightness, Contrast, Threshold, Gamma Adjustment, Half‑tone Pattern

Endorse
Date, Page number, Text

Stamp originals
Not supported

Supported operating systems
Windows 7, 8.1, 10, Server 2008/2008 R2,Server 2012/2012 R2, Server 2016

TWAIN scanning

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
100–1,200 dpi

Other scan features

SADF/batch mode, Mixed size mode, Thin paper mode not supported

Encryption: Encryption—print and scan data
Encryption of data sent via Scan to email (S/MIME)
Authentication: Simple network security setting
DHCP option 60 and 77
Other security features: Security features are provided by the Ricoh GWNX controller. The Fiery E-46A and Fiery E-86A controller security is based on the EFI Fiery security policy compliant with the EFI Fiery System FS350 Pro.

Standard: @Remote Embedded
Web Image Monitor
Device SDK
Optional: Device Manager NX
InfoPrint Manager
TotalFlow BatchBuilder
TotalFlow Prep
TotalFlow Production Manager
TotalFlow Supervisor
Ricoh ProcessDirector
FusionPro VDP Creator
FusionPro Expression
OL PlanetPress Connect
PrintShop Mail
EFI Digital StoreFront
EFI Graphic Arts Premium Edition
EFI Fiery Central
EFI JobFlow
EFI Impose & Compose

Power source: 220–240 V, 16 A, 50/60 Hz
Power consumption: 5,000 W or less—maximum power
4 W or less—Energy Saver Mode (Sleep Mode)
Power consumption—options: 1,000 W or less—4,400-sheet vacuum feed LCT RT5120
150 W or less—3,000-sheet finisher SR5050
150 W or less—2,500-sheet booklet finisher SR5060
250 W or less, maximum—Booklet trimmer TR5040
75 W or less, average—Booklet trimmer TR5040
150 W or less—4,500-sheet finisher SR5110
150 W or less—3,500-sheet booklet finisher SR5120
250 W or less, maximum—Trimmer unit TR5050
75 W or less, average—Trimmer unit TR5050
95 W excluding peak consumption—Cover interposer CI5040
400 W or less—Ring Binder RB5020
623 W or less—Perfect Binder GB5010
30 W or less—Decurler unit DU5060
240 W or less—Multi-purpose folding unit FD5020
131 W or less—High-capacity stacker SK5040
200 W or less—Buffer pass unit Type S9
Warm-up time: 300 seconds or less—mainframe
380 seconds or less—Perfect Binder GB5010
Sound power level: Mainframe
73 dB—standby
81 dB—operating

Full configuration
73 dB—standby
83 dB—operating
Emission levels: 4.0 mg/h or less—dust
4.0 mg/h or less—ozone
1.8 mg/h or less—styrene
2.0 mg/h or less—formaldehyde
Reduction of environmentally sensitive materials: RoHS
100% lead-free solder used in PCBs—lead
0%—PVC
100% chrome-free steel plates—hexavalent chromium
0%—cadmium
0%—PBB/PBDE
Energy saving standards: Energy Star v2.0—with GWNX, Ricoh TotalFlow Print Server, and EFI Fiery controllers
Safety standards: EN60950-1
IEC60950-1
CNS14336-1
Electromagnetic Compatibility (EMC) standards: EN55032 Class A
EN61000-3-2, EN61000-3-3
EN55024
EN301489-1, EN301489-3, EN301489-17
EN62311
EN50364
CNS13438 Class A
Identification of plastic components: All plastic components that weigh more than 25 g are identified in accordance with ISO 11469 standards.
Laser standards: EN60825-1
IEC60825-1
Wireless LAN standards: EN300328
EN300330
Radio Certificate (NCC)

News & Events

Keep up to date

News

10.00-11.00

29 Sep

Ricoh Live Webinar: Production Printer – Print On Demand Solution

25 Aug

Ricoh Offline Workshop: Enterprise Content Services Platform – DocuWare Implements The “Paperless Office” Model

Marketing events
