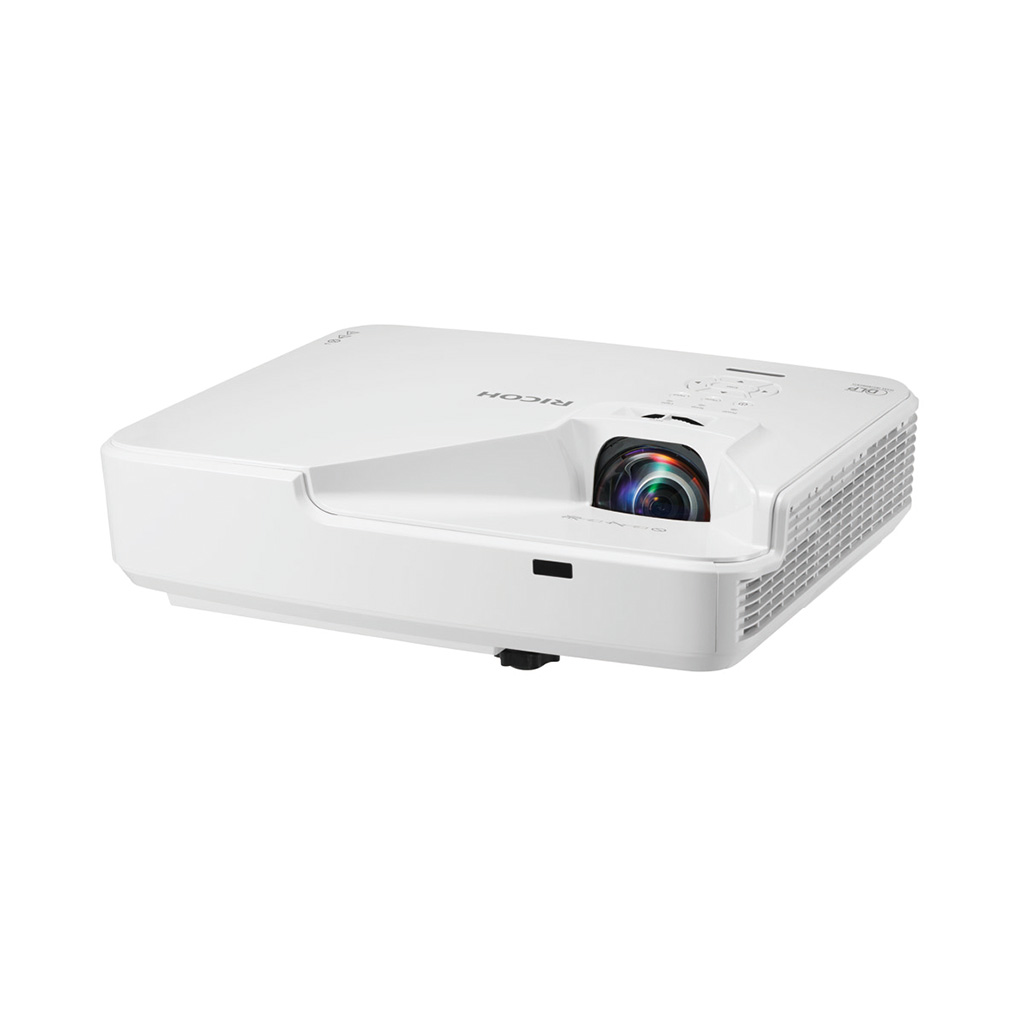

PJ WXL4540 3,000-lumen short throw projector

  • 1,280 x 800 pixels (WXGA)
  • 20,000-hour laser life
  • 69.4–100-inch projection size
  • 10 W speaker
Related Links
From small ideas, big opportunities grow
Events, meetings and exhibitions can drive change. Point a spotlight on your ideas with projectors.

Make a compelling, long lasting impression with short throw projection

Deliver key messages and presentations with portable, laser light technology. The PJ WXL4540 is light enough for easy mounting, or carry from meeting to meeting.

Low maintenance, short throw projection

With its laser light technology, images, movies and presentations can be presented for long periods without the projector overheating. And you’ll never need to replace the lamp while optimising its 20,000 hours of use. Mount on your ceiling, or on the edge of a desk and show movies in wide format. Connect easily to your laptop or DVD players, and enjoy sound with the built in speaker.

  1. Short throw display
    Present from 50 inches from the screen with no shadow
  2. Environmentally friendly
    Laser technology replaces the mercury lamp for less landfill
  3. Connect easily
    A variety of input sources, including HDMI and VGA
  4. Easy to carry
    Compact and easy to travel with at just 5.5 kg

Specifications

Projector type
Short throw laser
What's included

Cables
RGB cable
Power cable

Conversion adaptor
Not available

Remote control
Standard—battery included

Carrier bag
Not available

Lens cap
Standard

Adjuster
Standard

CD-ROM contents
Operating instructions in English and Chinese

Quick start guide
Available

Physical dimensions (WxDxH)—mainframe
383 x 308 x 85 mm
Weight—mainframe
5.5 kg
Projection system
DLP
Contrast
1,800:1—Native Mode
13,000:1—High Contrast Mode
Aspect ratio
16:10
Brightness
3,200 lumens
Resolution
1,280 x 800 pixels (WXGA)
Light source
3.5 W laser x 19 pcs
Light source life
20,000h
Lens focal length
7.15 mm
Lens aperture
2.7
Zoom type
Fixed
Focus method
Manual—vertical ±10°
Colour reproduction
1,073,000,000 colours
Projection size
69.4–100 inches
Projection distance
0.78–1.12 m
Lens shift
Not available
Keystone correction
Manual
Input signals

Analogue RGB signals
WXGA (1,280 x 800)
XGA (1,024 x 768)
SVGA (800 x 600)
VGA (640 x 480)

Analogue RGB frequency
15–91.1 kHz—horizontal
24–85 Hz—vertical

Computer input signals
NTSC, PAL, SECAM, HDTV, EDTV, SDTV

3D support
Yes
Speaker
10 W mono
Other supported features
AV Mute (Blank), Freeze, Resize (Magnify), Digital zoom, Wall colour mode, User logo, Closed captioning, Firmware update (RS232C), High altitude mode
Interfaces - standard
Connection terminals
Mini D-sub 15 pin x 1, HDMI Type A x 2 (computer input)
Mini D-sub 15-pin x 1 (monitor output)
RCA pin jack x 1 (video input)
RCA pin jack x 2 (audio input)
3.5 mm diameter mini jack x 1 (audio input for computer/audio output/microphone)
D-sub 9-pin x 1 (RS-232C) for firmware update
Kensington lock
Yes
Other security features
Security bar
Supported languages
Menu languages
Japanese, English, German, French, Italian, Spanish, Polish, Swedish, Danish, Portuguese, Simplified Chinese, Traditional Chinese, Thai, Indonesian, Norwegian, Turkish, Danish

Operating instructions
English, Chinese—provided on CD-ROM
Power source
100–240 V, 50Hz–60Hz
Power consumption
285 W +/- 15%—Full Mode
185 W +/- 15%—Eco Mode
0.5 W or less—Standby Mode
Sound power level
36dB—Full Mode
32dB—Eco Mode
Environmental standards
Restriction of Hazardous Substances (RoHS)
REACH
EuP (Lot 6)
EuP (Lot19)
Directive 2006/66/EC and 2005/20/EC
WEEE
China Battery Regulation
Taiwan Green Mark
Safety standards
EN60950-1 (TUV Mark)
IEC60950-1 (CB attestation)
BIS (India)
GB4943 (CECP)
Electromagnetic Compatibility (EMC) standards
EN55022
EN55024 (CE)
EN61000-3-2
EN61000-3-3
AS/NZS CISPR22 (RCM)
GB9254, GB17625.1 (CCC)
HKG (EMC)
Operating environment
5–40ºC temperature
5–95% humidity
Other environmental features
Eco Mode
Projection Calculator

Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.

Please click the link to visit the Projection Calculator.
