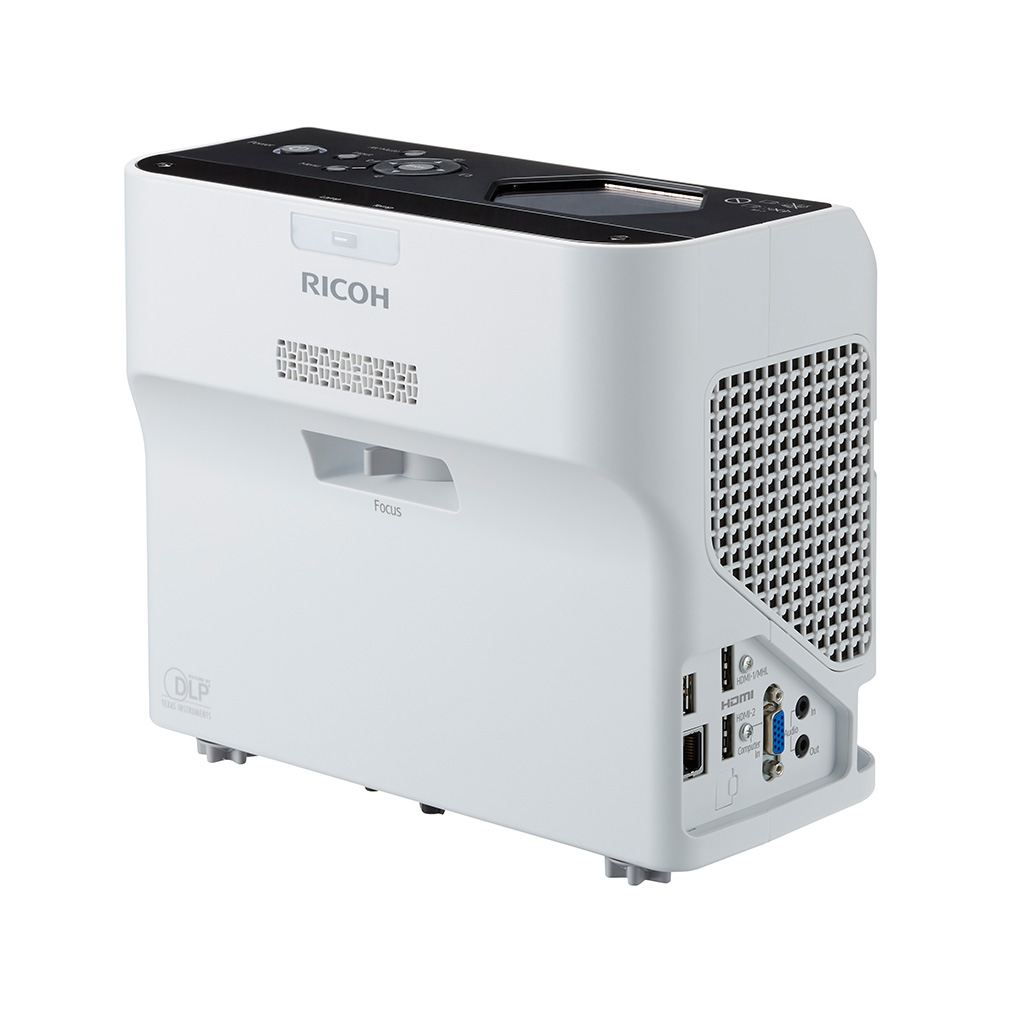

PJ WX4153N 3,500-lumen ultra short throw projector

  • 1,280 x 800 pixels (WXGA)
  • 5,000-hour lamp life (Eco)
  • 48–80-inch projection size
  • Wireless projection

Creative projection in the tightest of spaces

Introducing the world's smallest, lightest and shortest distance ultra short-throw projector*, RICOH PJ WX4153N makes the most of small spaces yet it’s equally impressive on a large-screen video wall. This highly portable 3.1kg projector gives so many options for versatile projections, anywhere.

*As of March 2020 RICOH investigation, in the category of mirror reflection type ultra short throw projectors

Stunning cinematic presentations

Large high-definition displays featuring 1,280 x 800 WXGA resolution, combined with 3,600 lumens and dynamic contrast ratios up to 13,000:1, translate to stunningly bright images with sharp contrast, even in excessive ambient lighting or in sunlit rooms. The lifelike reproduction applies equally to the crystal-clear sound in any space. Choose from multiple audio modes and customize the sound of your presentation to accommodate the room, venue or audience.

  1. Project at angle and surface that you like
    Versatile projection allows you to project downwards onto floors or tables, sideways, or even onto smoked glass surfaces to give every member of your audience the best view every time.
  2. Banish cumbersome cables or network connections
    Improve collaboration and let participants share document and images directly from laptops and mobile devices via wireless LAN connection.
  3. Leave a lasting impression
    Built-in simple blending feature enables you to create a panoramic image to leave a lasting impression on your messages.
  4. Turn your projection into an interactive whiteboard
    Ricoh’s Optional Interactive Kit allows you to build collaboration into every slideshow for dynamic meetings where ideas build on the go.

Contact us

Starting from
  • 1,280 x 800 pixels (WXGA)
  • 5,000-hour lamp life (Eco)
  • 48–80-inch projection size
  • Wireless projection


Projector type
Ultra short throw
What's included

RGB cable (3 m), power cable (3 m), Remote control, 2 x AAA remote control batteries, Safety guide (8 languages), CD-ROM containing Operating instructions in English and Japanese, Carrier bag

Physical dimensions (WxDxH)—mainframe
257 x 144 x 221 mm
3.1 kg
Projection system
2,000:1—Normal mode
13,000:1—High Contrast mode
3,600 lumens
1,280 x 800 pixels (WXGA)
Light source life
3,500h/5,000h (Eco)
Lamp type
High-pressure mercury lamp
Lamp wattage
250 W—Standard Mode
150 W—Eco Mode
Lens type
Zoom type
Digital zoom
Zoom ratio
Focus method
Colour reproduction
1,073,000,000 colours—8-bit
Projection size
48–80 inches
Projection distance
12–25 cm—from screen to the back of the projector
Projection ratio
Keystone correction
90 ±2.5°—vertical, automatic or manual
Projector modes
Ceiling, Auto ceiling, Rear projection, Tabletop—with auto image correction
3D support
DLP Link
Control system
PJLink, Crestron Roomview, AMX Device Discovery, Extron
2 W, mono
Other supported features

Mute (audio and visual), Freeze, IR receiver, Remote ID, 3D format (Auto, Side-by-side, Top and bottom, Frame sequential), User logo, High contrast mode, Power on by AC input, Power on by Signal input, Quick shutdown (30 seconds; 60 seconds on ceiling), Direct AC off, Power save on no signal, Skip input (Auto Input Search), USB display, USB memory projection1, Network projection, Wireless LAN connection2, Miracast, 4-in-1 projection, Power supply to Set Top Box, Video wall up to 3 units with Smart Device Connector, Unique Colour adjustment technology, Interactive Camera Sensor and Pen, Interactive function3

1—File conditions of USB memory projection
2—Based on IEEE 802.11 a/b/g/n with WPA/WPA2-EAP, WPA2-EAP encryption
3—With PJ Interactive Type 3 option, up to four pens can be used simultaneously

Interfaces - standard

Computer 1 In
D-SUB 15 pin x 1 (blue)

Digital terminal
HDMI1/MHL In x 1—HDMI v1.4, MHL v2.1
HDMI2 Type A x 1

Audio In
3.5 mm mini jack x 1

Audio Out
3.5 mm mini jack x 1

USB memory projection
USB Type A

PC control
USB Mini Type B

RJ45 (100 cm cable)

Network capable
Kensington lock
Password protection of device
Wireless LAN network authentication
Other security features
Key lock of device
Supported languages

Menu languages
English, German, French, Italian, Spanish, Portuguese, Swedish, Russian, Romanian, Polish, Japanese, Thai, Traditional Chinese, Arabic, Indonesian, Turkish, Norwegian, Danish, Dutch

Safety guide
Japanese, English, German, French, Italian, Spanish, Portuguese, Russian, Traditional Chinese

User manual
English, German, French, Italian, Spanish, Portuguese, Swedish, Russian, Polish, Japanese, Thai, Traditional Chinese, Turkish, Norwegian, Danish, Dutch

Interactive kit language
English, German, French, Italian, Spanish, Brazilian Portuguese, Swedish, Polish, Japanese, Traditional Chinese, Dutch

Simple multi-projection language
Japanese, English

JPEG conversion software, RICOH QuickProjection software
Japanese, English, German, French, Italian, Spanish, Dutch, Simplified Chinese

Power source
100–240 V, 50/60 Hz
Power consumption
342 W—Typical power consumption in maximum power consumption mode, 3.8–1.8 A (rating plate data)
313 W—Normal operation mode
208 W—Eco Mode
0.3 W—Standby Mode
1.8 W—Wireless Standby Mode
1.4 W—Network (LAN) Standby Mode
Sound power level
38 dB—Standard Mode
32 dB—Eco Mode
Environmental standards
Restriction of Hazardous Substances (RoHS)
RU Battery Directive 2006/66/EC
Packaging and Packaging Waste Directive (94/62/EC)
ErP (Lot 6)
ErP (Lot 19) Directional and LED lamp
Safety standards
CE marking
RPC (Taiwan)
Electromagnetic Compatibility (EMC) standards
EMC Directive
Australia EMC (C-Tick/RCM)
EN62311 (CE)
Wireless LAN standards
RE Directive (2.4 GHz Wireless LAN)
C-Tick/RCM (Australian and New Zealand)
NCC (Taiwan)
Operating environment
5–40ºC—ambient temperature
30–70%—relative humidity
2,500 m—high altitude limit

Note: Brightness will be reduced and fan sound output will increase at more than 36ºC in High Altitude Mode—1,500–2,500 metres.
Other environmental features
Eco Mode, Power save on no signal
Projection Calculator

Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.

Please click the link to visit the Projection Calculator.
