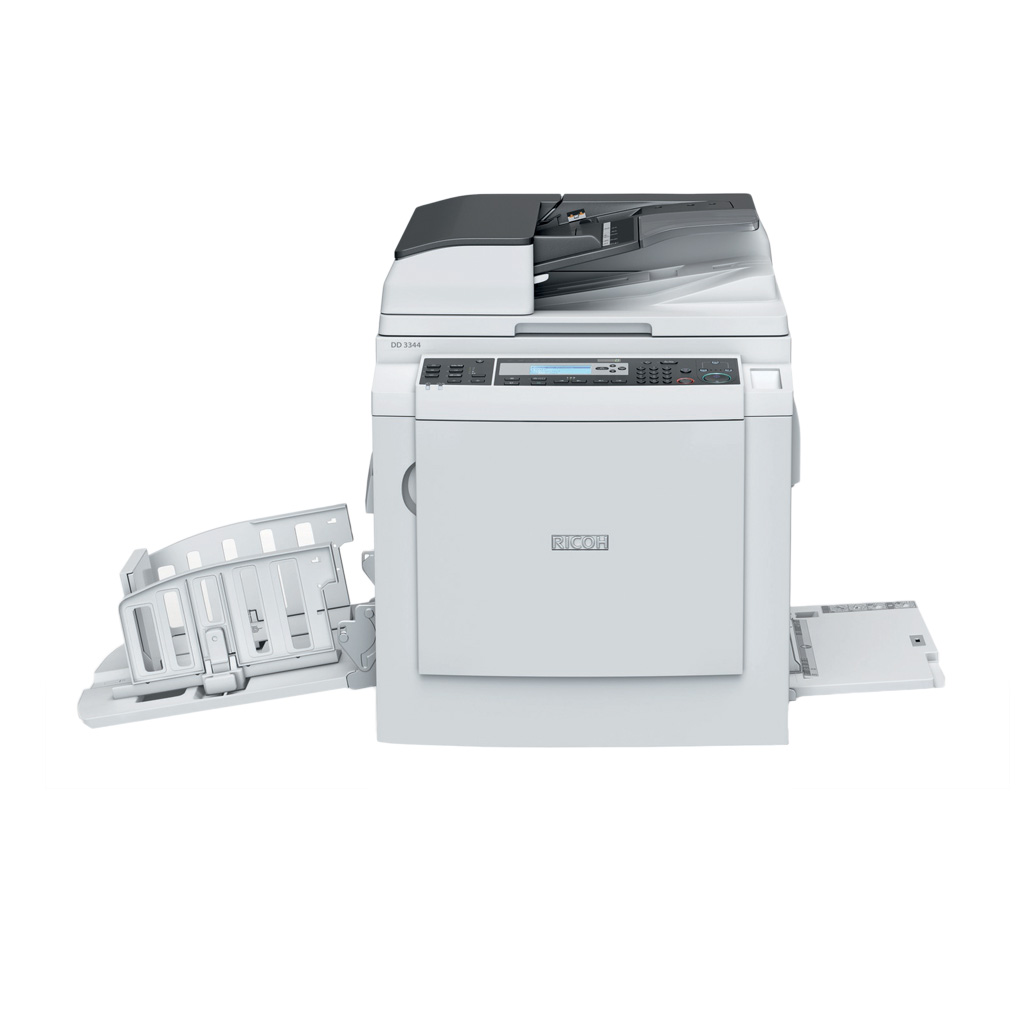

DD 3344 B4 digital duplicator

31-second master processing
130 ppm
300 x 300 dpi
18,000 copies APV

A truly reliable digital duplicator for effective printing

Copy directly from books and magazines to produce high-speed, low-cost A4/B4 copies and prints. Easy-to-use, very economical on the long run and network connectivity available. On top of that, it gives you superior reliability and environmental value.

Outstanding productivity & quality
Exceptional output speed of 130 pages per minute, which helps high-volume printers maximise their productivity.
High environmental rating
Meet the requirements of the International Energy Star program and complying with the standards of Electronic Product Environmental Assessment Tool (EPEAT in USA) environmental rating system, this device has impeccable green credentials.
Reliability
A dependable workhorse, it will keep your everyday operations running smoothly.
Cost savings
Excellent cost per page level. The longer the print run, the lower the individual cost per page.

Specifications

Functions

Copy, optional print

Colour printing supported by using optional colour drums

Colour

Yes

Memory - optional

64 MB on board with Printer unit Type 4545A

Operation panel

4-line LCD

Physical dimensions (WxDxH)—mainframe: 750 x 681 x 670 mm—mainframe with platen cover (paper tray stored)
Weight—mainframe: 69 kg—mainframe with platen cover

Standard input capacity (sheets): 1,000
Maximum input capacity (sheets): 1,000
Standard output capacity (sheets): 1,000
Maximum output capacity (sheets): 1,000
Paper input configuration - standard: 1,000-sheet paper feed tray (64 g/m²), maximum height of 105 mm
Paper output configuration - standard: 1,000-sheet paper delivery tray (64 g/m²)
Maximum paper size: A3
Media weight (g/m2): 47.1–209.3

Interfaces - optional

10Base-T/100Base-TX (Ethernet)
USB 2.0—Host interface

Note: Available with the optional Printer unit Type 4545A.

Copy speed

130 cpm

Controllable in 3 steps—80, 100, 130 cpm
80 cpm—in A3 paper feed mode

First copy time

A4 landscape, no portrait
33 seconds or less—platen glass
34 seconds or less—ARDF

Copy resolution

300 x 300 dpi—standard
300 x 400 dpi—fine mode
600 x 600 dpi—maximum
600 x 600 dpi—scanning

Enlargement ratios

115%, 122%, 141%

Reduction ratios

93%, 87%, 82%, 71%

Book copy

Supported

User codes

Up to 100 codes

Print resolution: 300 x 300 dpi
Printer drivers: RPCS

Authentication: User authentication—user code

Windows: RPCS
Windows Server 2003
Windows Vista
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8
Windows 8.1
Windows Server 2012
Windows Server 2012 R2

Standard: Web Image Monitor

Power source: 220-240 V, 50/60 Hz
Power consumption: 170 W—full configuration
115 W—master processing
140 W—printing (80 ppm)
150 W—printing (100 ppm)
170 W—printing (130 ppm)
29.4 W—Ready Mode
8.7 W—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC): 1.47 kWh
Other environmental features: Energy Saver Mode
