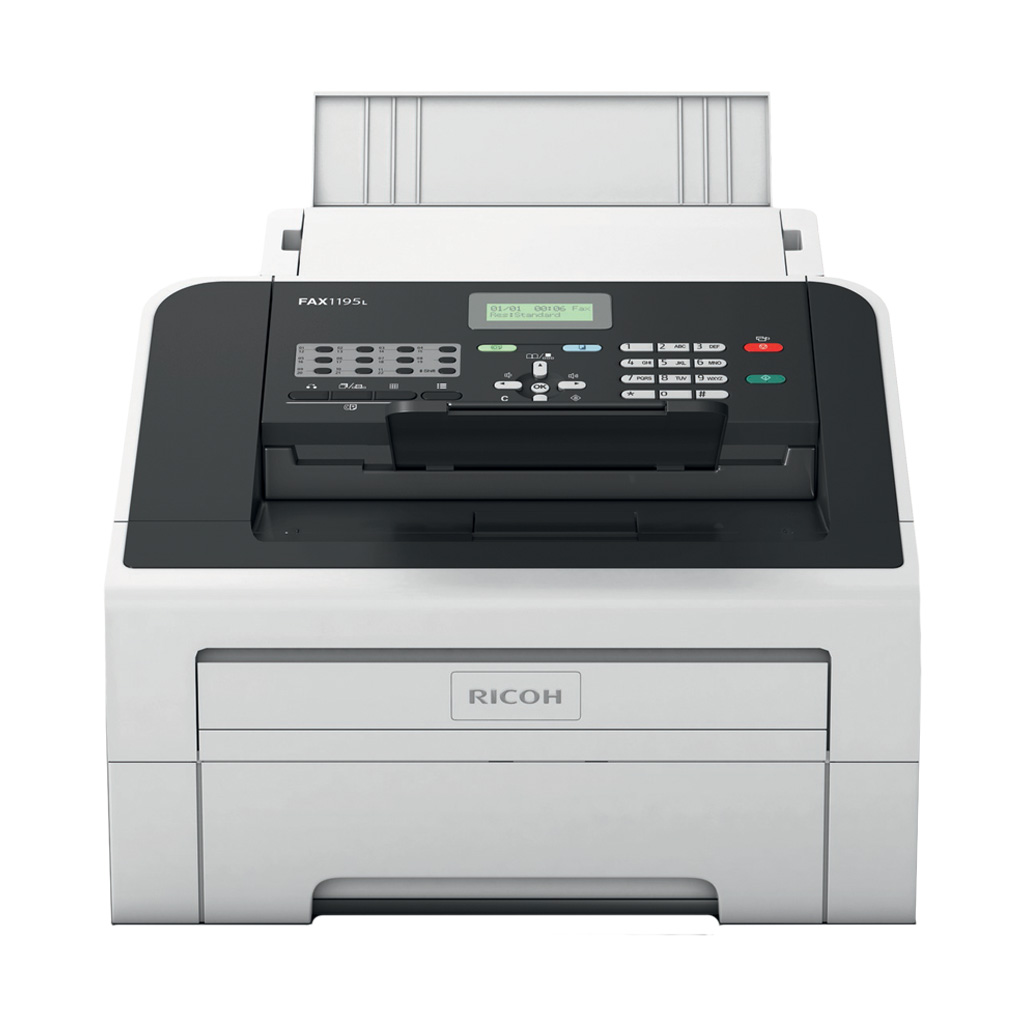

Fax 1195L Super G3 fax with print and copy functions

  • Super G3 fax, print, copy
  • 33.6 kbps modem speed
  • 20 ppm
  • 2.5-second fax transmission

High speed laser fax for environmentally responsible faxing

RICOH Fax 1195L features an attractively designed operation panel that is simple to use. The enhancements to the internal mechanism allow this model to print at a rapid 20 pages per minute, and deliver good image quality.

  1. Printer, copier and scanner functionality, all in one unit
    Double up as a printer, copier and scanner, offering the full range of functionality that a business needs.
  2. Fast printing at 20ppm
    Prints up to 43% faster than the previous model, enabling high-volume documents to be output all at once, hence improve work efficiency and productivity.
  3. Uncluttered, easy-to-use operating panel
    A comprehensive operating panel that comes with two-line LCD, with up to 200 speed dial, 22 one-touch dial and eight group dial, make it easy to send and broadcast a fax.
  4. Outstanding energy-saving performance
    It is ENERGY STAR compliant and operates at a low 360W, consuming as low as 1.5w in energy saving mode.


Fax, copy, print, scan to PC
Memory - standard
16 MB
Operation panel
 2-line LCD
Physical dimensions (WxDxH)—mainframe
368 x 361 x 312 mm
8.2 kg
Standard input capacity (sheets)
Maximum input capacity (sheets)
Standard output capacity (sheets)
Maximum output capacity (sheets)
Paper input configuration - standard
250-sheet input tray, 1-sheet bypass tray, 20-sheet ADF
Paper output configuration - standard
100-sheet face-down paper output tray, 1-sheet face-up paper output tray
Maximum paper size
A4, 215.9 x 406.4 mm—custom
Media weight (g/m2)
Interfaces - standard
High-speed USB 2.0
Copy speed
20 cpm
Copy resolution
300 x 600 dpi
Zoom range
25%–400% in 1% steps
Duplex copy
Not available
Print speed black and white
20 ppm
Print resolution
600 x 600 dpi—standard
600 x 2,400 dpi—high quality
Printer drivers
Scan methods
Scan to PC, black and white only, via USB
Scan resolution
600 x 600 dpi
TWAIN scanning
Fax types
Super G3, PC fax—transmission only
Fax circuit
PSTN, Super G3
Fax compatibilty
ITU-T (CCITT), Super G3
Fax modem speed
Maximum—33.6 kbps
Fax compression methods
Fax resolution
Standard mode
100 x 200 dpi—8 x 3.85 lines/mm

Fine mode
200 x 200 dpi—8 x 7.7 lines/mm

Photo mode
200 x 200 dpi—16 x 7.7 lines/mm

Super fine mode
200 x 400 dpi—8 x 15.4 lines/mm
G3 fax transmission speed
2.5 seconds approximately—JBIG, ITU-T No. 1 chart
Fax memory backup
No time limit—flash memory
Quick dials
One-touch dials
22 locations

Speed dials
200 locations
Windows XP
Windows Vista
Windows 7
Power source
220–240 V, 50–60 Hz
Power consumption
1,080 W or less—maximum power
360 W—operating power
55 W or less—Ready Mode
1.5 W—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC)
1.5 Wh
Warm-up time
7 seconds or less
Recovery time
3 minutes shift time—Energy Saver Mode (Sleep Mode)
7 seconds recovery time—Energy Saver Mode (Sleep Mode)
