Ricoh Image
Back

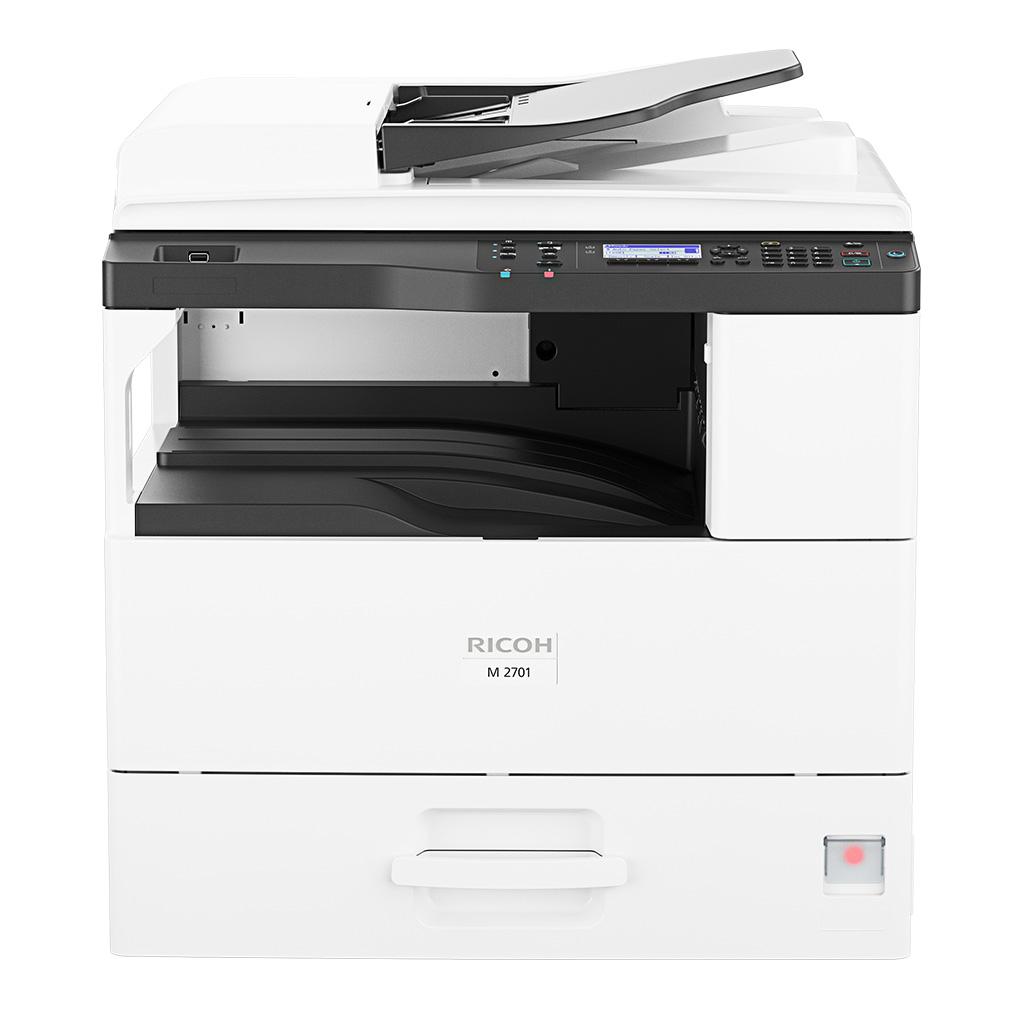

M 2701 A3 black and white MFP

  • Copy, print, scan
  • Prints up to 27 ppm
  • AirPrint® and Mopria® printing
  • ARDF as standard
Configure your device here
Related Links
Realistically affordable
The high performance A3 mono multifunction printer to empower your workplace

High performance A3 mono multifunction printer to empower your workplace

RICOH M 2701 comes with improved functionalities that make it more productive, convenient to connect, and easier to maintain. Some of the main features include a faster 27 pages per minute (ppm) print speed, 512 MB memory, and a 500-sheet standard paper tray, which enable the devices to handle larger and more complex print jobs in a shorter amount of time.

  1. Easy setup and maintenance
    Preassembled PCDU simplifies the process of setting up the device without requiring the support of a technician.
  2. Improved usability and productivity
    Maximum 1,600-sheet paper input capacity enables longer uninterrupted printing.
  3. Security in our DNA
    Document confidentiality can be maintained by suspending print jobs, and only be released when authentication is done at the device.
  4. Connectivity options
    Support Mopria® and Apple AirPrint® which easily and seamlessly print from, or scan to, Android and iOS mobile device.

Specifications

Functions
Copy, print, scan
Colour
No
HDD
Not available
Memory - standard
512 MB
Operation panel
4-line LCD
Physical dimensions (WxDxH)—mainframe
587 x 581 x 639 mm
Weight—mainframe
39 kg or less
Standard input capacity (sheets)
600
Maximum input capacity (sheets)
1,600
Standard output capacity (sheets)
250
Maximum output capacity (sheets)
250
Paper input configuration - standard
500-sheet paper input tray, 100-sheet bypass tray, 50-sheet ARDF
Paper output configuration - standard
250-sheet output tray
Supported media

Standard paper input tray
Thin paper, plain paper 1, plain paper 2, recycled, colour paper, special paper, middle thick paper, prepunched paper, letterhead, bond paper, cardstock

Bypass tray
Thin paper, plain paper 1, plain paper 2, recycled, colour paper, special paper, middle thick paper, prepunched paper, letterhead, bond paper, cardstock, thick paper 1, thick paper 2, label paper, OHP, envelope

Paper banks
Plain paper 1, plain paper 2, recycled, colour paper, special paper, middle thick paper, prepunched paper, letterhead, bond paper, cardstock

Note: Thick paper and OHP are only supported from the bypass tray.
Maximum paper size
A3
Media weight (g/m2)
52–216
Interfaces - standard
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Type B
Interfaces - optional
IEEE 802.11a/b/g/n/ac (Wireless LAN)
Network protocols - standard
TCP/IP
Copy speed
27 cpm
First copy time
6.5 seconds or less—via platen
12 seconds or less—via ARDF
Copy resolution
100 x 100 dpi,150 x 150 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 600 x 600 dpi
Zoom range
25%–400%
Enlargement ratios
115%, 122%, 141%, 200%, 400%
Reduction ratios
93%, 82%, 71%, 50%, 25%
Duplex copy
Standard
Book copy
Not available
ID card copy
Supported
Print speed black and white
27 ppm
First print time
6.5 seconds or less
Print resolution
600 x 600 dpi
Page description languages (PDLs)
GDI
Printer drivers
DDST
Duplex printing
Standard
Mobile printing
AirPrint, Mopria®
Scan speed
18 ipm—black and white
14 ipm—black and white with TWAIN
6 ipm—colour
Scan methods
Scan to email, Scan to folder (SMB), Scan to USB/SD
Colour scanning
Standard
Scan resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 600 x 600 dpi
Scan to file types

Black and white
Single- and multi-page PDF
Single- and multi-page TIFF

Colour
Single- and multi-page PDF
Single-page JPEG

Scan to email

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 600 dpi

Scan to email file types
True colour, greyscale
JPEG, PDF

Black and white
TIFF, PDF

Scan to folder

Protocols
SMB

Security
LANMan 1.0, NTLM v1/v2, GSS API

Resolution
100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 600 dpi

Search for client folders
By name and ID

Scan to folder file types
True colour, greyscale
JPEG, PDF

Black and white
TIFF, PDF

TWAIN scanning

Scan resolution
75 dpi, 100 dpi, 150 dpi, 200 dpi, 300 dpi, 600 dpi

Scan mode
True colour, greyscale, black and white

Authentication
Wireless LAN security (WEP, WPA)
Windows

Windows Server 2008
Windows Server 2008 R2
Windows Vista
Windows 7
Windows Server 2012
Windows Server 2012 R2
Windows 8.1
Windows 10
Windows 2016

Standard

Web Image Monitor

Power source
220–240 V, 50/60 Hz, 8 A
Power consumption
1,480 W—maximum operating
420 W—printing
93 W—Ready Mode
23 W—Low Power Mode
0.97 W—Energy Saver Mode (Sleep Mode)
19 W or less—ARDF
Typical Electricity Consumption (TEC)
1,180 Wh
Warm-up time
19 seconds or less
Power saving mode
30 minutes—Low Power Mode (default)
58 minutes—Energy Saver Mode (Sleep Mode) (default)
Recovery time
10 seconds or less—Low Power Mode
13 seconds or less—Energy Saver Mode (Sleep Mode)
