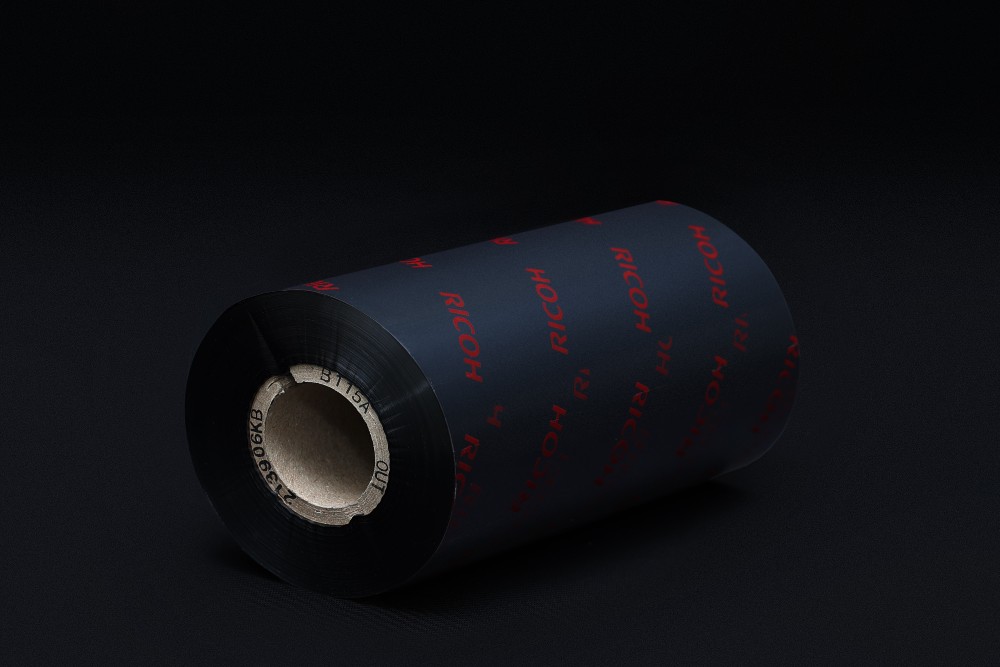

Ribbon B115A Multipurpose Wax Resin

  • High sensitivity
  • Scratch resistance
  • High resolution

Ribbon Properties

  • Polyester film thickness: 4.5 μm
  • Friction coefficient: < 0.035
  • Tearing resistance: > 200N/mm²
  • Transmission density: 1.20 mini

 Application


B115A Characteristic


Storage Condition

Usage conditions: 5 to 35°C at 30 to 85% of relative humidity.

Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight.

Storage life: 12 months after production.


Printed Image Durability

 TESTS RESULT
Scratch resistance    ANSI 3.5A or more
Smear resistance No distortion in image
Other No blocking and satisfies recording characteristics and compatibility after storage of 40℃ for 72 hours

Certificates

TSCA   RoHS   WHMIS   REACH/SVHC   CP65

1272/2008   1907/2006   689/2008   SARA Tile III



***The above data represents product averages, allowing for industry accepted variances. These products should be tested in the end-use conditions to ensure that they meet the requirements of the specific application. Specifications may change without notice.
