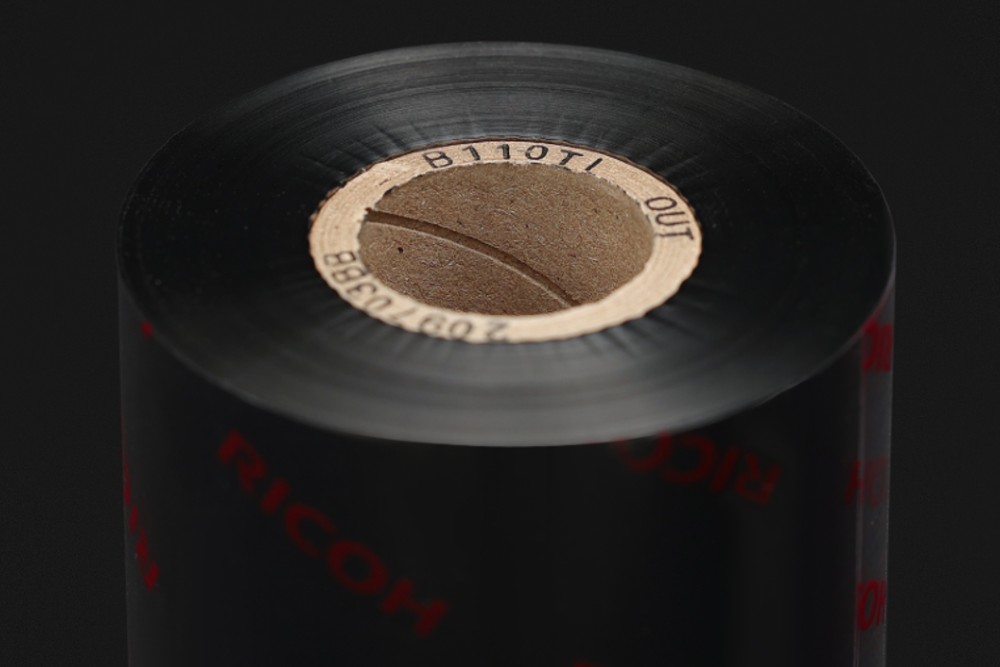

Ribbon B110TI Economical Wax Resin

  • Higher heat resistance up to 110°C
  • Good scratch and smear resistance
  • Applicable to a wide range of receiving labels: paper, top-coated paper, PET/PP/PE/ PVC films

Ribbon Properties

  • Total ribbon thickness: 9 μm
  • Polyester film thickness: 4.5 μm
  • Friction coefficient: <0.035
  • Ink melting point: 84°C
  • Tearing resistance: > 200N/mm²
  • Transmission density: 1.00 mini

 Application


B110TI Durability


Storage Condition

Usage conditions: 5 to 35°C at 30 to 85% of relative humidity.

Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight.

Storage life: 12 months after production.


Printed Image Durability

 TESTS RESULT

 Smear + heat 30°C

Smear with cardboard
(weight 1kg - 50 back & forwards)
 ANSI A
 Heat (110°C)
Heat gradient 3.6kgF/cm²
 No ink on fabric
Scratch
50 back and forwards with a rubbing tester
 ANSI A
Light
Xenon lamp at 650 W/m2
 ANSI A
Water
24 hours in water
ANSI A

Certificates

TSCA   RoHS   WEEE   REACH   (EC) 1935/2004


***The above data represents product averages, allowing for industry accepted variances. These products should be tested in the end-use conditions to ensure that they meet the requirements of the specific application. Specifications may change without notice.
