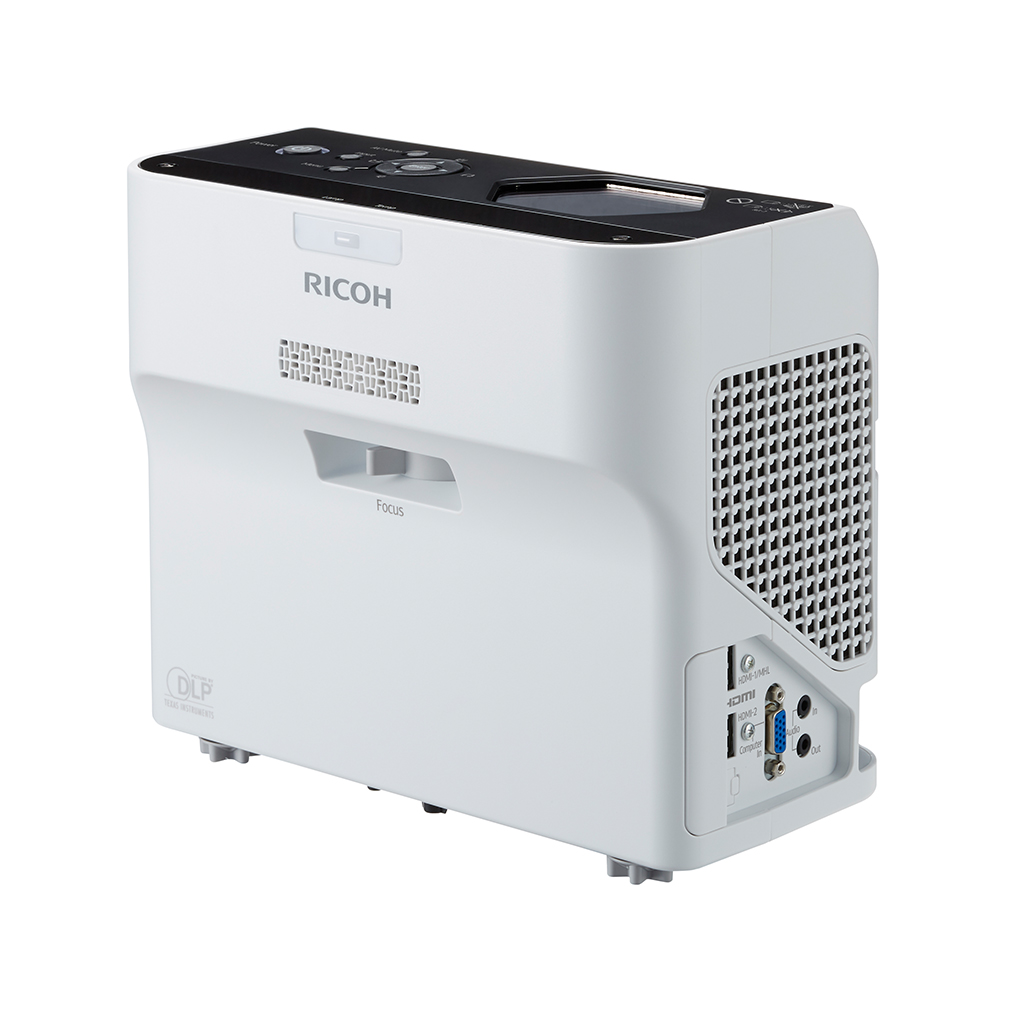

PJ WX4153 3,500-lumen ultra short throw projector

  • 1,280 x 800 pixels (WXGA)
  • 5,000-hour lamp life (Eco)
  • 48–80-inch projection size
  • 3 kg
Related Links
Impressive presentations in small space
Nothing should compromise the quality of your presentations, least of all the space you have to work with.Nothing should compromise the quality of your presentations, least of all the space you have to work with.

Versatile delivery in tight spaces - limited only by your creativity

Introducing the world's smallest, lightest and shortest distance ultra short-throw projector*, RICOH PJ WX4153 makes the most of small spaces yet it’s equally impressive. In small spaces, simply place within centimetres of the display surface to showcase crisp, compelling high-quality presentations, videos, images and more.

*As of March 2020 RICOH investigation, in the category of mirror reflection type ultra short throw projectors

Bring sound and screen to life big time

Large high-definition displays featuring 1,280 x 800 WXGA resolution, combined with 3,600 lumens and dynamic contrast ratios up to 13,000:1, translate to stunningly bright images with sharp contrast, even in excessive ambient lighting or in sunlit rooms. The lifelike reproduction applies equally to the crystal-clear sound in any space. Choose from multiple audio modes and customise the sound of your presentation to accommodate the room, venue or audience.

  1. Bring your presentations to your audience
    Weighing at only 3kg, this portable and lightweight projector allows you to bring it around easily for your next meeting or presentation.
  2. Versatile projection
    Project downward onto floors or tables, sideways, or even onto smoked glass surfaces to give every member of your audience the best view every time.
  3. Present solo seamlessly on the go
    One Touch Access calls up frequently used functions while the handheld remote control gives you easy access to controls from anywhere in the room.
  4. Build collaboration into every slideshow
    Ricoh's Optional Interactive Kit allows you to turn your projection into an interactive whiteboard for dynamic meetings where ideas build on the go.

Contact us

Starting from
  • 1,280 x 800 pixels (WXGA)
  • 5,000-hour lamp life (Eco)
  • 48–80-inch projection size
  • 3 kg

Specifications

Projector type
Ultra short throw
What's included

RGB cable (3 m), power cable (3 m), Remote control, 2 x AAA remote control batteries, Safety guide (8 languages), CD-ROM containing Operating instructions in English and Japanese, Carrier bag

Physical dimensions (WxDxH)—mainframe
257 x 144 x 221 mm
Weight—mainframe
3 kg
Projection system
DLP
Contrast
2,000:1—Normal mode
13,000:1—High Contrast mode
Brightness
3,600 lumens
Resolution
1,280 x 800 pixels (WXGA)
Light source life
3,500h/5,000h (Eco)
Lamp type
High-pressure mercury lamp
Lens type
Mirror-type
Zoom type
Digital zoom
Zoom ratio
80–100%
Focus method
Manual
Colour reproduction
1,073,000,000 colours—8-bit
Projection size
48–80 inches
Projection distance
12–25 cm—from screen to the back of the projector
Projection ratio
0.19:1
Keystone correction
90 ±2.5°—vertical, automatic or manual
Projector modes
Ceiling, Auto ceiling, Rear projection, Tabletop—with auto image correction
3D support
DLP Link
Speaker
2 W, mono
Other supported features

Mute (audio and visual), Freeze, IR receiver, Remote ID, 3D format (Auto, Side-by-side, Top and bottom, Frame sequential), User logo, High contrast mode, Power on by AC input, Power on by Signal input, Quick shutdown (30 seconds; 60 seconds on ceiling), Direct AC off, Power save on no signal, Skip input (Auto Input Search), Interactive function1

1—With PJ Interactive Type 3 option, up to four pens can be used simultaneously

Interfaces - standard

Computer 1 In
D-SUB 15 pin x 1 (blue)

Digital terminal
HDMI1/MHL In x 1—HDMI v1.4, MHL v2.1
HDMI2 Type A x 1

Audio In
3.5 mm mini jack x 1

Audio Out
3.5 mm mini jack x 1

PC control
USB Mini Type B

Kensington lock
Yes
Password protection of device
Yes
Other security features
Key lock of device
Supported languages

Menu languages
English, German, French, Italian, Spanish, Portuguese, Swedish, Russian, Romanian, Polish, Japanese, Thai, Traditional Chinese, Arabic, Indonesian, Turkish, Norwegian, Danish, Dutch

Safety guide
Japanese, English, German, French, Italian, Spanish, Portuguese, Russian, Traditional Chinese

User manual
English, German, French, Italian, Spanish, Portuguese, Swedish, Russian, Polish, Japanese, Thai, Traditional Chinese, Turkish, Norwegian, Danish, Dutch

Interactive kit language
English, German, French, Italian, Spanish, Brazilian Portuguese, Swedish, Polish, Japanese, Traditional Chinese, Dutch

Simple multi-projection language
Japanese, English

JPEG conversion software, RICOH QuickProjection software
Japanese, English, German, French, Italian, Spanish, Dutch, Simplified Chinese

Power source
100–240 V, 50/60 Hz
Power consumption

342 W—Typical power consumption in maximum power consumption mode, 3.8–1.8 A (rating plate data)
313 W—Normal operation mode
208 W—Eco Mode
0.3 W—Standby Mode

Sound power level
38 dB—Standard Mode
32 dB—Eco Mode
Environmental standards
Restriction of Hazardous Substances (RoHS)
EU REACH
RU Battery Directive 2006/66/EC
Packaging and Packaging Waste Directive (94/62/EC)
WEEE
ErP (Lot 6)
ErP (Lot 19) Directional and LED lamp
Safety standards
CE marking
TUV
RPC (Taiwan)
Electromagnetic Compatibility (EMC) standards
EMC Directive
Australia EMC (C-Tick/RCM)
NZ EMC (C-Tick/RCM)
EN62311 (CE)
Operating environment
5–40ºC—ambient temperature
30–70%—relative humidity
2,500 m—high altitude limit

Note: Brightness will be reduced and fan sound output will increase at more than 36ºC in High Altitude Mode—1,500–2,500 metres.
Other environmental features
Eco Mode, Power save on no signal
Projection Calculator

Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.

Please click the link to visit the Projection Calculator.
